Pioneer DEQ-S1000A2
EAN: 4988028457272
DEQ-S1000A2
Pioneer DEQ-S1000A2 DSP
Read More
249,00 €
Description
Specifications
Manuals

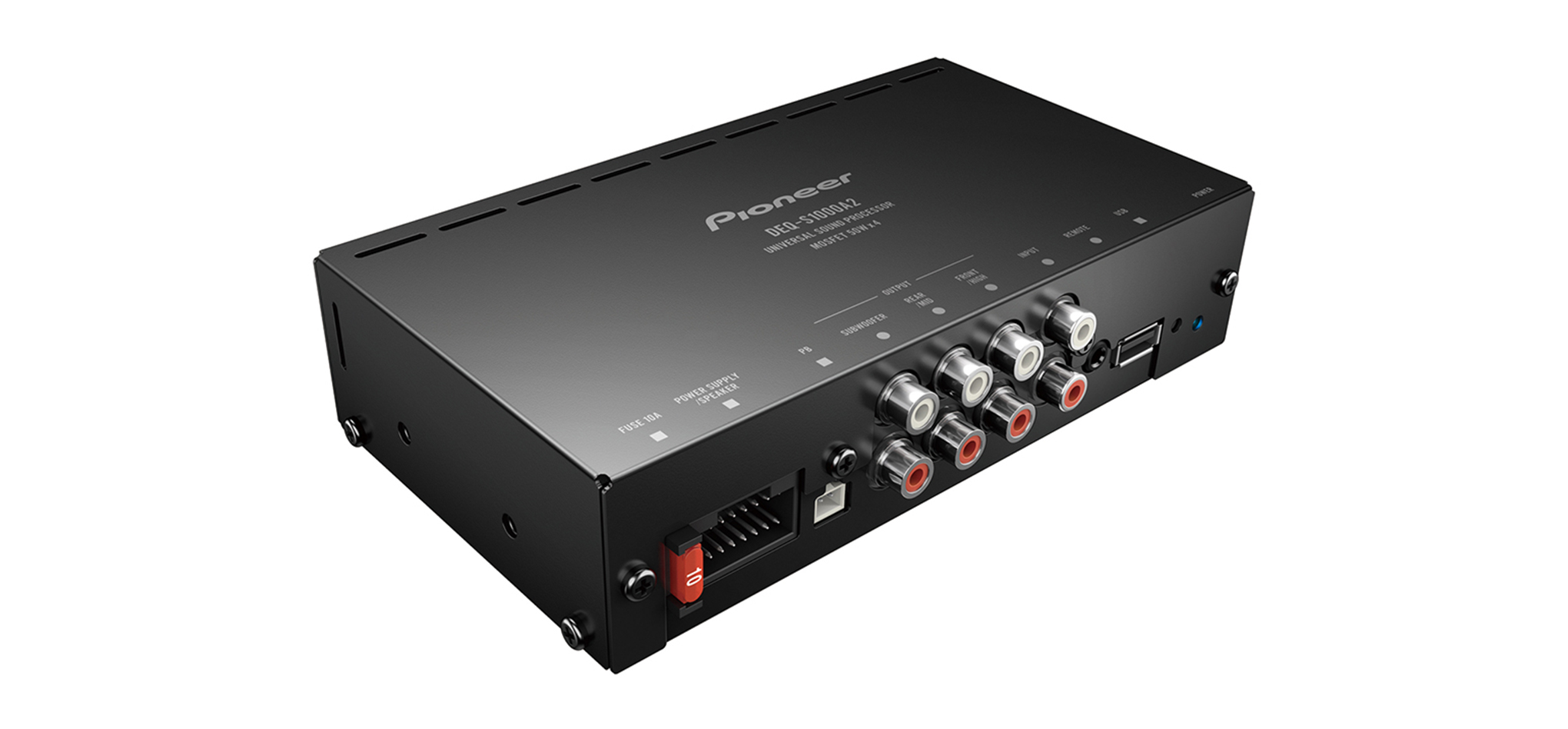

DEQ-S1000A2 on Pioneerin universaali ääniprosessori, joka on suunniteltu päivittämään ajoneuvon tehtaalla asennetut stereot ja kaiuttimet. Koska alun perin asennettua stereota ei tarvitse korvata, asennus* on helppoa. Pienen kokonsa ansiosta se voidaan asentaa pois näkyvistä, mikä tekee asennuksesta siistimmän.
DEQ-S1000A2 käyttää Pioneerin täysin mukautettua tehokasta 48-bittistä kaksiytimistä DSP-prosessoria laadukkaaseen premium-äänentoistoon. Sisäinen kello ja kuvio on viritetty ihanteellisesti. Värinän aiheuttama äänen heikkeneminen on poistettu kokonaan.

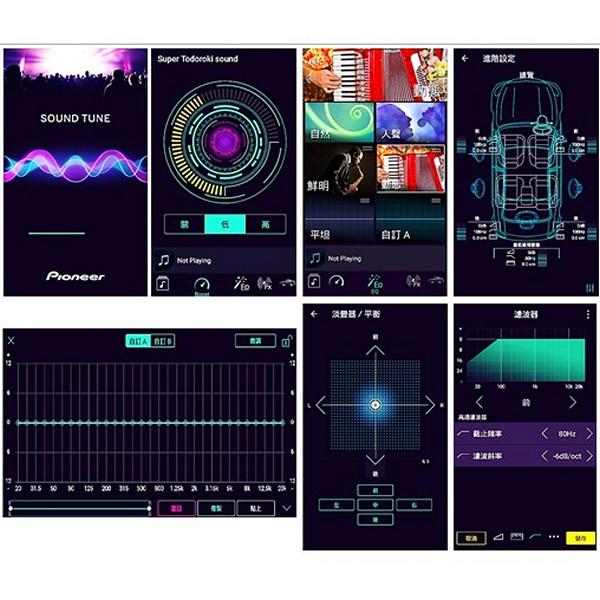

Pioneerin Sound Tune -sovelluksen avulla voit tuoda laadukkaan äänen peruskaiuttimiin. Kaikki toiminnot on helppo suorittaa yhteensopivalla älypuhelimella, ja Sound Tune -sovelluksen avulla pystyy hallitsemaan laajaa valikoimaa asetuksia live-simulointiasetuksista 31-kaistaiseen taajuuskorjaimeen.

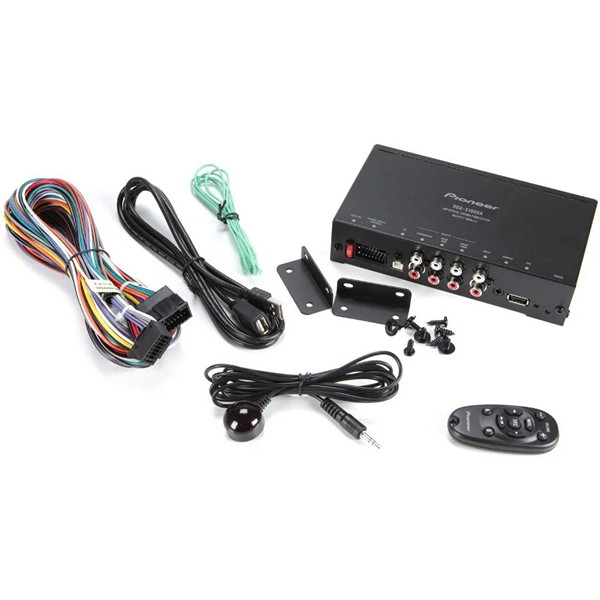

DEQ-S1000A2 tarjoaa helpomman yhdistettävyyden mukana tulevien ISO T-Harness- ja OTG-kaapelien avulla Android-älypuhelinkäyttäjille..
Pioneer Sound Tune App
USB Input1
Accessories1 Remote Control
Maximum power4 x 50 W
2 x 50 W (4Ω) for subwoofer
1 x 70 W (2Ω) for subwoofer
Frequency response10Hz to 20kHz
S/N ratio105 dB
Max. current consumption10 A
Chassis size (W x H x D)170 x 40 x 95
Unit weight0.59
Compact size
RCA terminalsYes
Speaker line input sensorYes
Apple Compatibility
Made for iPhone
Compatible Generations• iPhone X / iPhone 8 / iPhone 8 Plus
• iPhone 7 / iPhone 7 Plus / iPhone SE
• iPhone 6s / iPhone 6s Plus / iPhone 6 / iPhone 6 Plus
• iPhone 5s / iPhone 5c / iPhone 5
Supported Functions• Battery charging
• Music playback
Android Compatibility
Compatible with Android
Quick Charge for Android
Audio
13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
Network Mode3-Way Network Mode
Listening Position Selector
Manual TA (Time Alignment)
High Pass Filter
Low Pass Filter
Subwoofer Control
RCA Pre-Outs3. (Front, rear and subwoofer)
High Voltage Output (4Volt)
Advanced Audio FeaturesExclusive Designed Audio Parts.
Source Calibration, (Factory Time Alignment and EQ Cancel).
31-Band Graphic EQ When Used With Pioneer Sound Tune App.
Live Simulation When Used With Pioneer Sound Tune App.
FLAC
Connections
Hand Held Remote ControlIncluded
POWER SOURCE 14.4V DC
(10.8-15.1V allowable)
GROUNDING SYSTEM Negative type
MAX. CURRENT CONSUMPTION 9.2A
DIMENSIONS 170(W) x 40(H) x 95(D)mm
FUSE 10A
WEIGHT 0.59kg
MAX POWER 50W x 4
50Wx2ch/4Ω + 70Wx1ch/2Ω (for SUB-WOOFER)
CONTINUOUS POWER 22W x 4
(50Hz to 15kHz, 5%THD, 4Ω LOAD, Both Channels Driven)
LOAD IMPEDANCE 4Ω
(4 - 8Ω(2Ω for 1ch) allowable)
PREOUT OUTPUT LEVEL (MAX) 4.0V
IMPEDANCE 250Ω
FREQUENCY RESPONSE 10Hz to 20kHz (+0dB , -1dB)
S/N RATIO 105dB
THD 0.01%
EQUALIZER (13BAND GRAPHIC EQUALIZER)
FREQUENCY 50Hz, 80Hz, 125Hz, 200Hz, 315Hz, 500Hz
800Hz, 1.25kHz, 2kHz, 3.15kHz, 5kHz, 8kHz, 12.5kHz
GAIN ±12dB(0.1dB step)
SPEAKER SETTING
STANDARD MODE
FRONT/REAR (HPF)
FREQUENCY
50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
SUB WOOFER (LPF)
FREQUENCY
50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
GAIN -24 - +10dB (1dB/Step)
PHASE NORMAL/REVERSE
SPEAKER LEVEL -24 - +10dB (1dB/Step)
TIME ALIGNMENT 0cm - 350cm (2.5cm/step)
NETWORK MODE
HIGH (HPF) FREQUENCY 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz
4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
SLOPE -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
MID (LPF) FREQUENCY 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz
4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
MID (HPF) FREQUENCY 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz
100Hz, 125Hz, 160Hz, 200Hz, 250Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
SUB WOOFER (LPF)
FREQUENCY 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz
100Hz, 125Hz, 160Hz, 200Hz, 250Hz
SLOPE 0dB(Pass), -12dB/oct, -18dB/oct
-24dB/oct, -30dB/oct, -36dB/oct
GAIN -24 - +10dB (1dB/Step)
PHASE NORMAL/REVERSE
SPEAKER LEVEL -24 - +10dB (1dB/Step)
TIME ALIGNMENT 0cm - 350cm (2.5cm/step).
