MATCH UP 6DSP

MATCH UP 6DSP
Efficiency excellence for tailored OEM Integrations
The new UP 6DSP is a true all-rounder that not only delivers power and dynamics for authentic hi-fi sound but also provides all the necessary features for an effortless integration into the vehicle.

The perfect upgrade for standard sound systems
Equipped with six highlevel inputs, an optical digital input and the MATCH Extension Card Slot, the UP 6DSP masters the challenge of a seamlessly integrating into existing standard sound systems. Thanks to the innovative ADEP.3 circuit as well as six amplifier channels and an additional preamplifier output, the powerful 7-channel DSP allows for individual speaker configurations. The amplifier′s power even brings larger subwoofers to life, with two of its output channels delivering impressive 160 W at 2 Ohms – ideal for particularly power-hungry speakers.

Virtual Channel Processing – this is how signal routing works today
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 6DSP is also equipped with Audiotec Fischer′s innovative virtual channel processing.
Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits in terms of implementation and usability. The multi-stage ″Virtual Channel Processing″, in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to the same number of input and amplifier channels the UP 6DSP is also a prime example for applications where 1 to 1 routing (IOR) makes sense.

ACO – Advanced 32 Bit CoProcessor platform
Of course, the UP 6DSP is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.

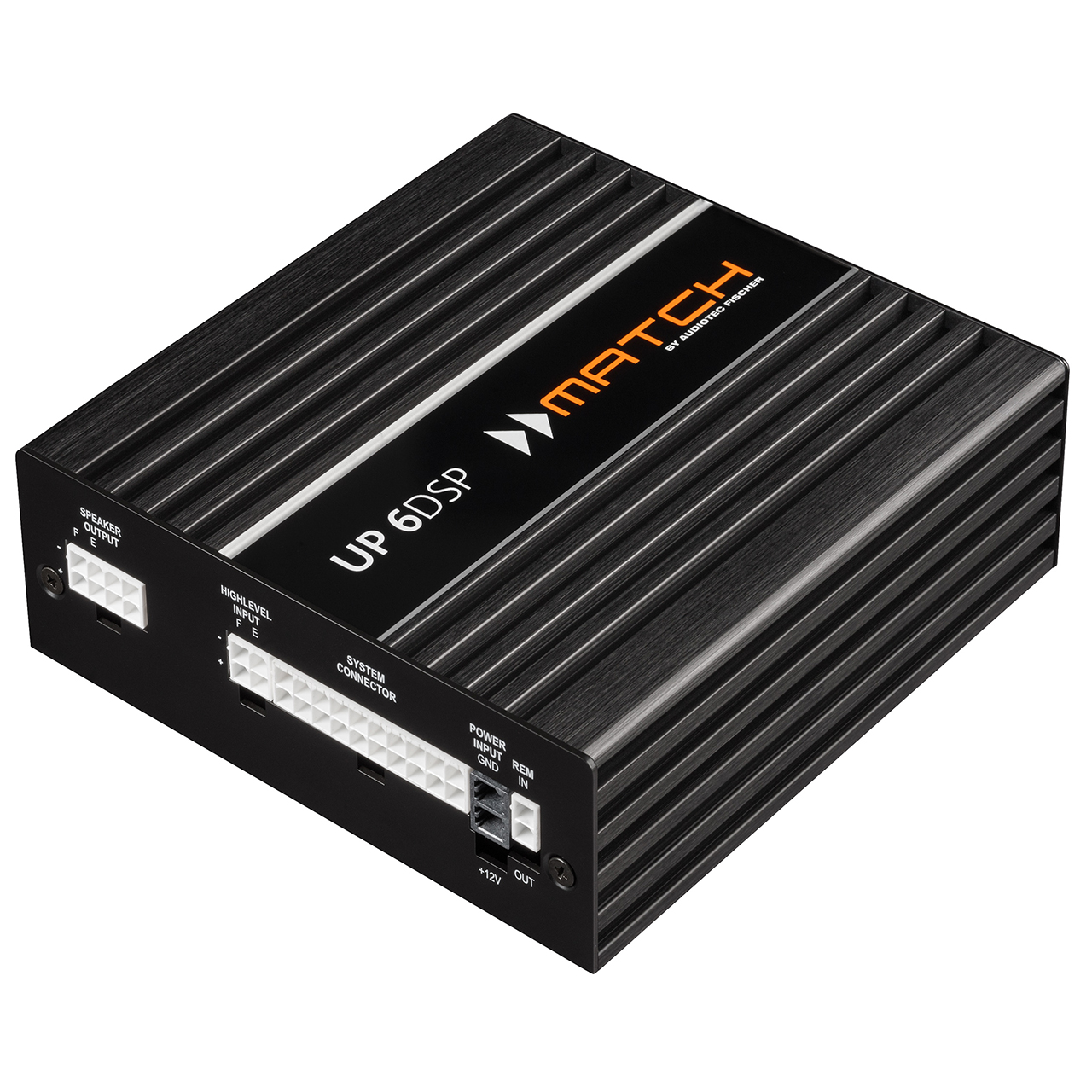

Compact design for flexible installation options
The UP 6DSP impresses with its powerful yet compact design, which allows easy installation even in confined spaces.

DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 6DSP can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.

Features
Ultra efficient 6-channel amplifier with 1-channel line output and 7-channel DSP
Perfect for upgrading standard sound systems with up to 6 channels
Optional cable harnesses for easy integration into existing multi-channel factory sound systems
Extremely powerful 64 Bit “fixed point” Audio DSP
ACO – Advanced 32 Bit CoProcessor platform for extended feature set
ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.

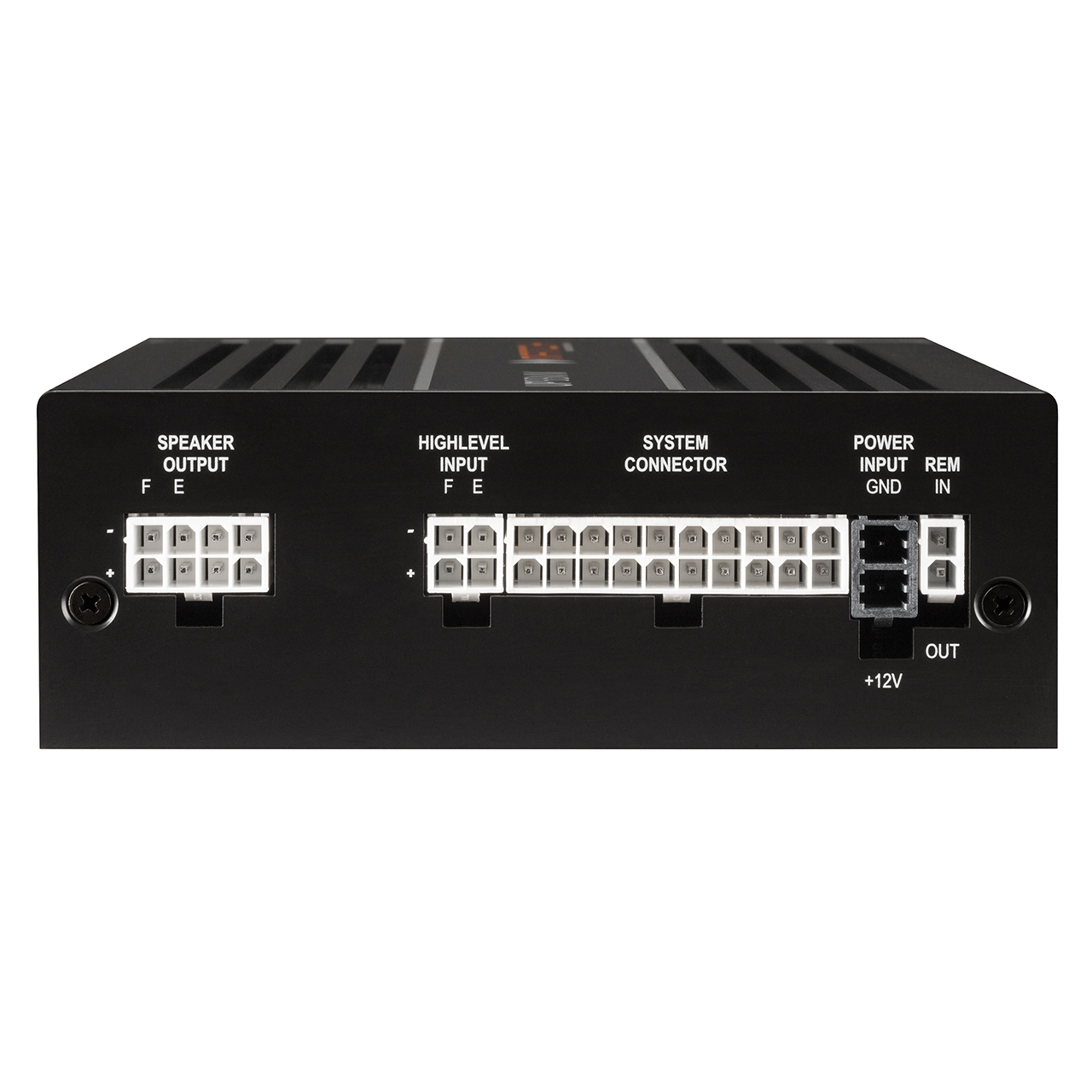

Smart 6-channel highlevel input with ADEP.3 circuit
1:1 IOR (Input-to-Output Routing) – same number of highlevel inputs and amplifier outputs
VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
MATCH Extension Card slot (MEC) for system expansions like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.

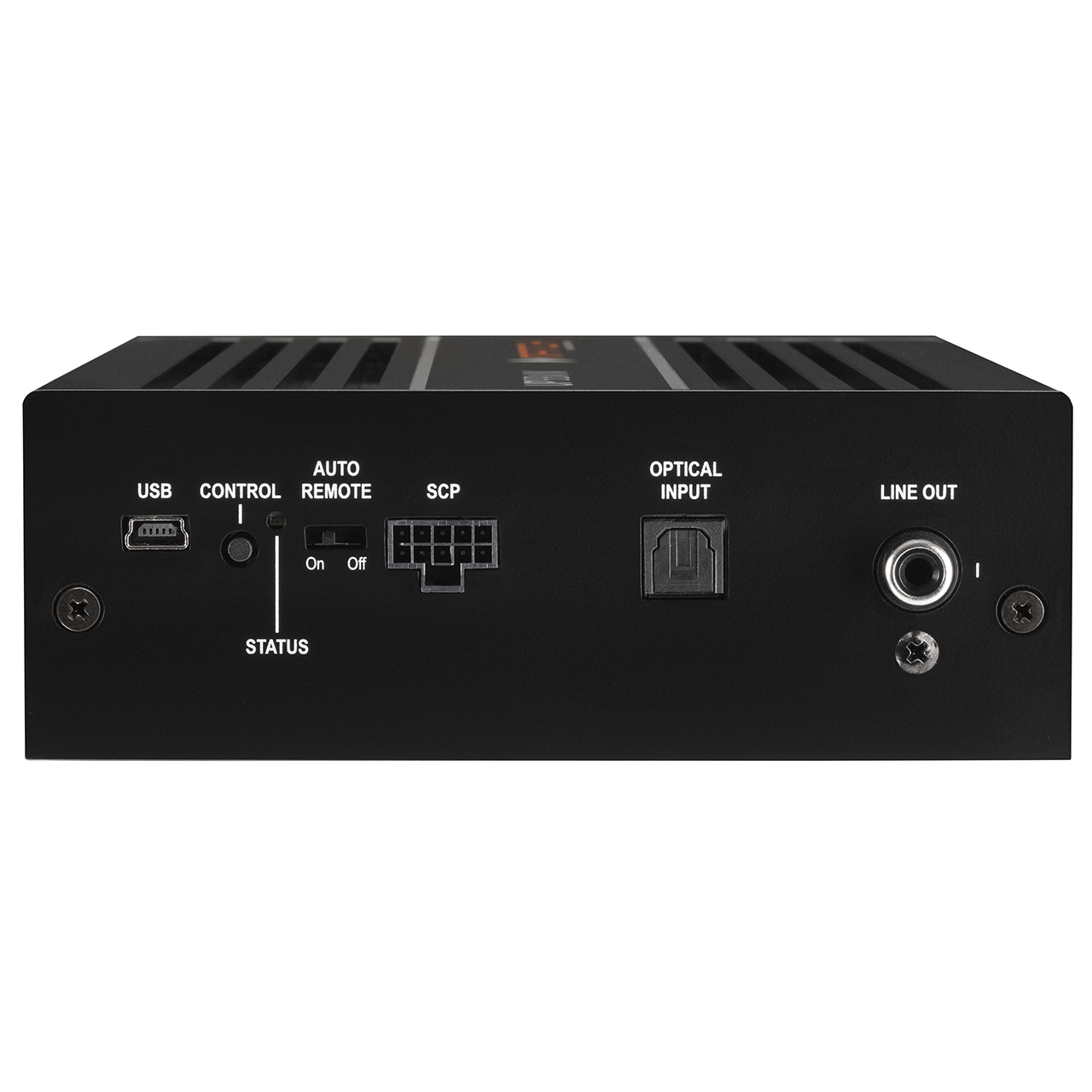

Optical input in SPDIF format with sampling rate between 12 and 96 kHz
Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier
SCP (Smart Control Port) for optional accessory like DIRECTOR, CONDUCTOR & Co.
Auto Remote switch
Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
Compact design with low heat dissipation thanks to extraordinary efficiency
