Match M 5.4DSP
EAN: 4057204612184
M 5.4DSP
5-channel DSP amplifier
4 x 60W + 1 x 160W
9-channel DSP
4 x RCA output
Read More
599,00 €
Description
Specifications
Manuals

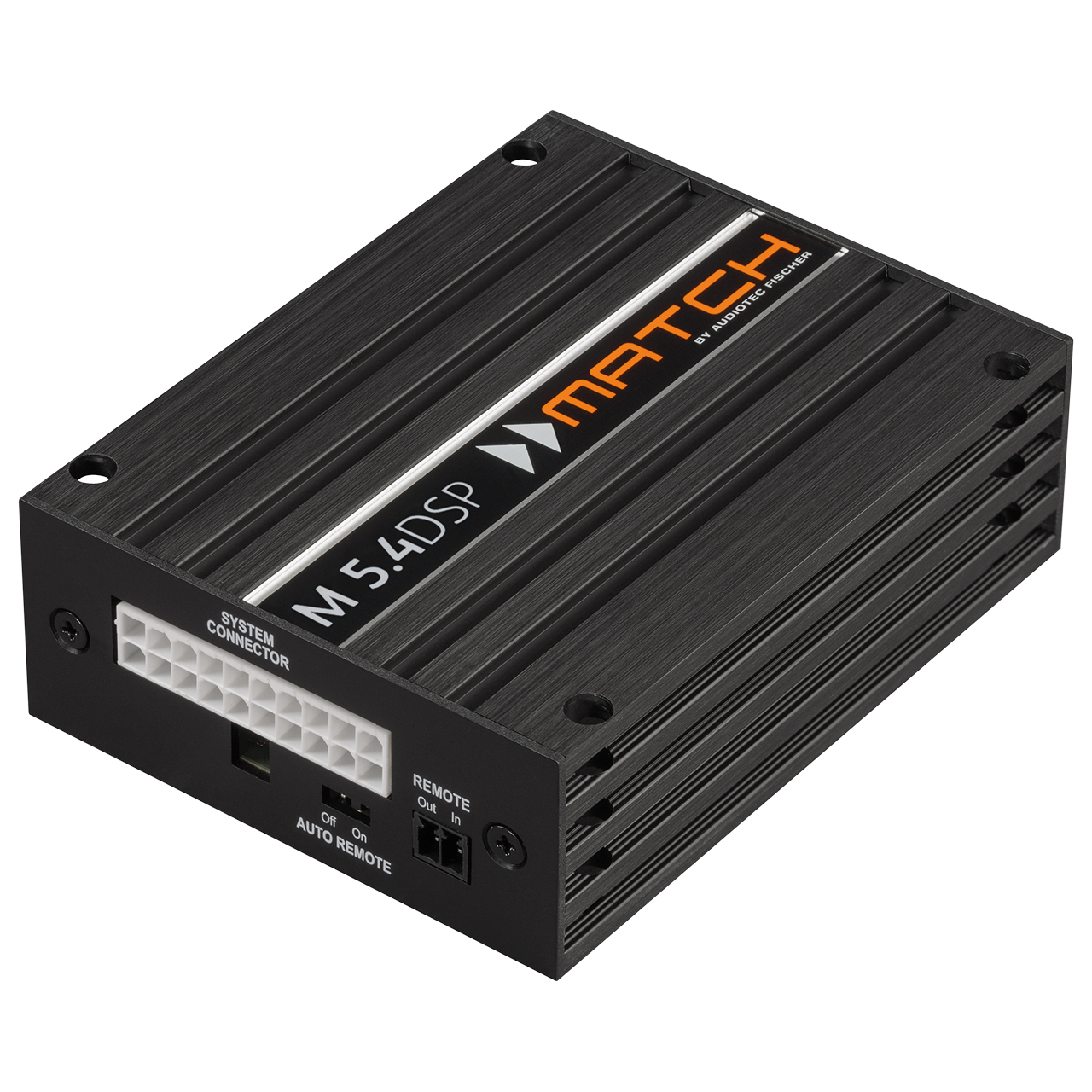

Miniatur amplifier for powerful sound upgrades
The new M 5.4DSP is a true giant in terms of power, while being barely larger than a smartphone. With incredible 400/ 800 Watts RMS/ Max. output power and the latest DSP technology, it dramatically improves every standard sound system and brings real hifi sound into your car.
Ultra-compact installation
In modern vehicles, the space available for sound upgrades is becoming increasingly limited and presents new challenges to installers. Thanks to its minimal dimensions, the M 5.4DSP can be mounted even in the most difficult space conditions and opens up new, unimagined possibilities in the choice of installation location.
In addition, the all-new Smart Control Port (SCP) offers a significantly more space-saving connection due to its extremely compact and securely locking connector. Via the SCP, all Audiotec Fischer remote controls – such as CONDUCTOR or URC.3 – can be connected and easily placed even in the smallest installation positions. In addition, the new Smart Control Port (SCP) offers a significantly more space-saving connection thanks to its extremely compact, securely locking connector. A direct power supply to the controller via the SCP is also possible, which makes an additional power cable unnecessary and simplifies installation even more.
The new M 5.4DSP is a true giant in terms of power, while being barely larger than a smartphone. With incredible 400/ 800 Watts RMS/ Max. output power and the latest DSP technology, it dramatically improves every standard sound system and brings real hifi sound into your car.
Ultra-compact installation
In modern vehicles, the space available for sound upgrades is becoming increasingly limited and presents new challenges to installers. Thanks to its minimal dimensions, the M 5.4DSP can be mounted even in the most difficult space conditions and opens up new, unimagined possibilities in the choice of installation location.
In addition, the all-new Smart Control Port (SCP) offers a significantly more space-saving connection due to its extremely compact and securely locking connector. Via the SCP, all Audiotec Fischer remote controls – such as CONDUCTOR or URC.3 – can be connected and easily placed even in the smallest installation positions. In addition, the new Smart Control Port (SCP) offers a significantly more space-saving connection thanks to its extremely compact, securely locking connector. A direct power supply to the controller via the SCP is also possible, which makes an additional power cable unnecessary and simplifies installation even more.
Output power RMS
- @ 4 OhmsHighPower mode: 4 x 60 Watts
MidPower mode: 4 x 35 Watts
- @ 2 Ohms-
- @ 1 Ohm-
- bridged @ 4 Ohms-
- bridged @ 2 Ohms-
- Subwoofer output @ 4 OhmsHigh- and MidPower mode: 1 x 90 Watts
- Subwoofer output @ 2 OhmsHigh- and MidPower mode: 1 x 160 Watts
Amplifier technologyClass GD
Inputs4 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote in
Input sensitivity5 - 11 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 - 33 Ohms with ADEP.3

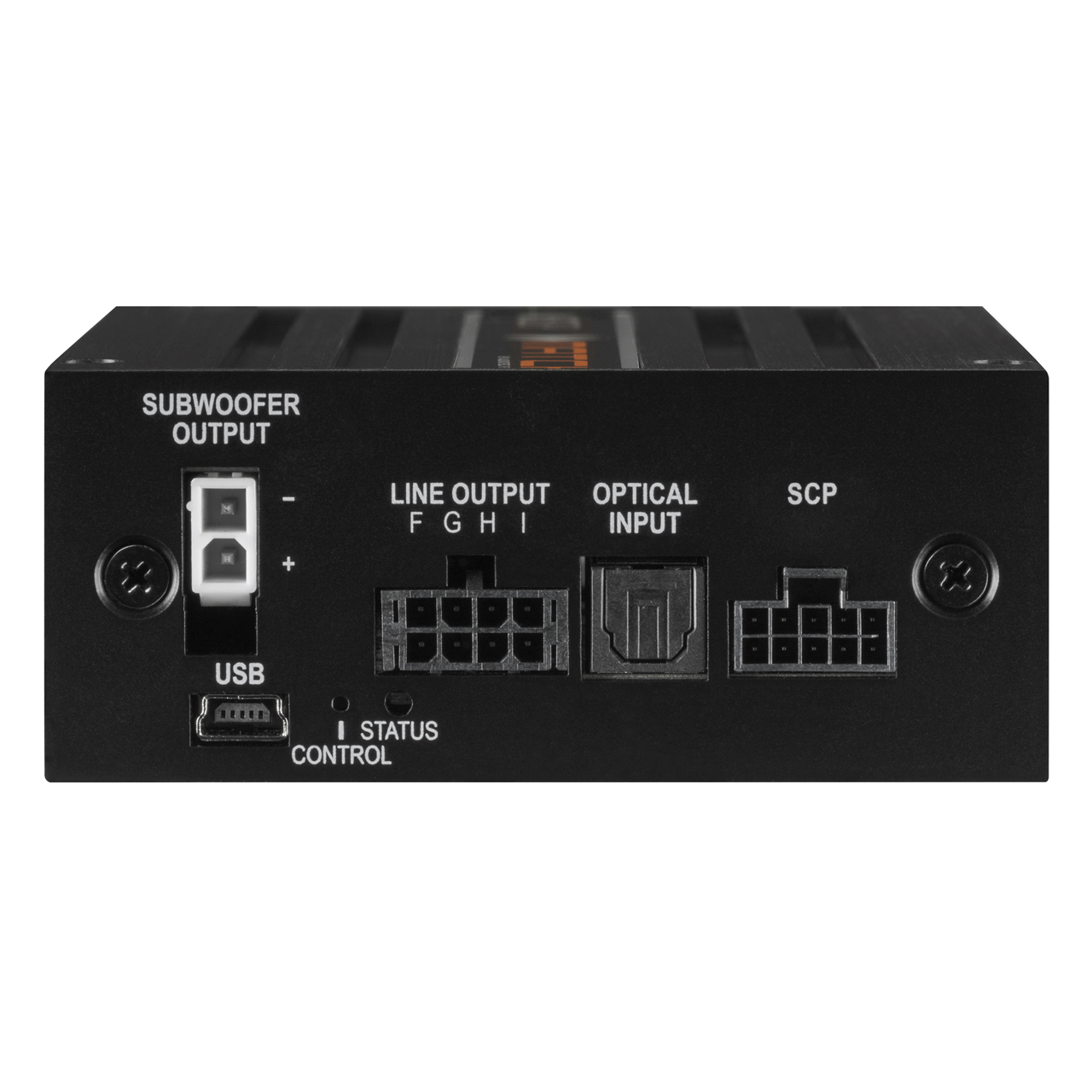

Outputs
5 x Speaker output
4 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch3 Volts
Frequency response20 Hz - 20,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal converters
A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 99 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 50
Operating voltage10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 40 A max.
Idle current280 mA
Max. remote output current500 mA
Fuse1 x 30 A Maxi-fuse (APX)

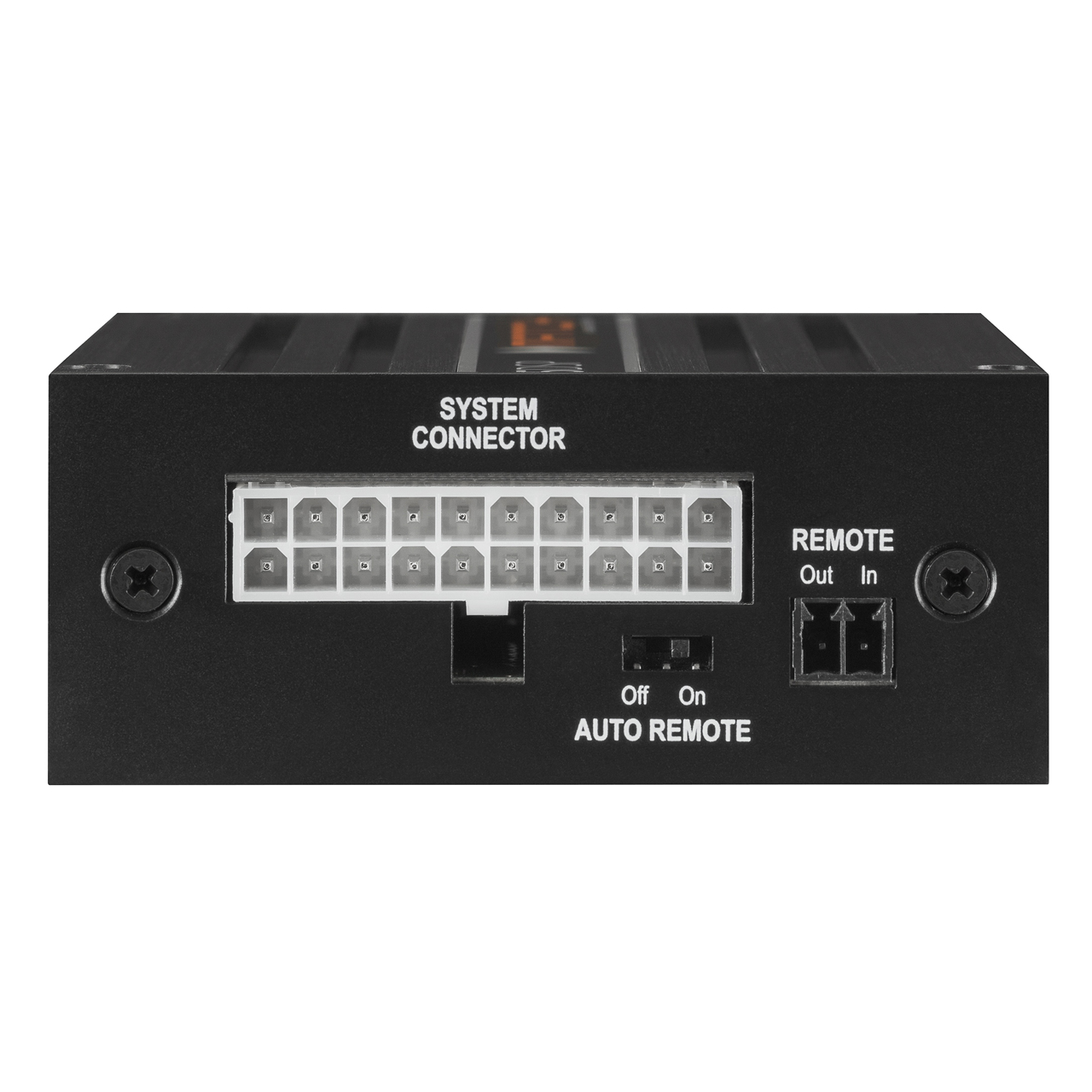

Additional features32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB
Dimensions (H x W x D)35 x 85 x 110 mm / 1.34 x 3.35 x 4.33″
Scope of delivery
1 x MATCH micro amplifier M 5.4DSP
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Connection cable PP-IOC (0.50 meter)
1 x Subwoofer connection cable PP-SOC (0.45 meter)
1 x Line Output-to-RCA cable
1 x Mounting material
1 x Instruction manual.
