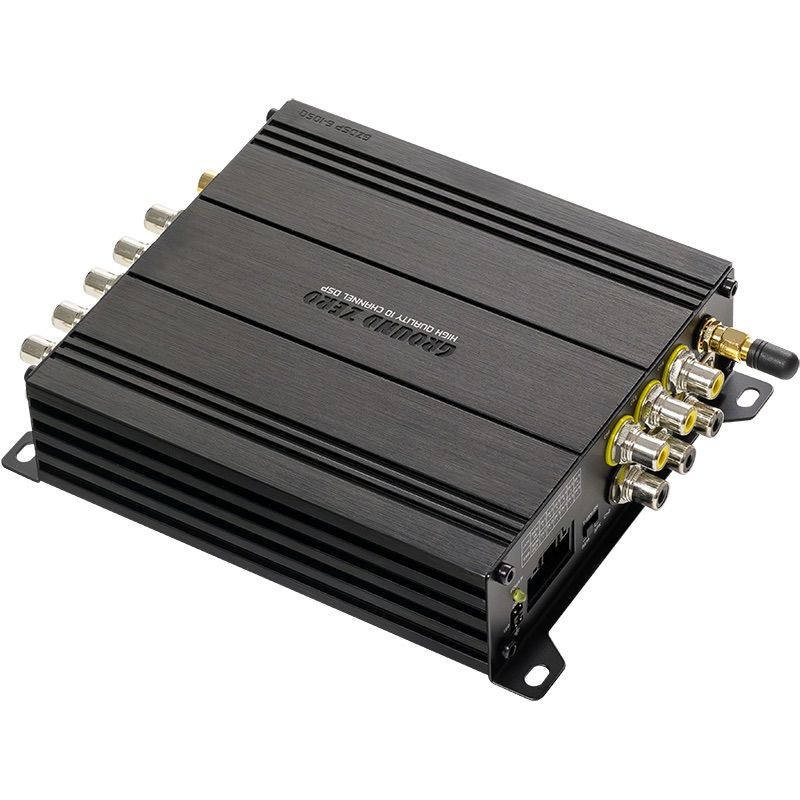

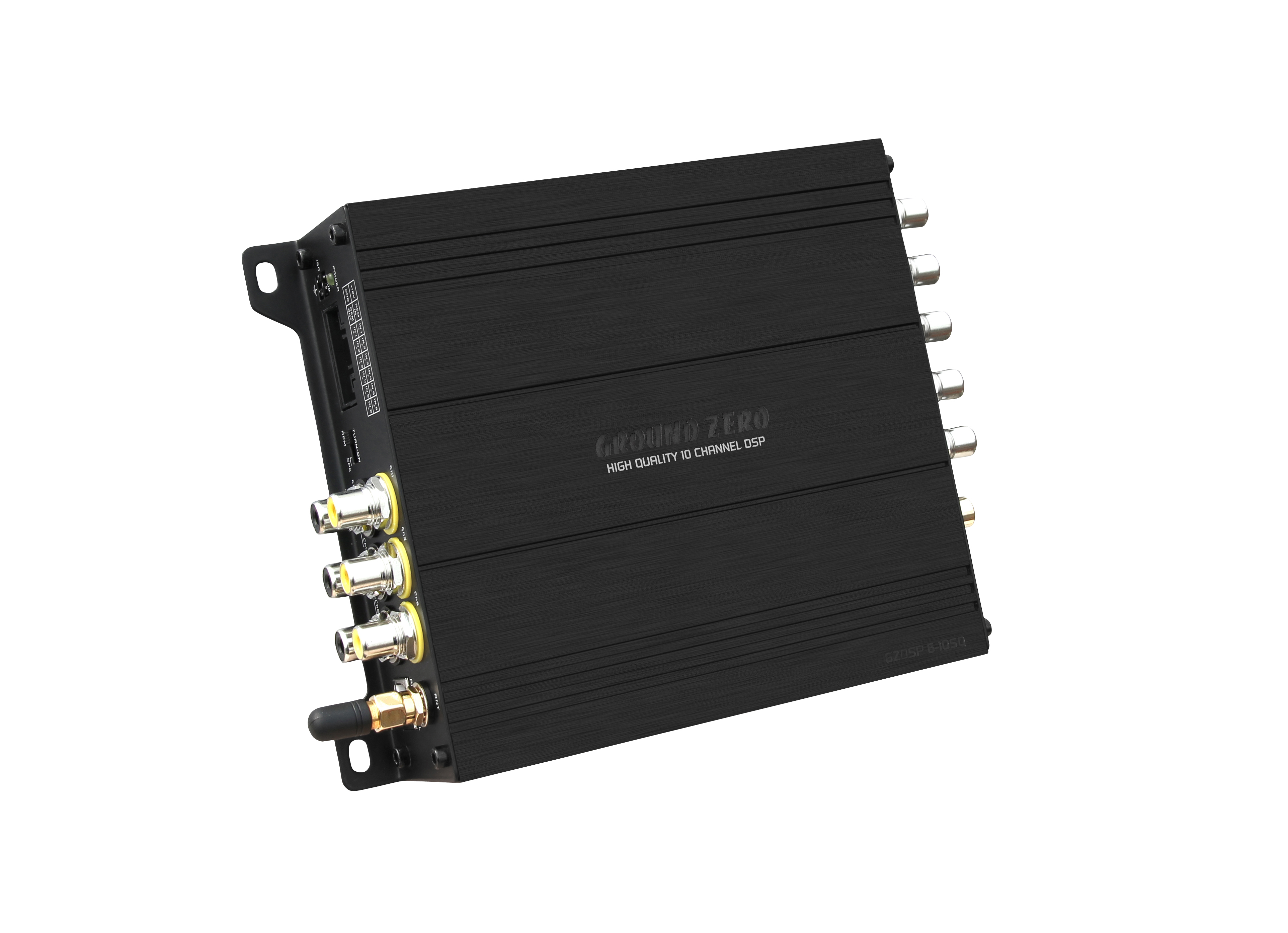

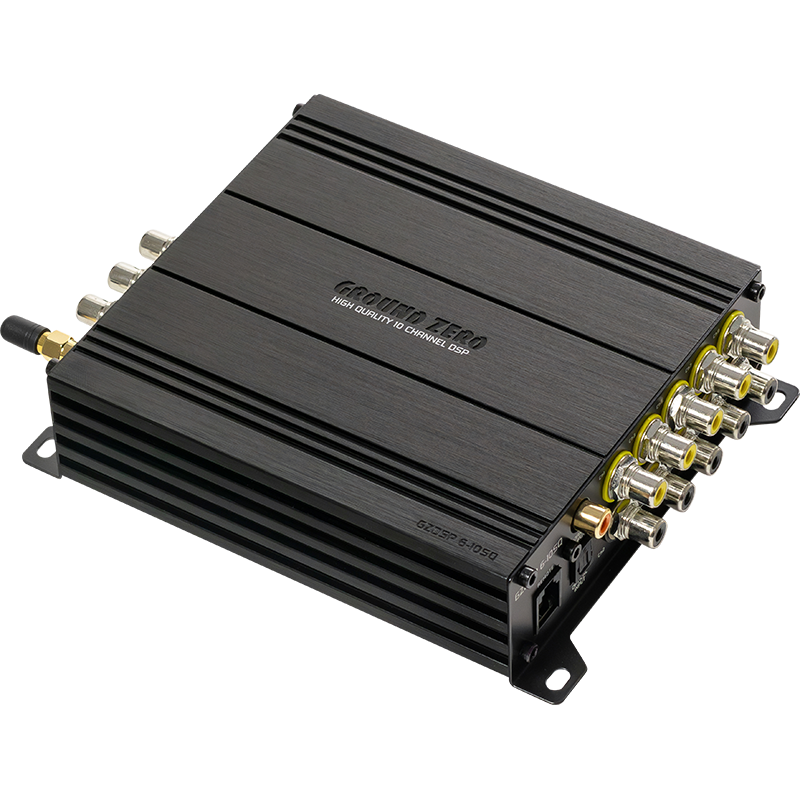

Ground Zero GZDSP 6-10SQ
EAN: 4037072026108
GZDSP 6-10SQ
10-channel DSP
6 input channel
10 output channel
Bluetooth 5.0
Windows / Android / iOS compatible
Read More
499,00 €
Description
Specifications
Manuals
The GZDSP 6-10SQ is a digital signal processor that can significantly improve the sound quality of a car
music system under certain conditions. The basis for this is a 32-bit SigmaDSP in conjunction with six 32-bit
analog-to-digital and ten digital-to-analog converters. Thanks to the free combination of up to 6 input
channels and a 31-band equalizer for each output channel, the GZDSP 6-10SQ can be integrated into almost
any factory system. The source-specific, 7-band input equalizer also helps optimize the input signal.

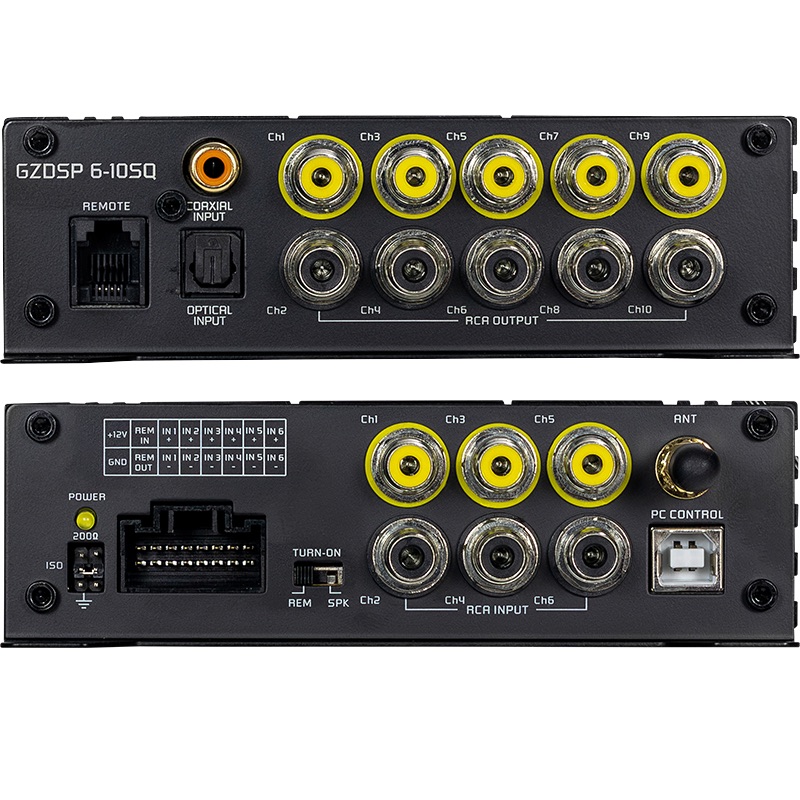

In addition to the 6 analog high- and low-level connections, the GZDSP 6-10SQ also offers an optical, digital
and BT interface.
To use your mobile device controlling the unit and changing the adjustments, please install the GROUND ZERO
GZDSP 6-10SQ control app on your device (Android / iOS) and connect the separately available music
streaming interface. Check the web page for further information and to download the app´s owner´s manual.
Default password for the iOS/Android app: 666666.
music system under certain conditions. The basis for this is a 32-bit SigmaDSP in conjunction with six 32-bit
analog-to-digital and ten digital-to-analog converters. Thanks to the free combination of up to 6 input
channels and a 31-band equalizer for each output channel, the GZDSP 6-10SQ can be integrated into almost
any factory system. The source-specific, 7-band input equalizer also helps optimize the input signal.
In addition to the 6 analog high- and low-level connections, the GZDSP 6-10SQ also offers an optical, digital
and BT interface.
To use your mobile device controlling the unit and changing the adjustments, please install the GROUND ZERO
GZDSP 6-10SQ control app on your device (Android / iOS) and connect the separately available music
streaming interface. Check the web page for further information and to download the app´s owner´s manual.
Default password for the iOS/Android app: 666666.
Model GZDSP 6-10SQ
Type 10-channel signal processor (DSP) with 6 inputs
Frequency range 20 Hz – 20 KHz (-3 dB)
SNR / line input ≥110dB (A-weighted)
SNR / opt. and coaxial input ≥113dB (A-weighted)
THD 0.002 %
DSP chipset Analog Devices SigmaDSP
Sensitivity Line input (RCA) max. 3V RMS
High level input max. 8.0 V RMS
Input impedance Line input (RCA) ≥20 kΩ
Output voltage / channel ≥3,8 V
Remote current max. 500 mA
Remote input voltage 3 V
Switching voltage / speaker input 3,2 V
Turn on delay 6 seconds
Recommended fuse value 5 A
Operating voltage 8.5 – 16 V
Dimensions 132 x 143 (171) x 40 mm / 5.20” x 5.63 (6.73)” x 1.57” (w x l x h)
Software compatibility Microsoft Windows™ XP SP3, Vista, 7, 8, 8.1,10,11
Preset memory 10 presets (individually assignable)
Gain range -60 bis 0 dB
Equalizer 10x parametric 31 band EQ (20 Hz – 20 kHz) with adjustable Q
Time delay 0 – 20 ms / 0 – 692 cm / 0-272 inch
Crossover 6 – 48 dB/oct. slope with selectable filter characteristic
Phase correction 0° / 180°
Optionally available accessory Wired remote control GZREM 6-10
