HELIX Conductor for SCP

HELIX CONDUCTOR is ACO remote controller.
SCP connection.

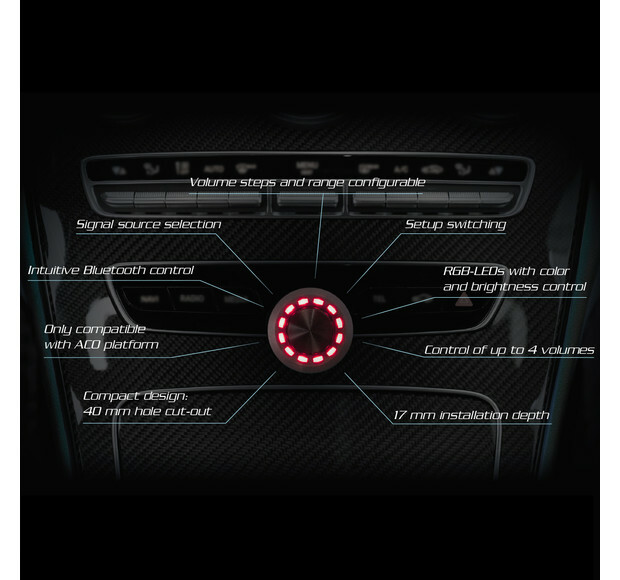

FEATURES:
Up to 4 individual volume menus configurable
(Master, Digital, HEC/AUX, Subwoofer, Rear Att.)
• Volume range selectable (60 dB, 24 dB, 12 dB).
• Volume steps selectable (1 dB steps, 0.5 dB steps).
• Individual color for each volume menu configurable.
Sound Setup selection between all 10 memory slots.
Intuitive Bluetooth playback control and pairing activation
(only for Bluetooth Extension Card).

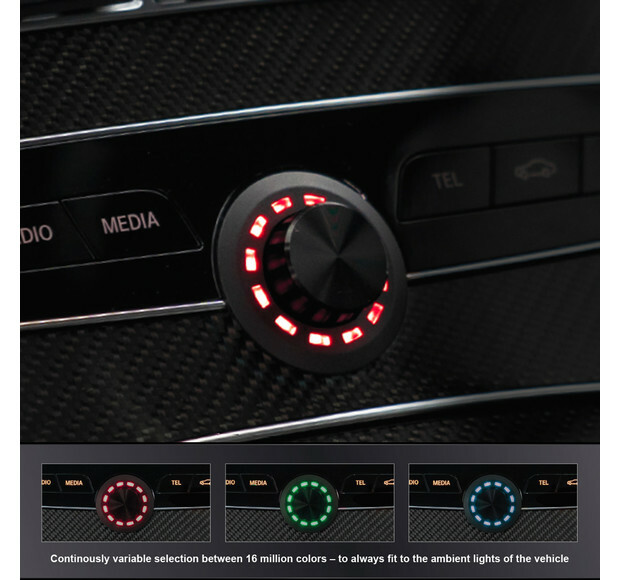

12 x RGB-LEDs for visual feedback.
• Wide color space with over 16 million colors.
• Brightness and automatic dimming function
configurable.
Easy installation.

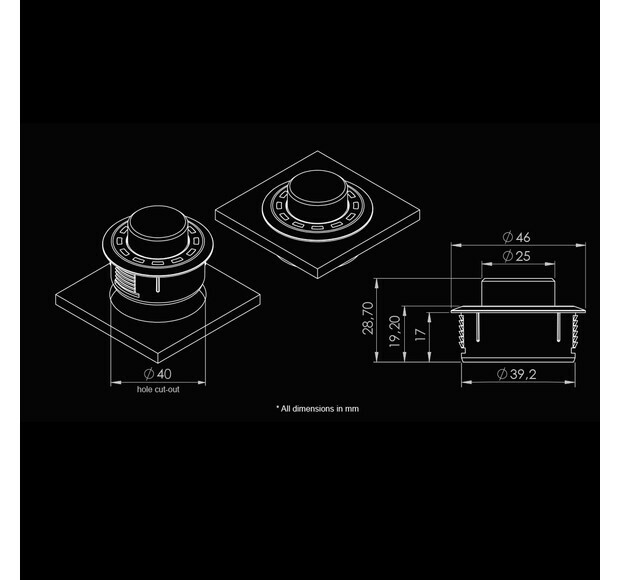

• Flush mount installation with Ø 40 mm hole cut-out.
• 5 m cable harness with split connector and single
connector supply.
• Optional housing for on-dash installation available
soon.
Full configuration and updatability through the DSP PC-Tool software.
DSP PC-Tool 4.75a or higher.

COMPATIBILITY:

BRAX:

HELIX DSP PRO MK3
DSP.3S
DSP MINI MK2
V TWELVE DSP MK2

MATCH:

UP 10DSP
UP 8DSP
M 5.4DSP

Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.

Note 2: The CONDUCTOR is not compatible with UP 7DSP / UP 7BMW
