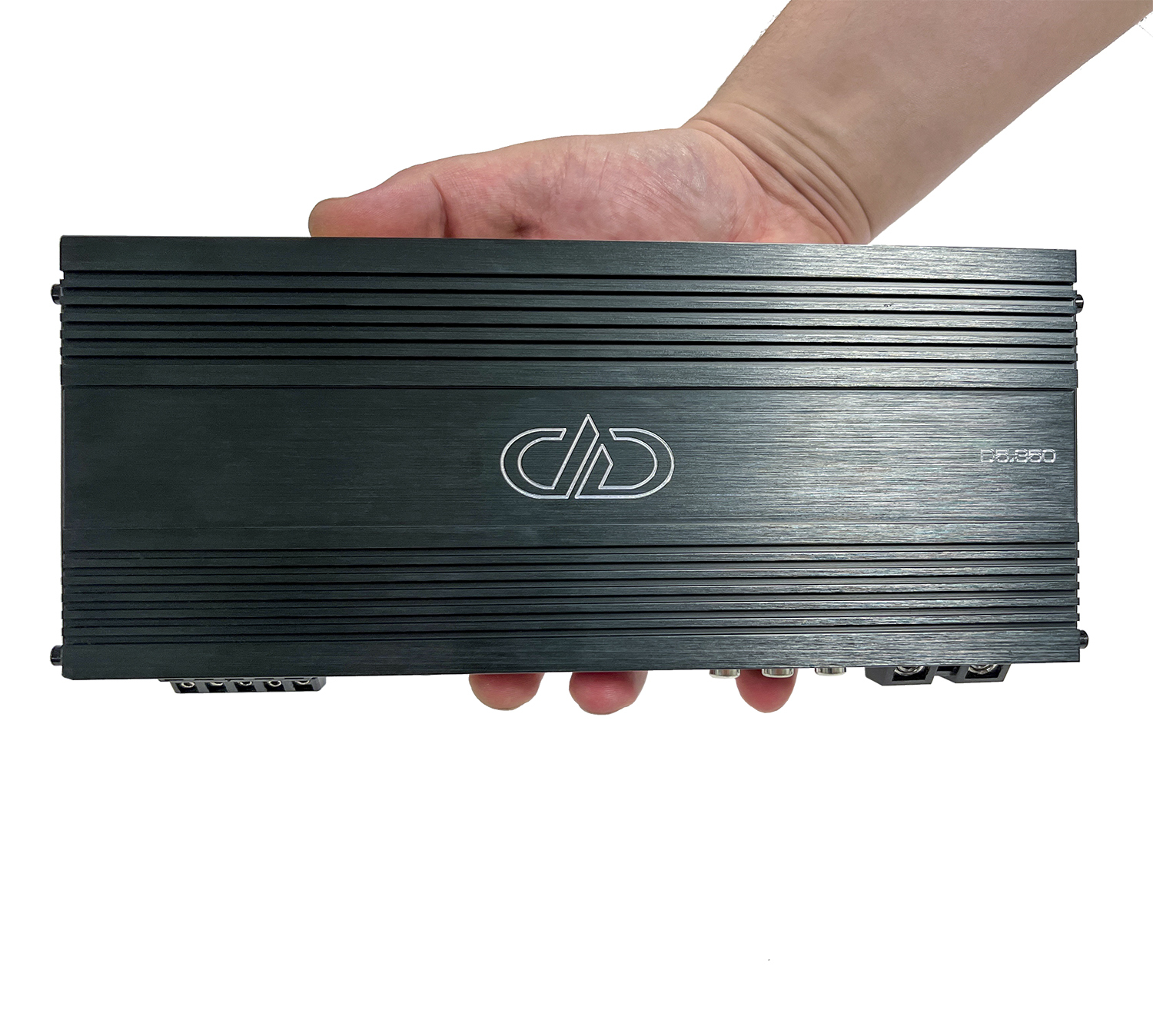

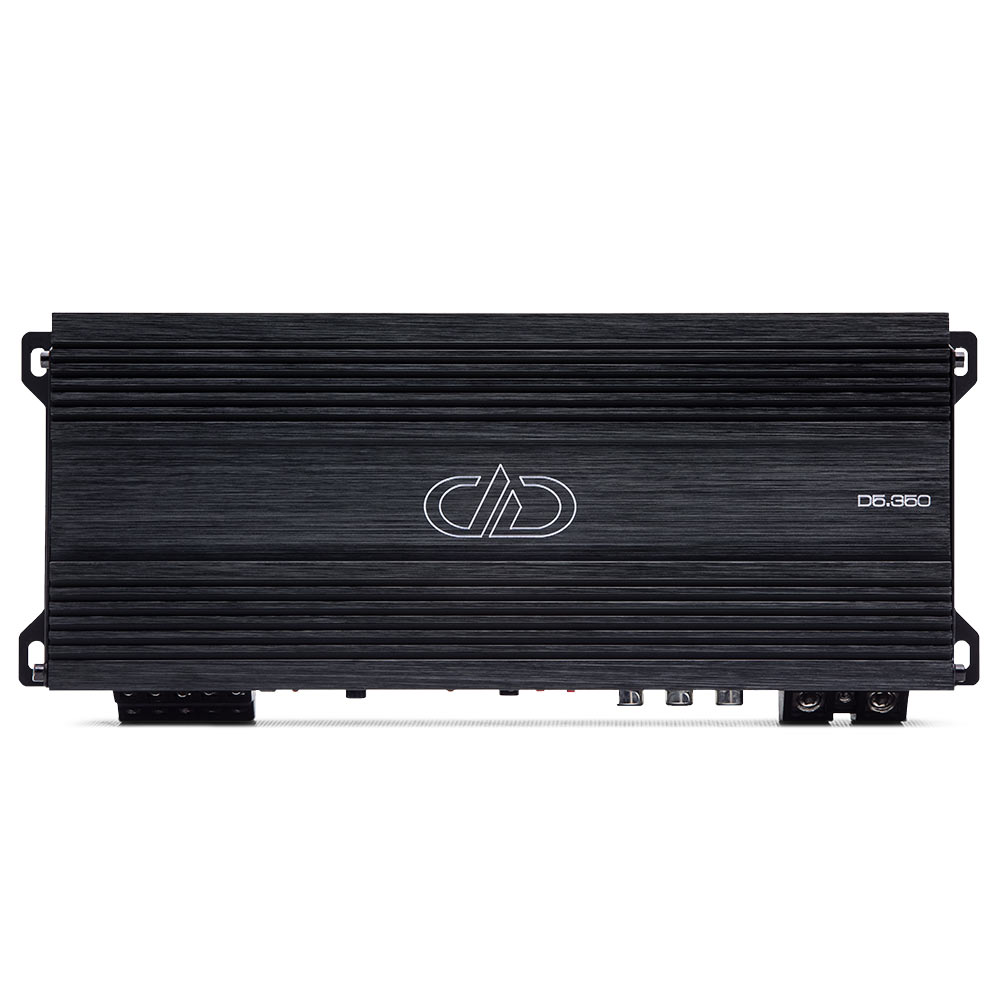

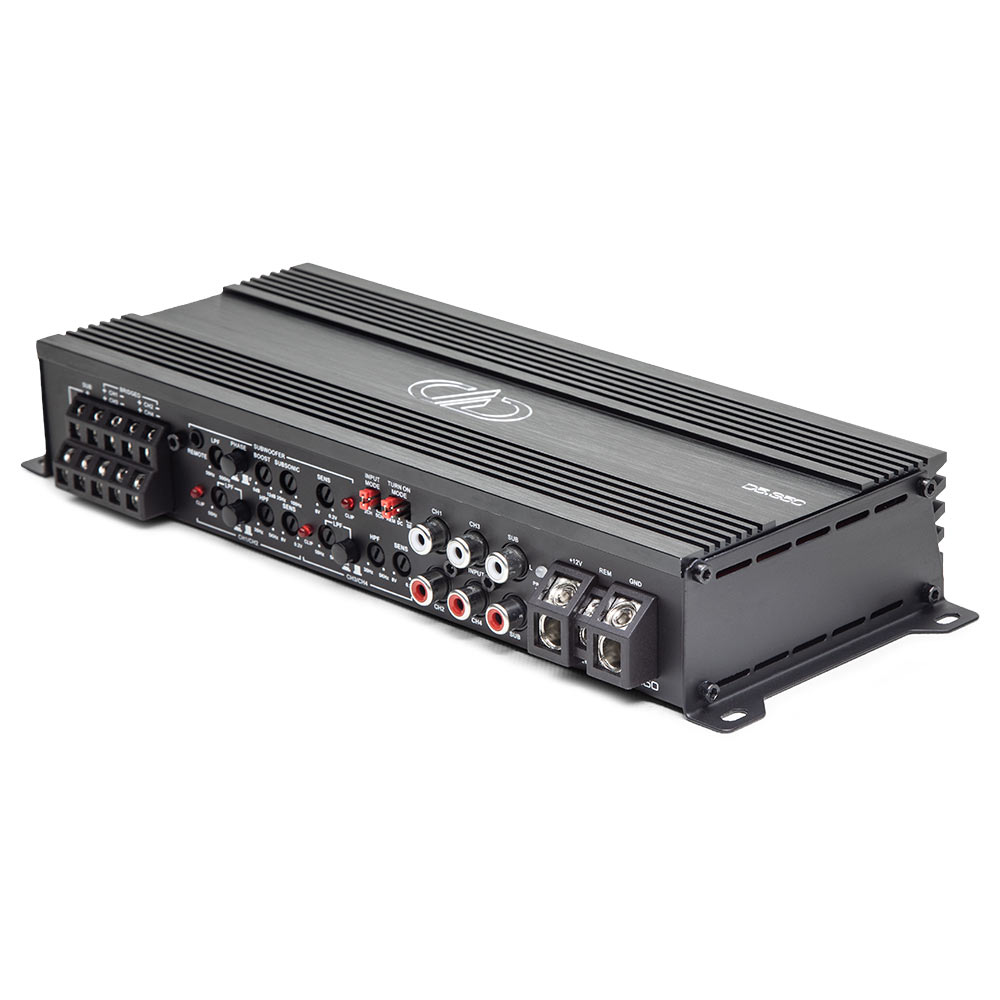

DD Audio D5.350
EAN: 0850013938483
D5.350
5-channel amplifier
Small size
4 x 140W + 1 x 350W

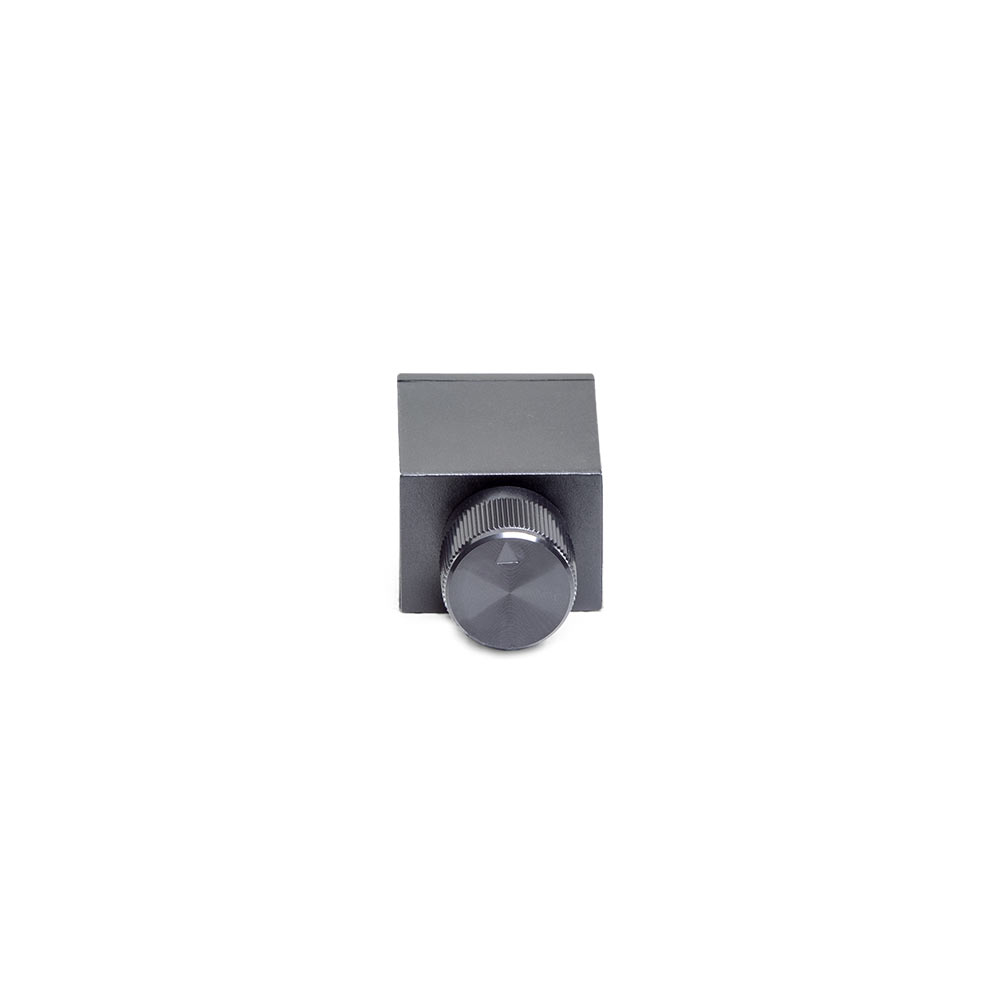

Wired remote
Read More
499,00 €
Description
Specifications
D Series amplifiers are compact amplifiers with full size features. The D5.350 is a five channel amplifier designed to power an entire audio system while taking up minimal space. It has a four channel section with a total output power of 560 watts and a 350 watt dedicated sub section.

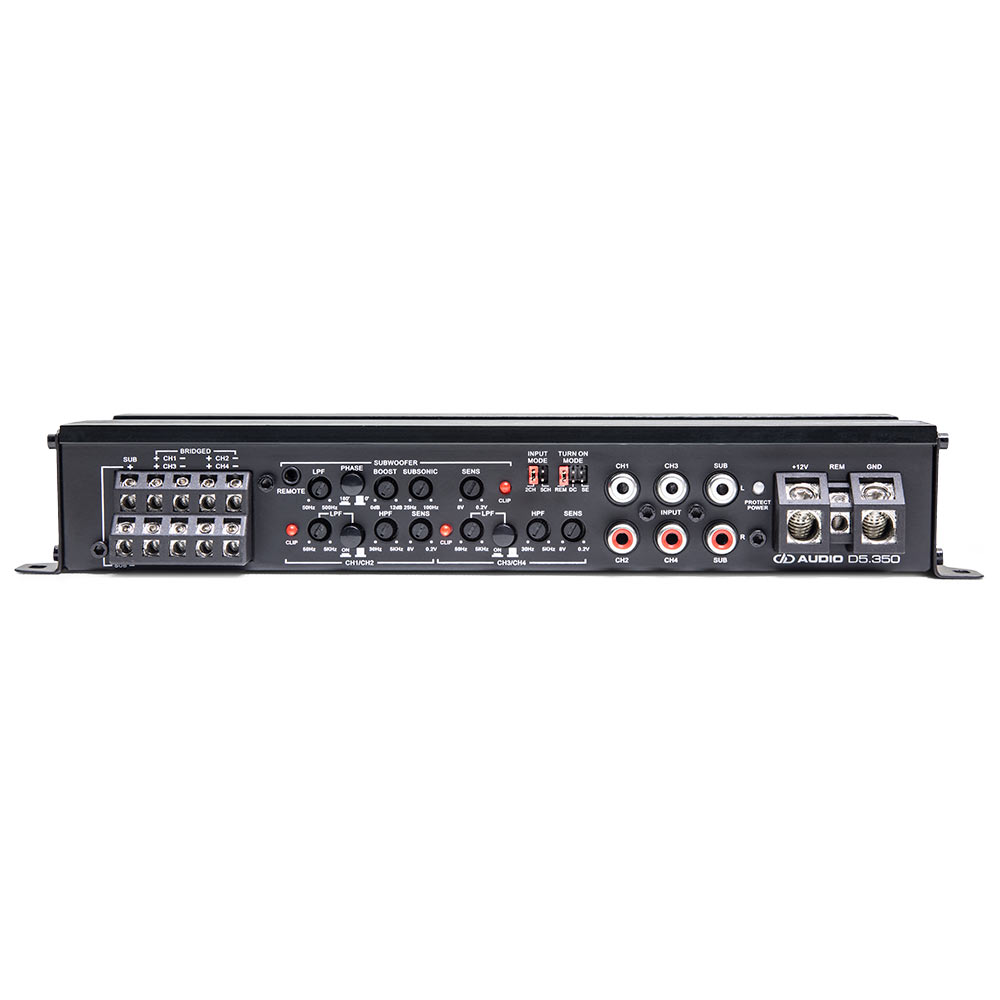

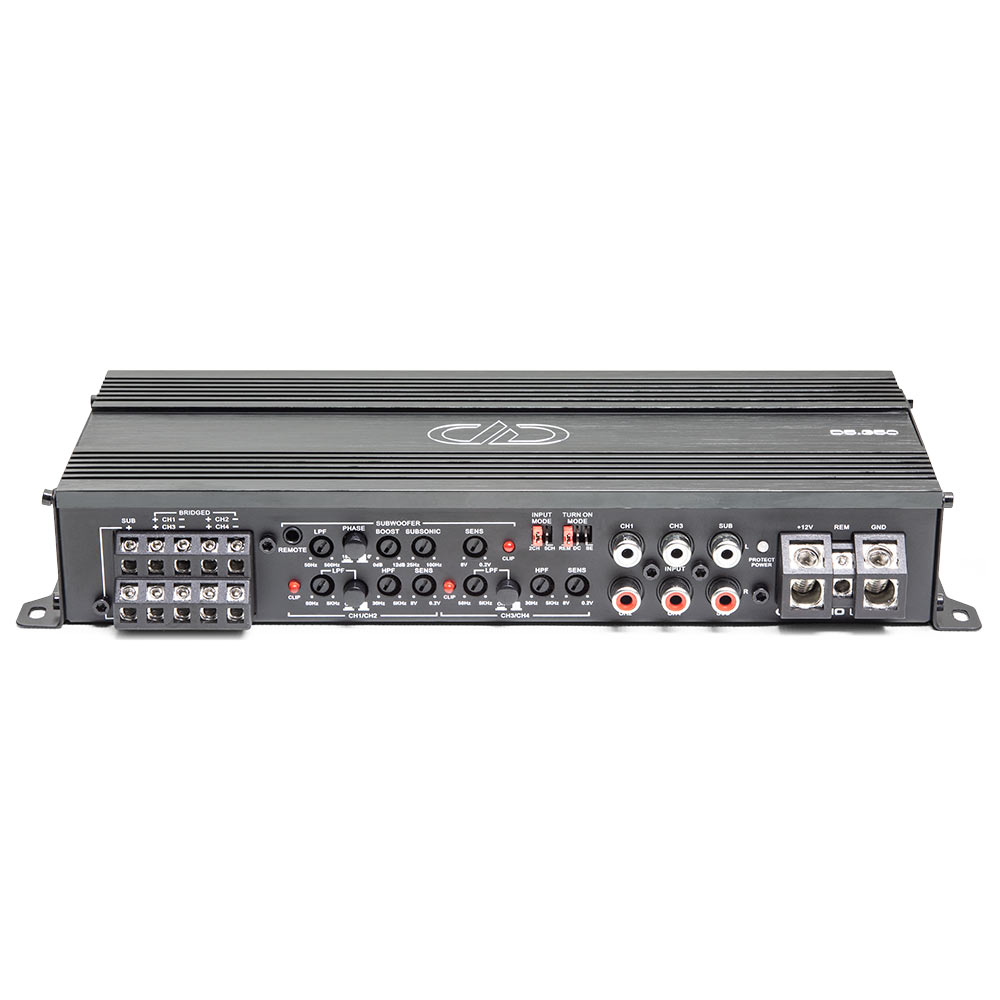

Precision tuning is made easy with variable bandpass crossovers and LED clipping indicators. Installation is made easier with single side controls and connections, input mode switches, and auto turn-on options.
For boat, bike, and ATV applications conformal coated internal circuitry and corrosion proof switches offer increased moisture resistance.
Even though the D Series amplifiers are very compact they still employ set screw power and speaker terminals, discrete output sections, and heavy duty anodized aluminum heatsinks. This ensures power management is proper from input to output, increasing both in-use stability and long term durability.
Precision tuning is made easy with variable bandpass crossovers and LED clipping indicators. Installation is made easier with single side controls and connections, input mode switches, and auto turn-on options.
For boat, bike, and ATV applications conformal coated internal circuitry and corrosion proof switches offer increased moisture resistance.
Even though the D Series amplifiers are very compact they still employ set screw power and speaker terminals, discrete output sections, and heavy duty anodized aluminum heatsinks. This ensures power management is proper from input to output, increasing both in-use stability and long term durability.
Operating Voltage:9 - 16
Test Voltage:14.4
Input Channel(s):1
Output Channel(s):5
Continuous Wattage @4ohm:(CH1~4) 85 x 4 / 280 x 2 (CH5) 130 x 1
Continuous Wattage @2ohm:(CH1~4) 140 x 4 (CH5) 230 x 1
Continuous Wattage @1ohm:(CH5) 350 x 1
Max Current Draw (Amps):90
RCA Input Voltage Sensitivity:8 ~ 0.2
RCA Input S/N: 85dB
Damping Factor: 100
THD: 0.2%
Frequency Response (Hz):30 ~ 25k
Sub-Sonic Filter:(CH1~4) 30 - 5k
Sub-Sonic Filter:(CH5) 25 - 100
Low-Pass Filter:(CH1~4) 50 - 5k / (CH5) 50 - 500 ( 12 dB/oct )
Pass Thru Output:Yes
Remote Control:Remote Included in Box
Power Wire Gauge:4
Speaker Wire Gauge:12
Dimensions (Inches):9.8 x 4 x 1.7
Dimensions (MM):250 x 104 x 43
