AI-SONIC S2-A60.4
EAN: 6430042126286
S2-A60.4
4-Channel amplifier
4 x 105W or 2 x 210W
High-Level input
Designed in Finland
Read More
199,00 €
Description
Specifications
Manuals
Media

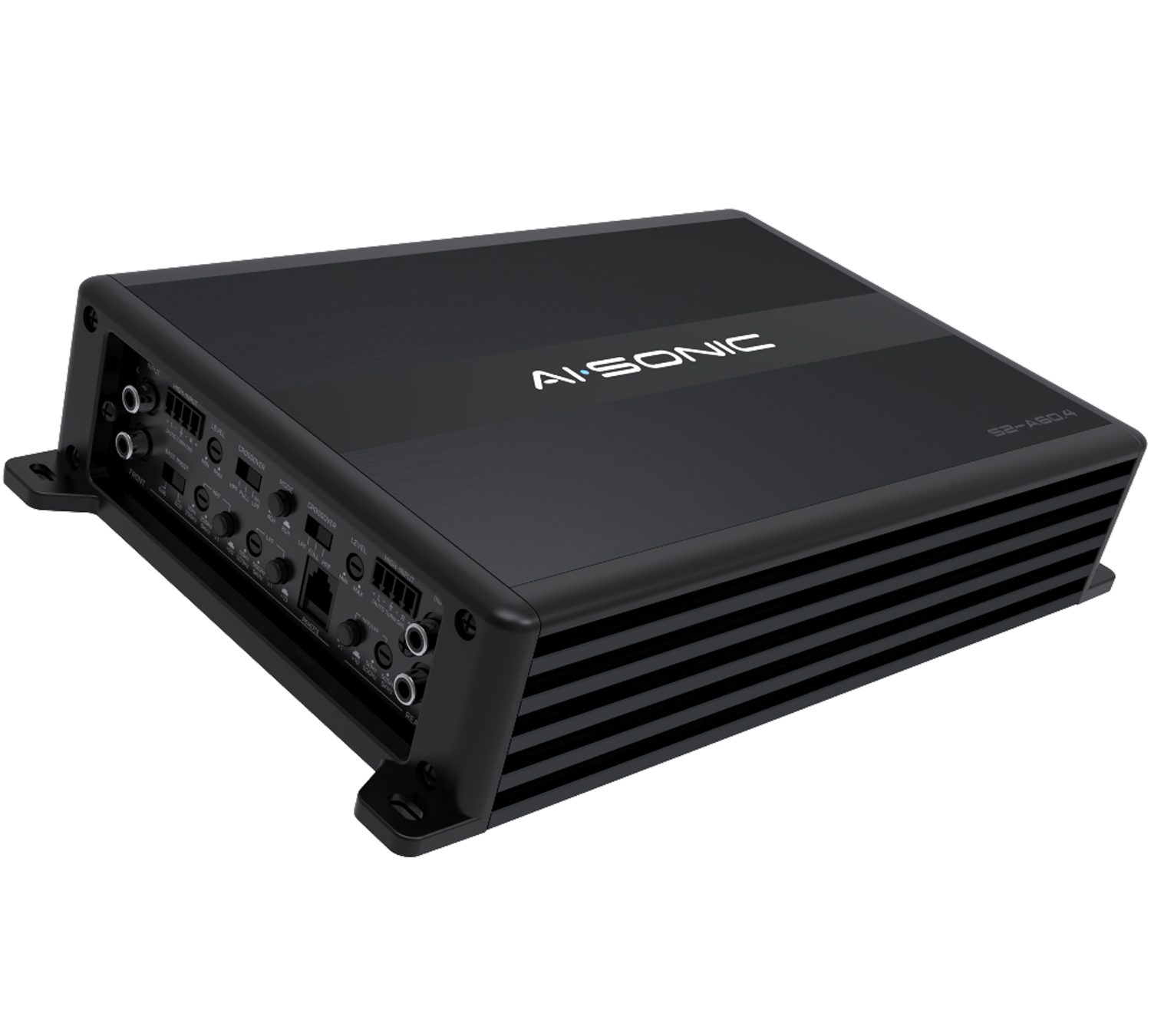

AI-Sonic S2-A60.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
RMS POWER (2ohm ) 12v 1%THD 4x105 W
RMS POWER (4ohm ) 12v 1%THD 4x70 W
BRIDGED POWER(4ohm) 12v 1%THD 2x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
INPUT IMPEDANCE: 13K
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz(FRONT)
x1 : 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x25A

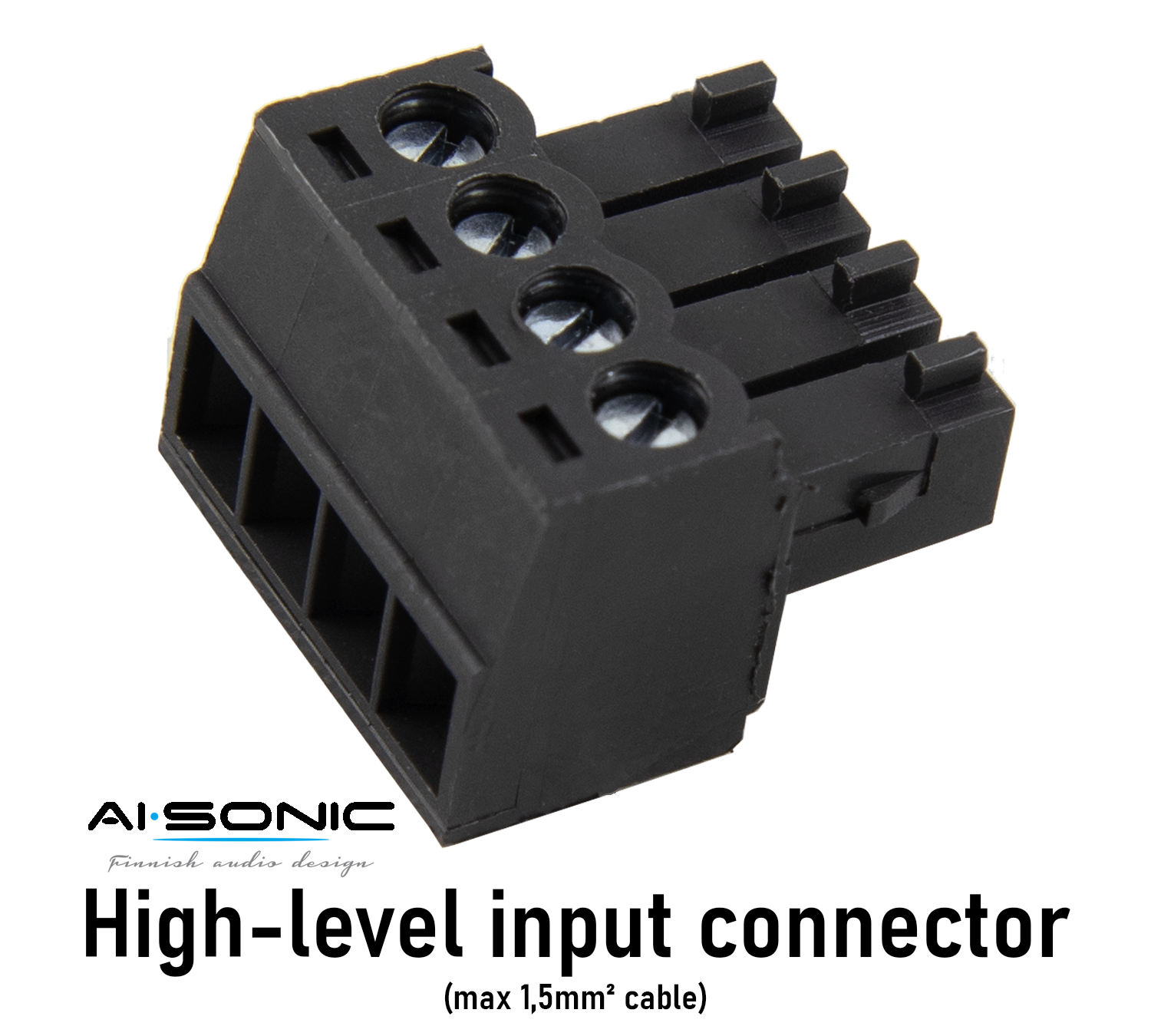

HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 48A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4I N)
L: 304mm / ( 12.0 IN).
