AI-SONIC S2-A100.4
EAN: 6430042126279
S2-A100.4
4-channel amplifier
4 x 165W tai 2 x 330W

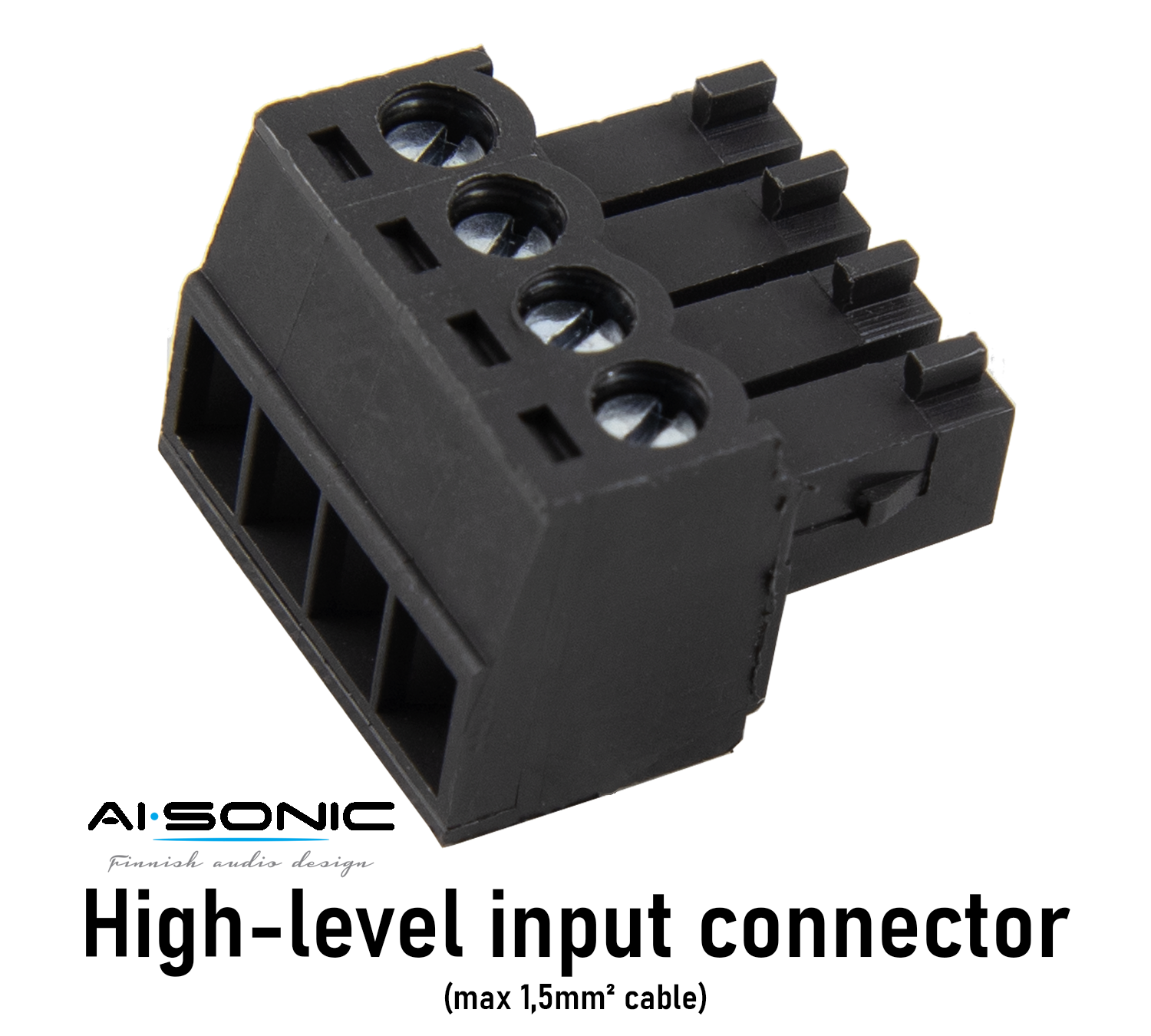

High-Level input
Designed in Finland
Read More
299,00 €
Description
Specifications
Manuals
Media

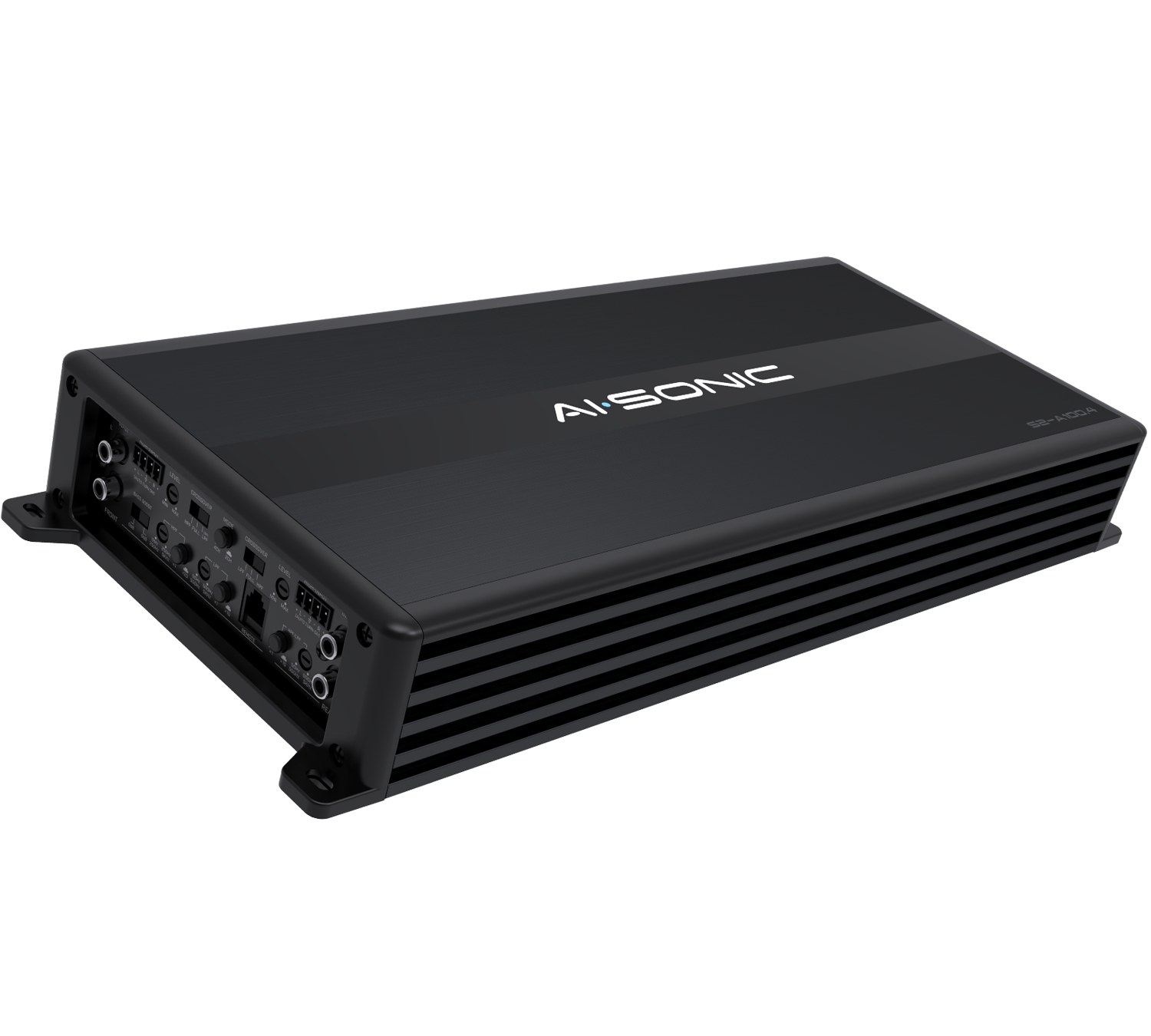

AI-Sonic S2-A100.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
RMS POWER (2ohm) 12v 1%THD 4 x 165W
RMS POWER (4ohm) 12v 1%THD 4 x 110W
BRIDGED POWER (4ohm) 12v 1%THD 2x330W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO(A-WEIGHTED): 105dB
INPUT SENSITIVITY: 0.5-6V

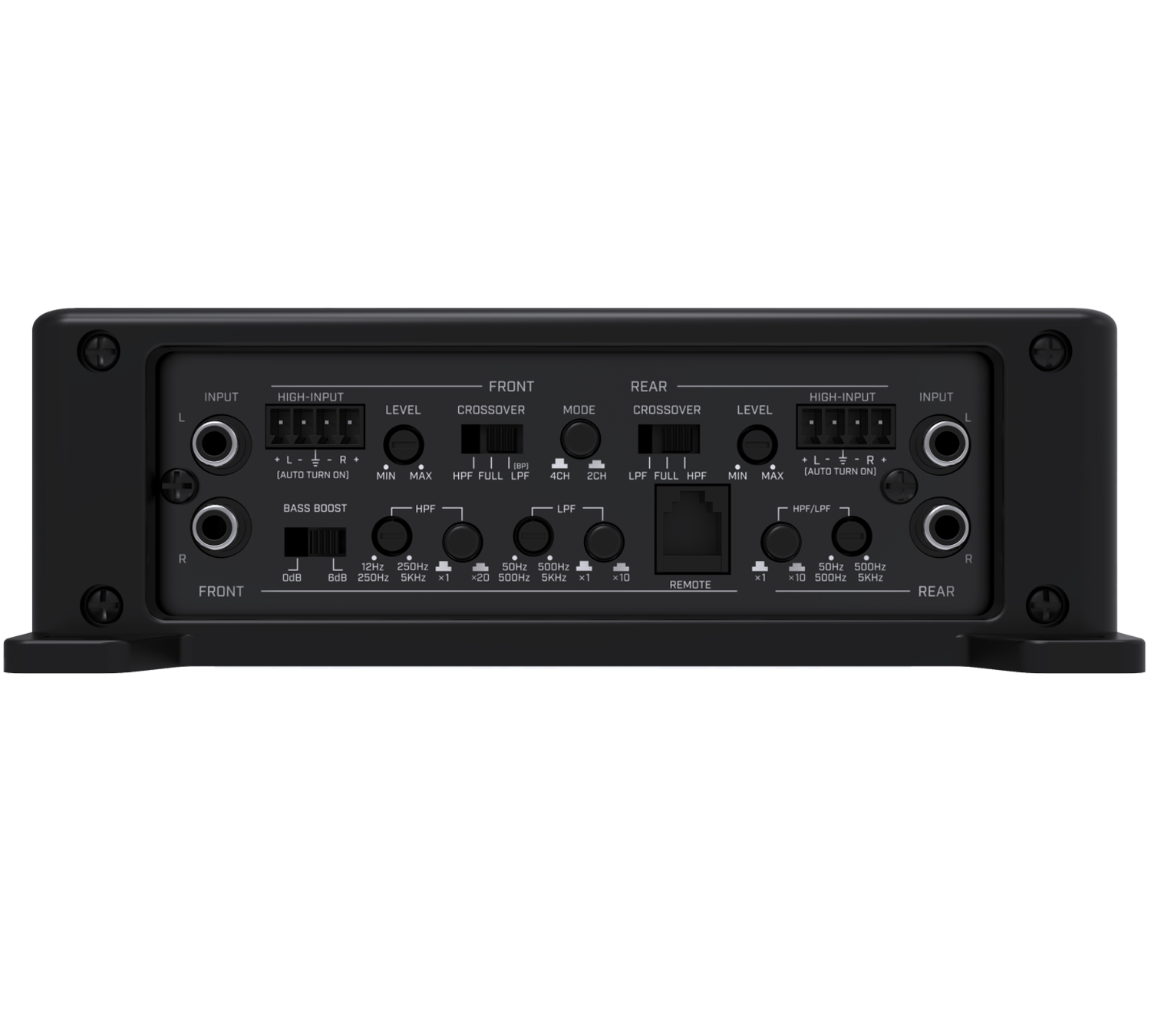

LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz (FRONT)
x1: 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
SUBSONIC: 12Hz -5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH

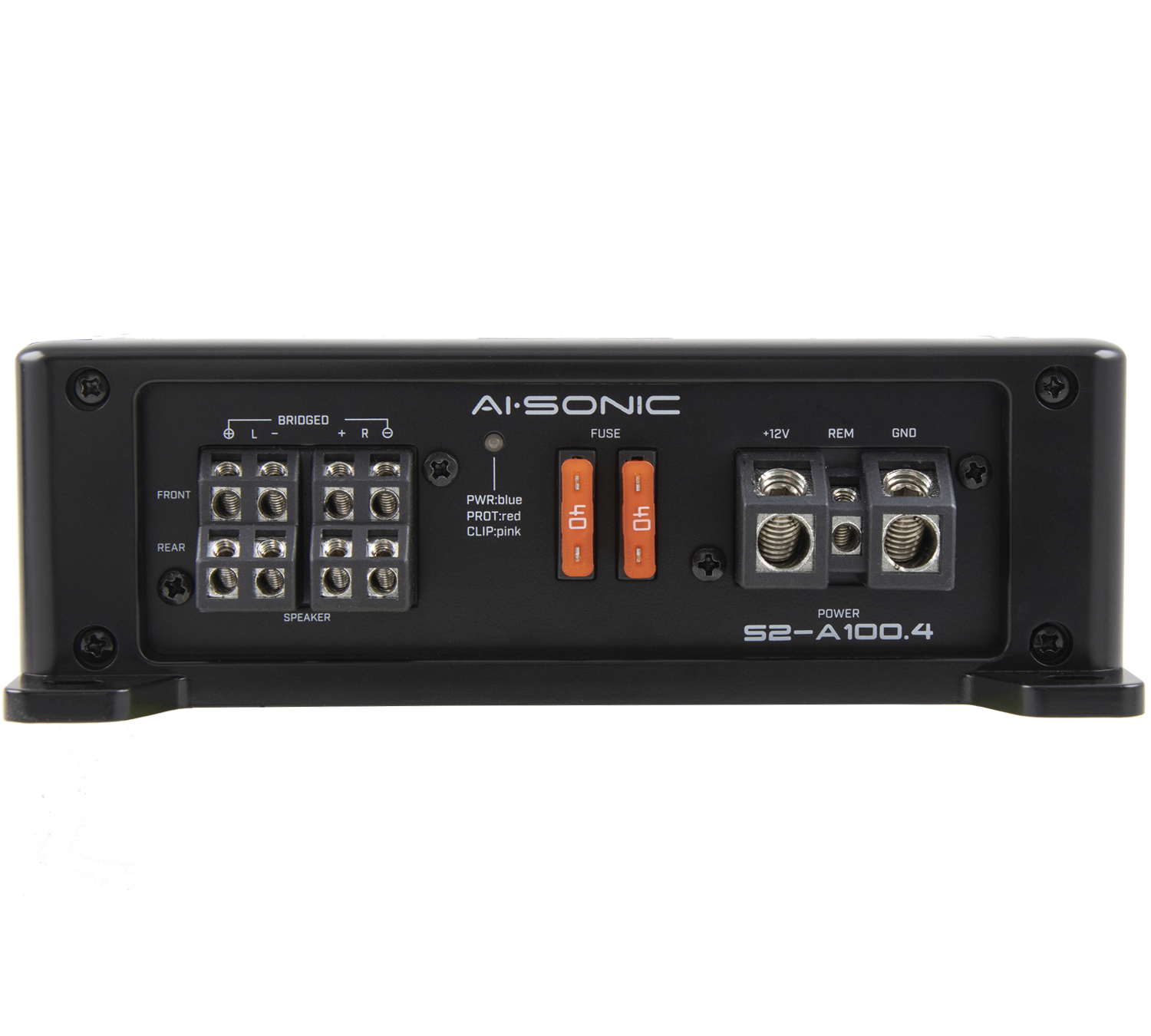

POWER FUSE: 2x40A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 75A
DIMENSIONS: W: 183mm / (7.2IN)
H: 60mm / (2.4IN)
L: 444mm / (17.5 IN).
RMS POWER (4ohm) 12v 1%THD 4 x 110W
BRIDGED POWER (4ohm) 12v 1%THD 2x330W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO(A-WEIGHTED): 105dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz (FRONT)
x1: 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
SUBSONIC: 12Hz -5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x40A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 75A
DIMENSIONS: W: 183mm / (7.2IN)
H: 60mm / (2.4IN)
L: 444mm / (17.5 IN).
