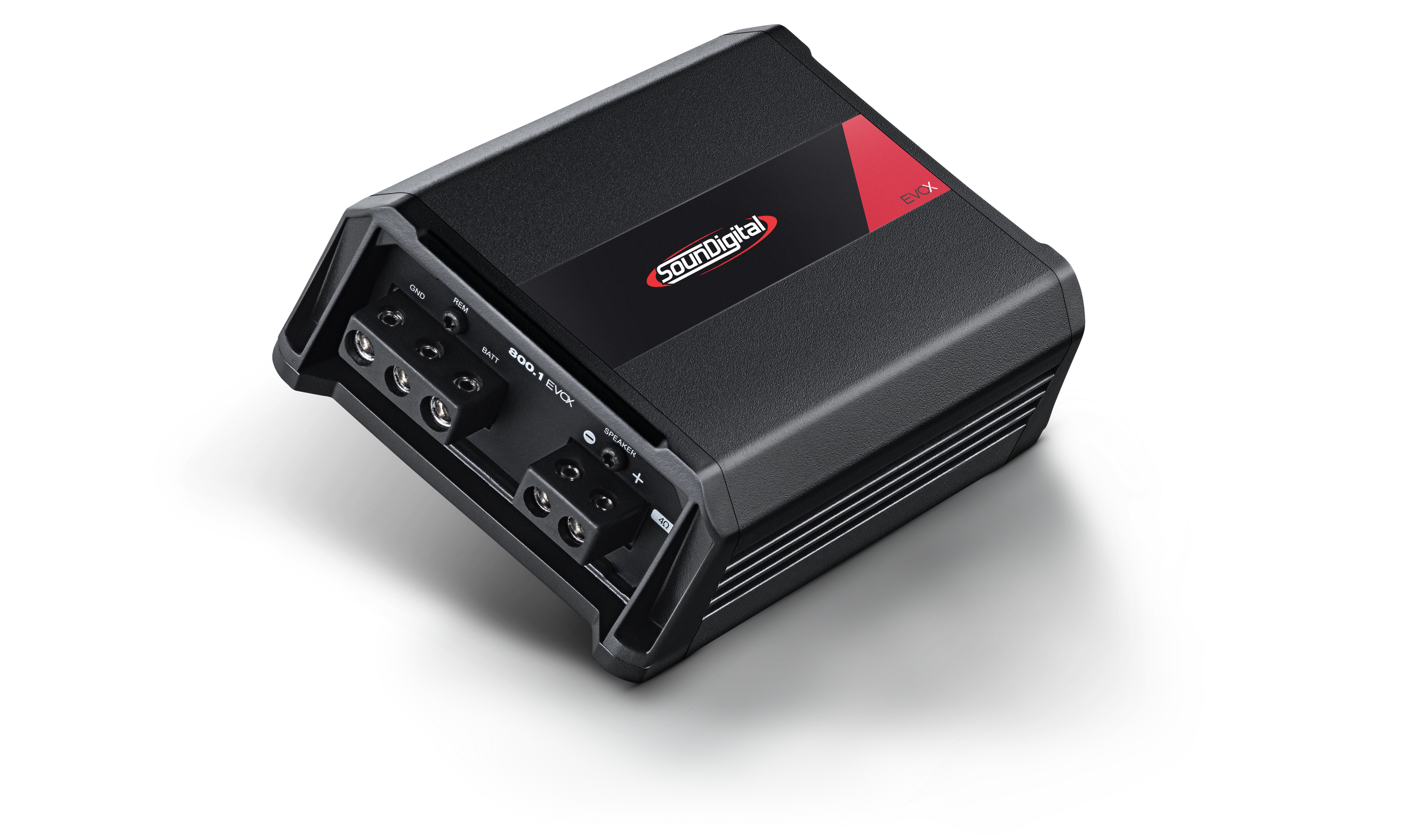

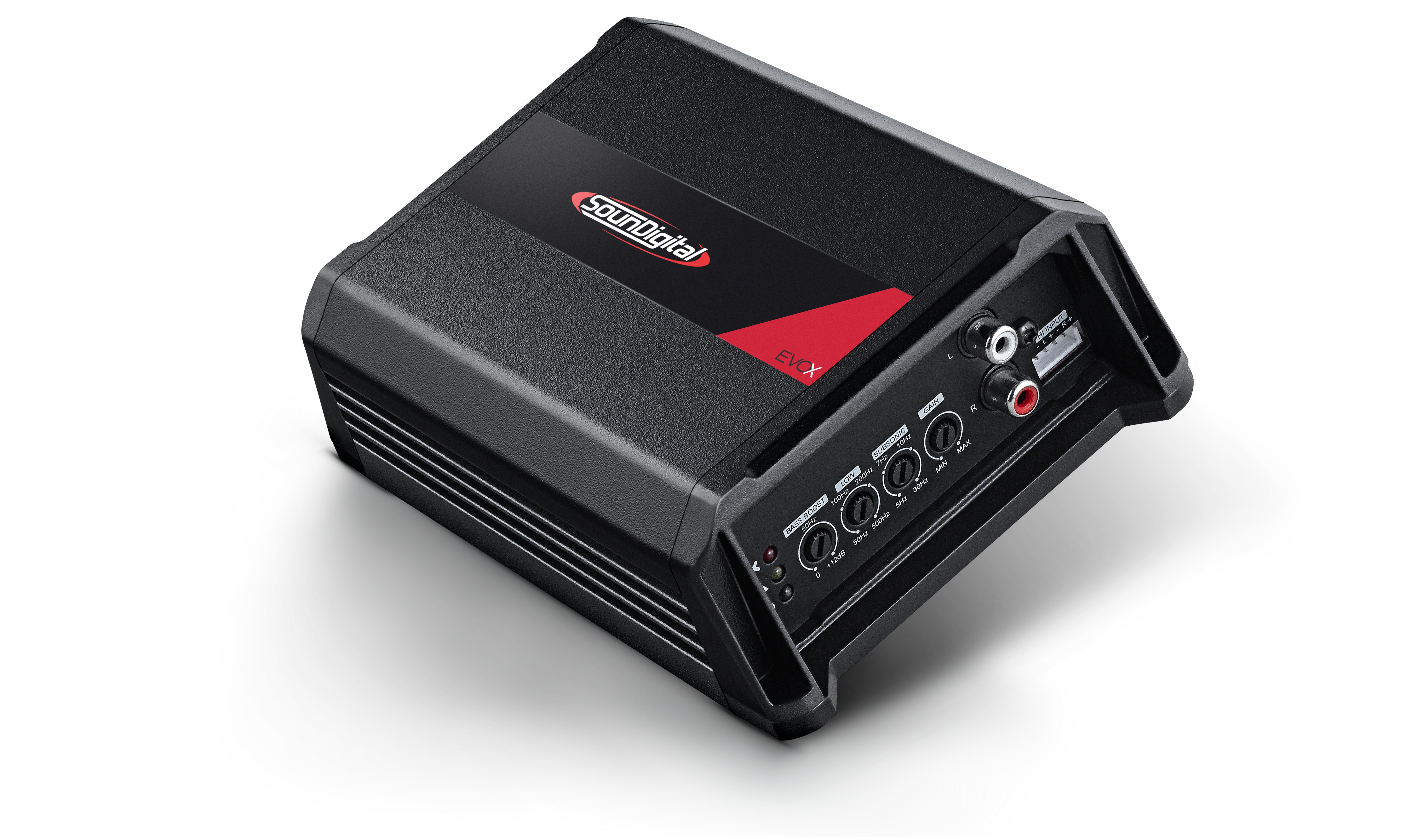

SounDigital 800.1 EVOX 4 Ohm
EAN: 7898644522407
SD800.1-4 EVOX
Mono amplifier
4 Ohm model
890W
Better circuit board
Better cooling than before
Read More
399,00 €
Description
Specifications
The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system. The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
Power @ 12.6V @ 4Ω: 1 X 800 WRMS
Power @ 12.6V @ 2Ω: N/A
Power @ 12.6V @ 1Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 892 WRMS
Power @ 14.4V @ 2Ω: N/A
Power @ 14.4V @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 38 A
Current Draw (Max): 74 A
Recommended Fuse (Music): 40 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 2.0 in
Product Dimensions: 14.8 x 11.3 x 5.1 cm
Älä kytke vahvistinta alle nimelliskuorman!
Do not run your amp under rated impedance!.
Power @ 12.6V @ 2Ω: N/A
Power @ 12.6V @ 1Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 892 WRMS
Power @ 14.4V @ 2Ω: N/A
Power @ 14.4V @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 38 A
Current Draw (Max): 74 A
Recommended Fuse (Music): 40 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 2.0 in
Product Dimensions: 14.8 x 11.3 x 5.1 cm
Älä kytke vahvistinta alle nimelliskuorman!
Do not run your amp under rated impedance!.
