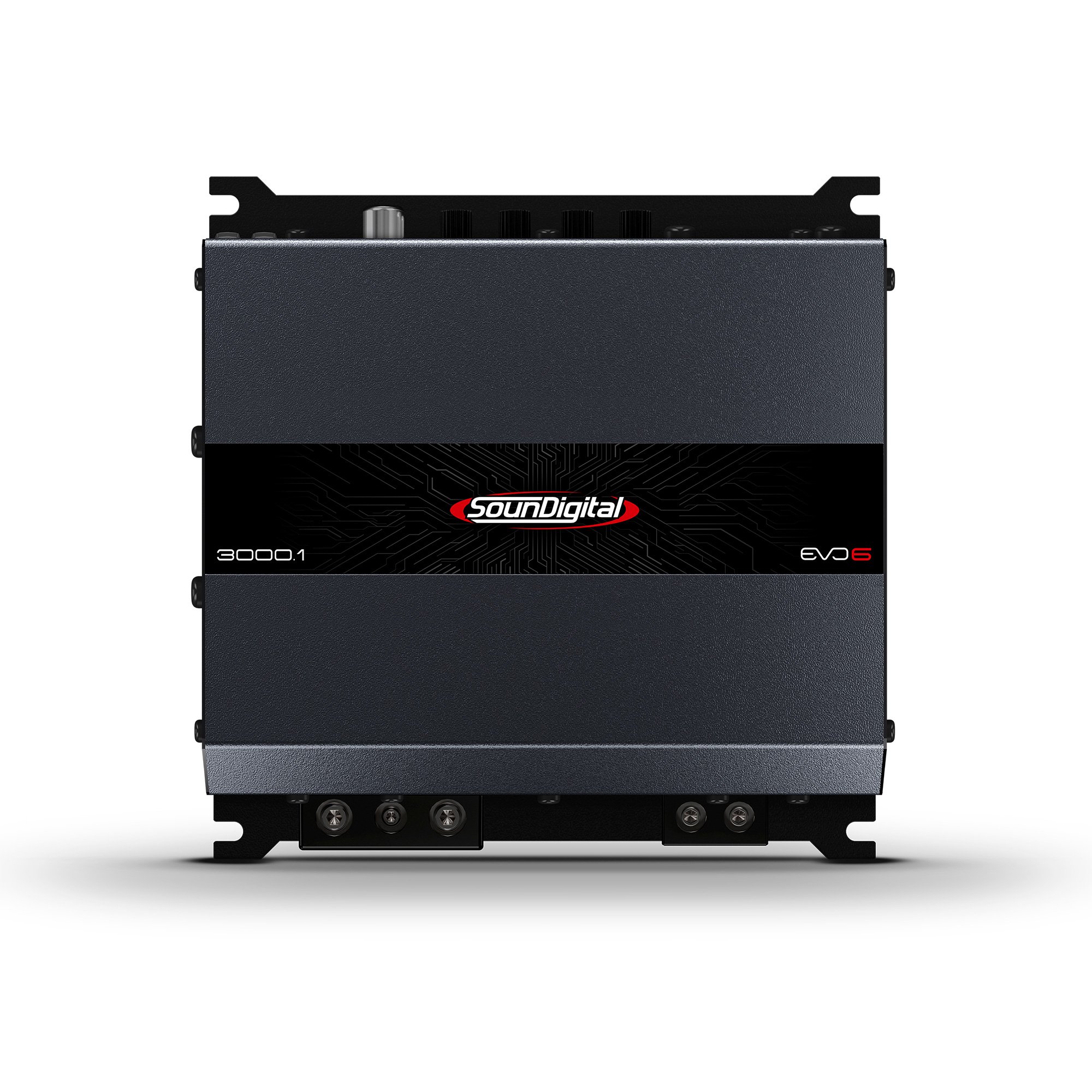

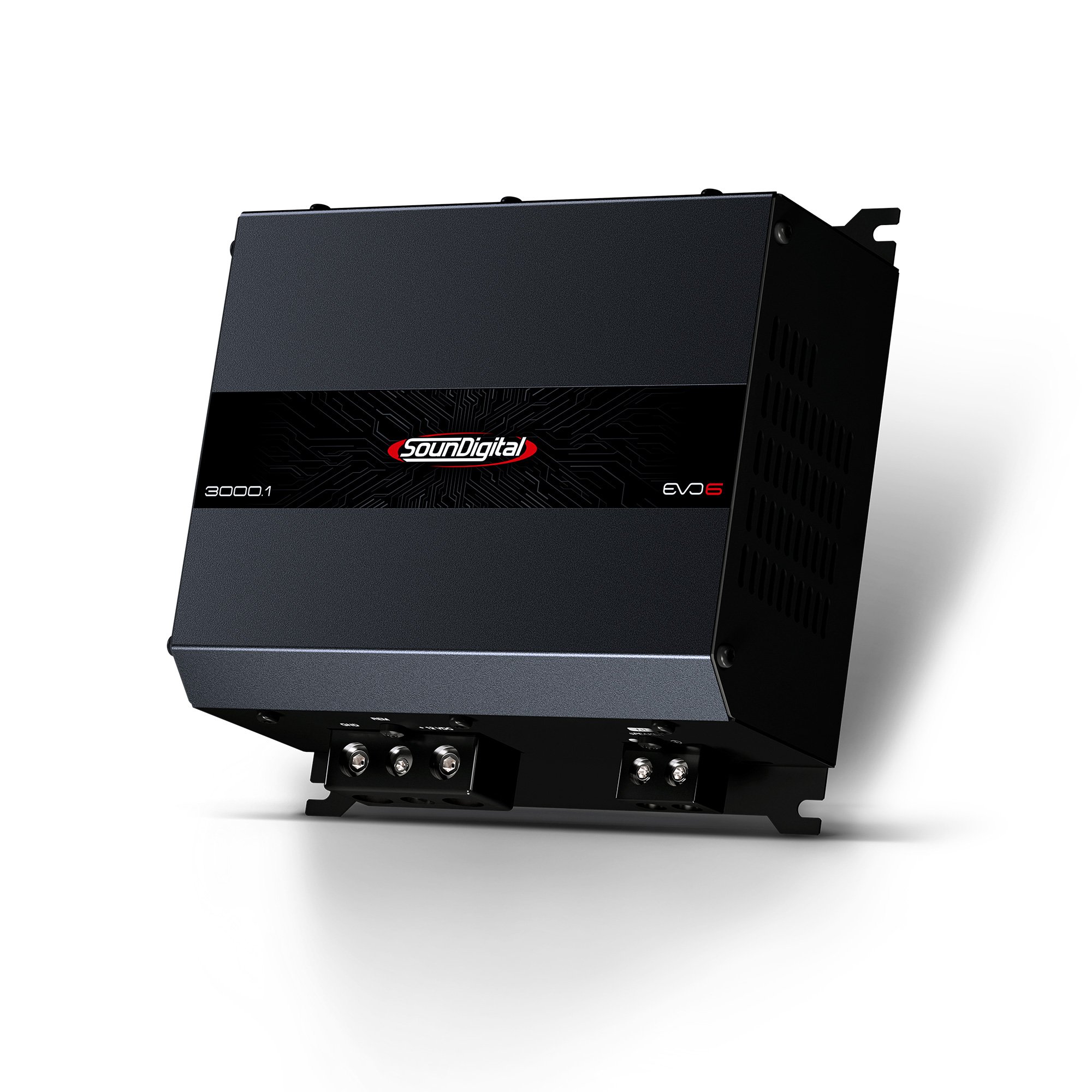

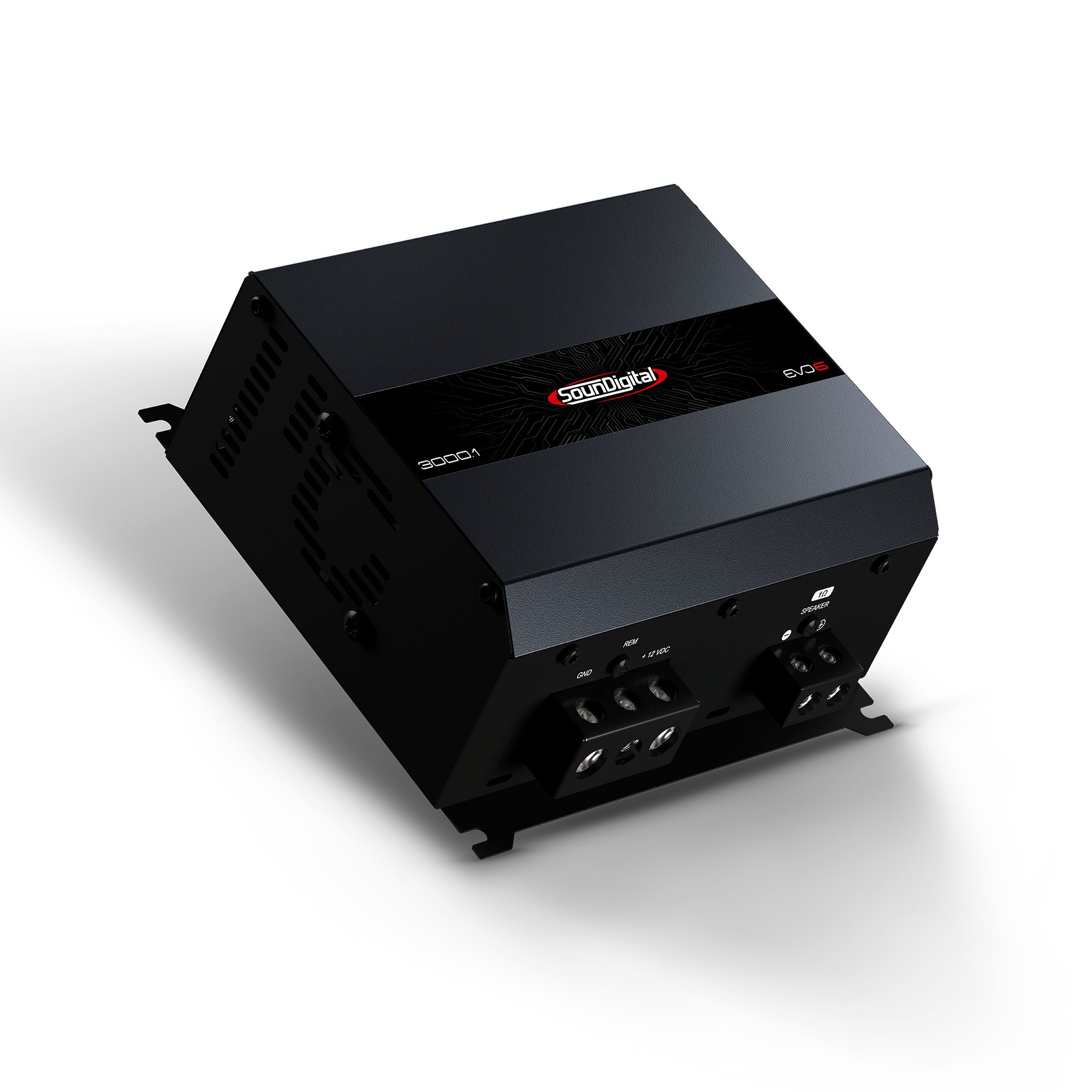

SounDigital 3000.1 EVO 6 - 4Ohm
SD3000.1-4 EVO6
1-channel amplifier
3000W
4 Ohm model
Small size
Read More
299,00 €
Description
Specifications
Manuals
The 3000.1EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 4Ω: 1 x 3000W RMS
Frequency Response (-3dB): 5Hz ~ 20kHz
Low Pass Filter: 80Hz ~ 20kHz
Damping Factor: 2000
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 10V – 16V
SNR: 90dB
Input Sensitivity: 0.2V ~ 2V
Current Draw (Music): 148A
Current Draw ( max ): 296A
Power Cable: 35mm² (2AWG)
Audio Output Cable: 6mm2
Recommended Fuse (Music): 150A
Recommended Battery: 150Ah
Width: 5.92 / 15,5 cm
Length: 5.80 / 14,7 cm
Height: 2.38 / 6,6 cm
Weight: 1.47 kg
Frequency Response (-3dB): 5Hz ~ 20kHz
Low Pass Filter: 80Hz ~ 20kHz
Damping Factor: 2000
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 10V – 16V
SNR: 90dB
Input Sensitivity: 0.2V ~ 2V
Current Draw (Music): 148A
Current Draw ( max ): 296A
Power Cable: 35mm² (2AWG)
Audio Output Cable: 6mm2
Recommended Fuse (Music): 150A
Recommended Battery: 150Ah
Width: 5.92 / 15,5 cm
Length: 5.80 / 14,7 cm
Height: 2.38 / 6,6 cm
Weight: 1.47 kg
