SounDigital 3000.1 BASSTRONIK - 1 Ohm
SD3000.1-1 BASSTRONIK
1-channel amplifier
3000W RMS!
1 Ohm model
Damping Factor: 2000
NEW better power supply
Designed for subwoofers / mid-basses
Read More
1 pcs
399,00 €
Description
Specifications
Manuals
The Basstronik series is designed for more powerful and direct bass reproduction.
This new series is designed for playing heavy subwoofers / mid-basses, which is why SounDigital has upgraded the power supply of the amplifiers to be the most biggest and most stable ever used in their amplifiers!

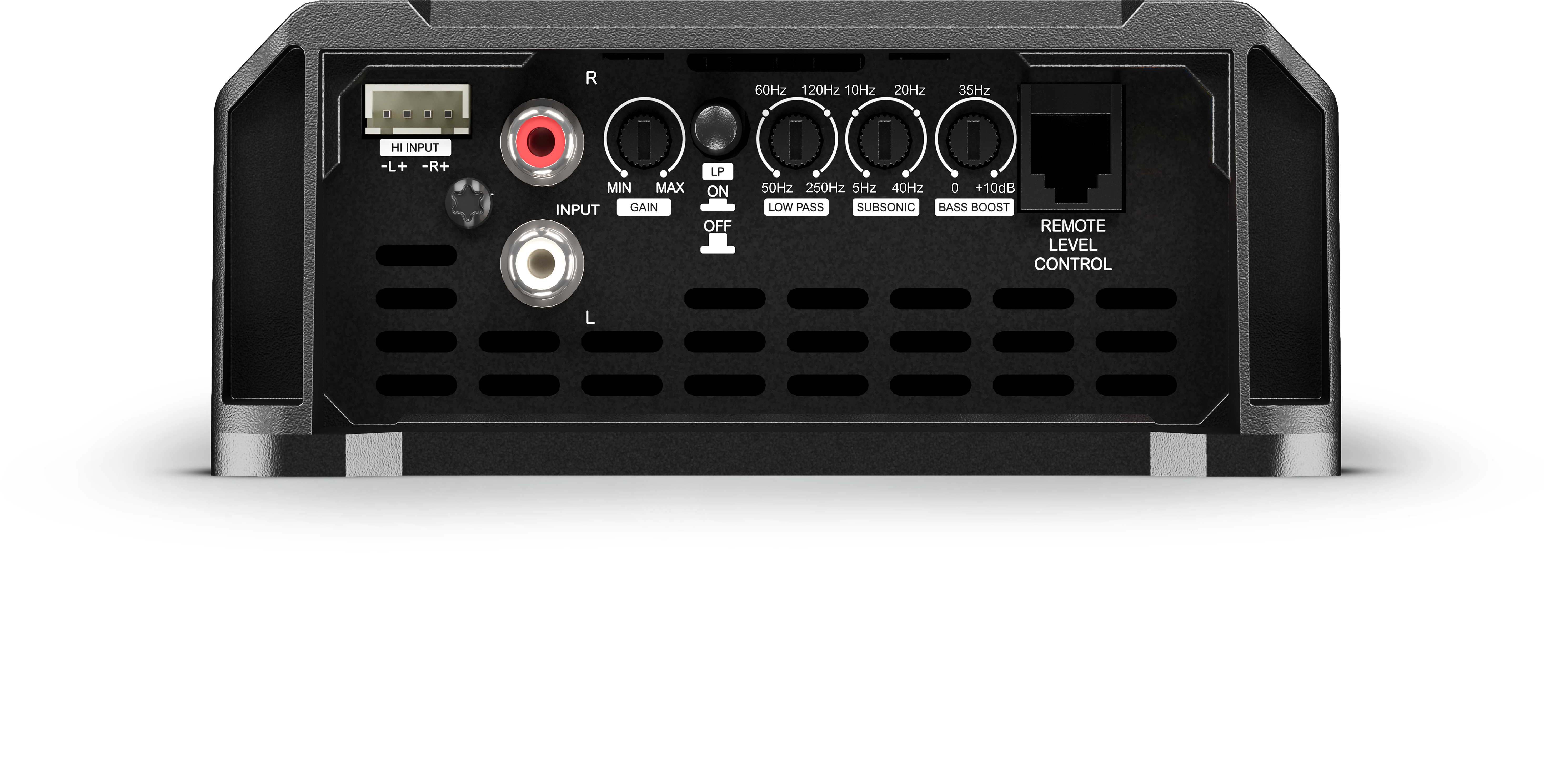

The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.
With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation.
The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere. Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.
This new series is designed for playing heavy subwoofers / mid-basses, which is why SounDigital has upgraded the power supply of the amplifiers to be the most biggest and most stable ever used in their amplifiers!
The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.
With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation.
The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere. Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.
Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1900W RMS
Power @ 4Ω: 1 X 1300W RMS
Frequency Response (-3dB):
5Hz ~ 20kHz
Low Pass Filter:
50Hz ~ 250Hz
Subsonic:
5Hz ~ 40Hz
Bass Boost:
0dB ~ 10dB @ 35Hz
Operating Voltage:
10V – 16V
SNR:
100dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.5V ~ 15V
Current Draw (Music):
151A
Current Draw (max):
302A
Total Efficiency:
79%
Damping Factor:
2000
Power cable size:
50mm²
Speaker cable size:
6mm²
Remote cable size:
1.5mm²
Recommended Fuse (Music):
160A
Recommended Battery:
160Ah
Width:
229mm / 9″
Length:
136.2mm / 5.4″
Height: 54.8mm / 2.2″
