AI-SONIC S2-A500.1
EAN: 6430042126293
S2-A500.1
Mono amplifier
500W
High-Level input
Designed in Finland
Read More
199,00 €
Description
Specifications
Manuals
Media

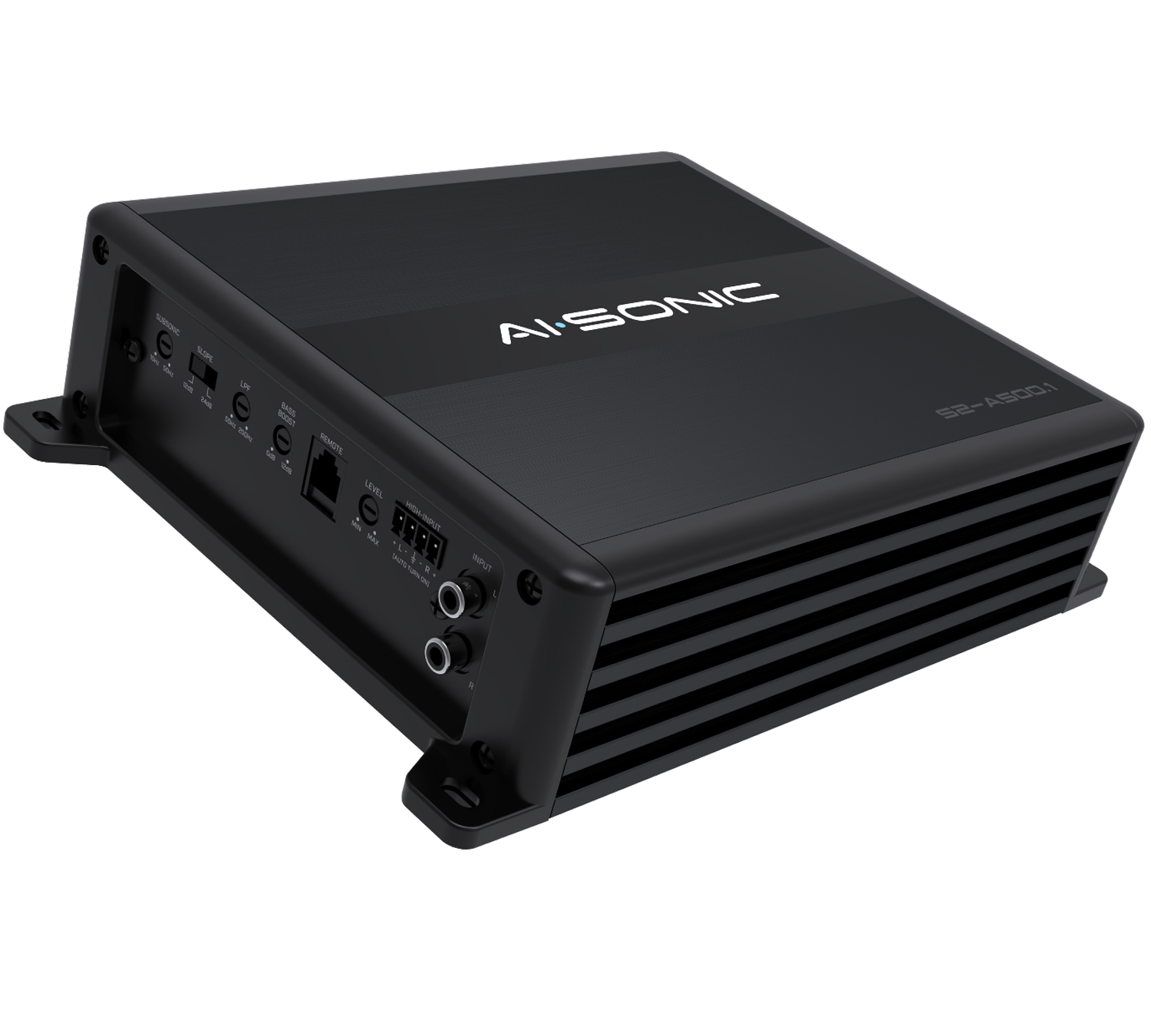

AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
RMS POWER (1ohm) 12v THD 0.5% 500W
RMS POWER (2ohm) 12v THD 0.5% 350W
RMS POWER (4ohm) 12v THD 0.5% 220W
T.H.D 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB/24dB /oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: 30A•2
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 57A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
L: 274mm / (10.8 IN).
