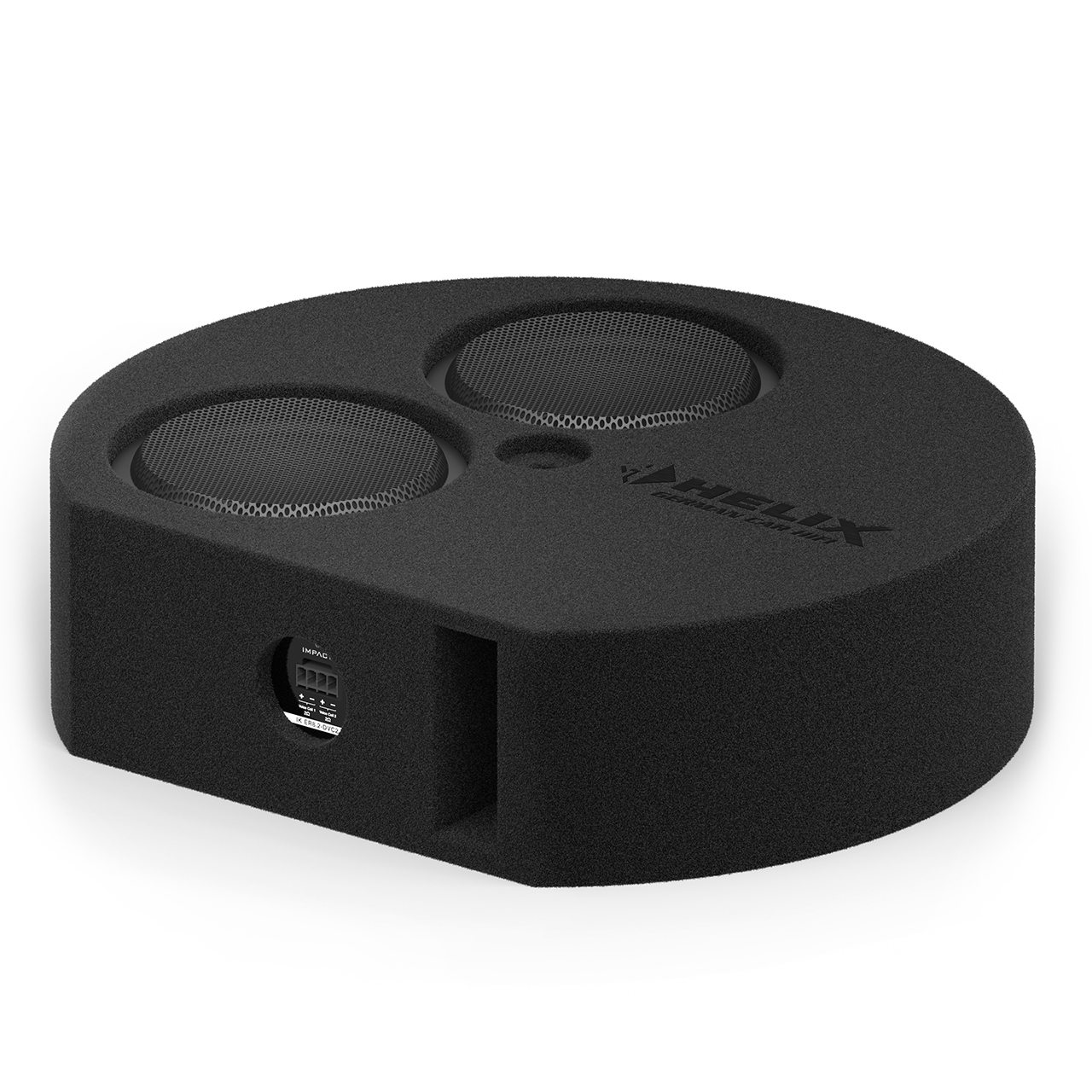

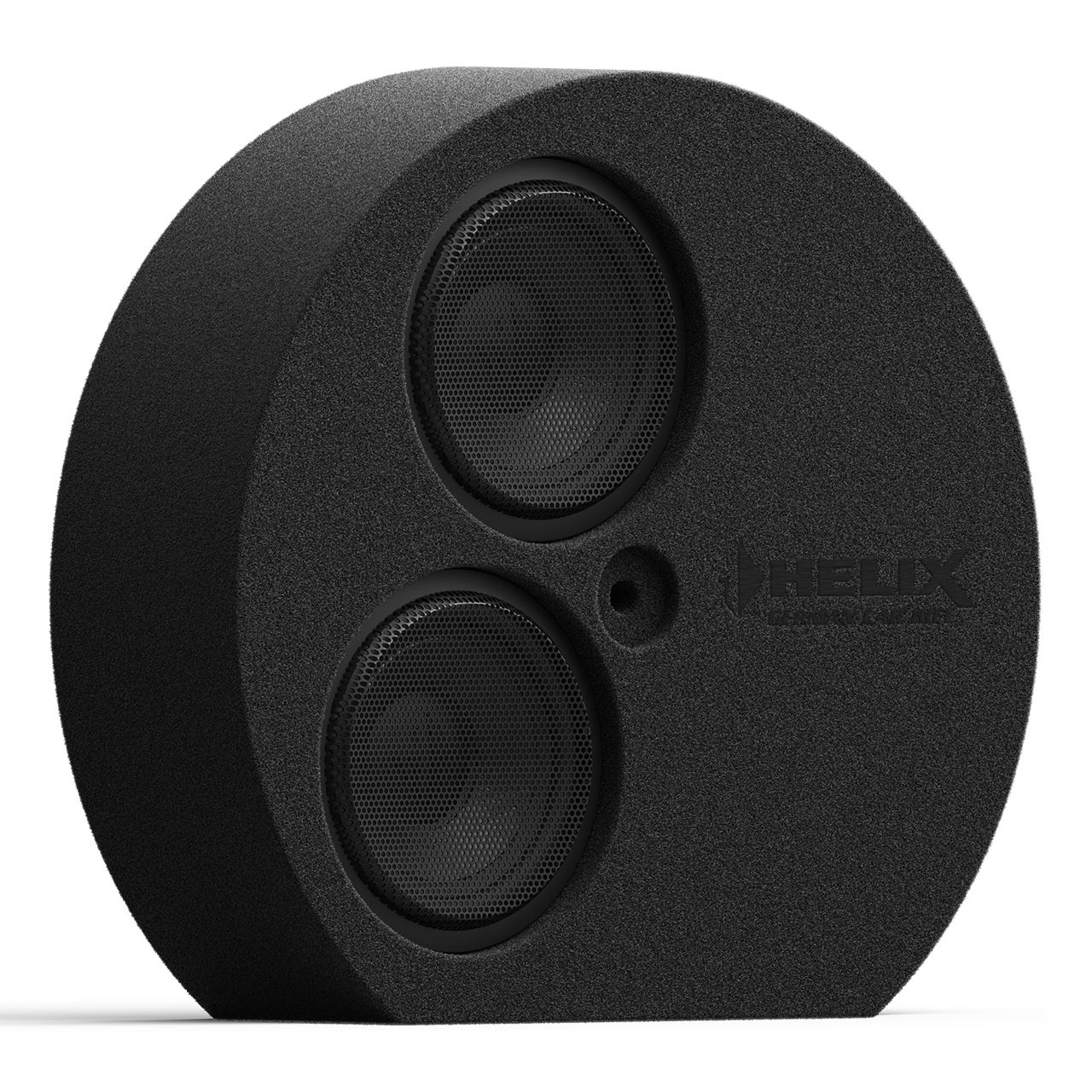

HELIX IK ER8.2-DVC2
EAN: 4057204335816
IK ER8.2-DVC2
2 x 8″ subwoofer
600W
2 x 2 / 1 x 4 / 1 x 1 Ohm
Reflekskotelo
Varapyörän tilalle
Read More
399,00 €
Description
Specifications
Manuals
Varapyörän tilalle sopiva refleksikotelo kahdella 8″ subwooferilla on erinomainen ratkaisu varsinkin nykyautoihin joissa harvoin on enää vararengasta ollenkaan.
Kotelotyyppi: Porttikotelo
Kotelotyyppi: Porttikotelo
Power handling RMS P 600 Watts
Recommended amplifier power RMS 150 - 600 Watts

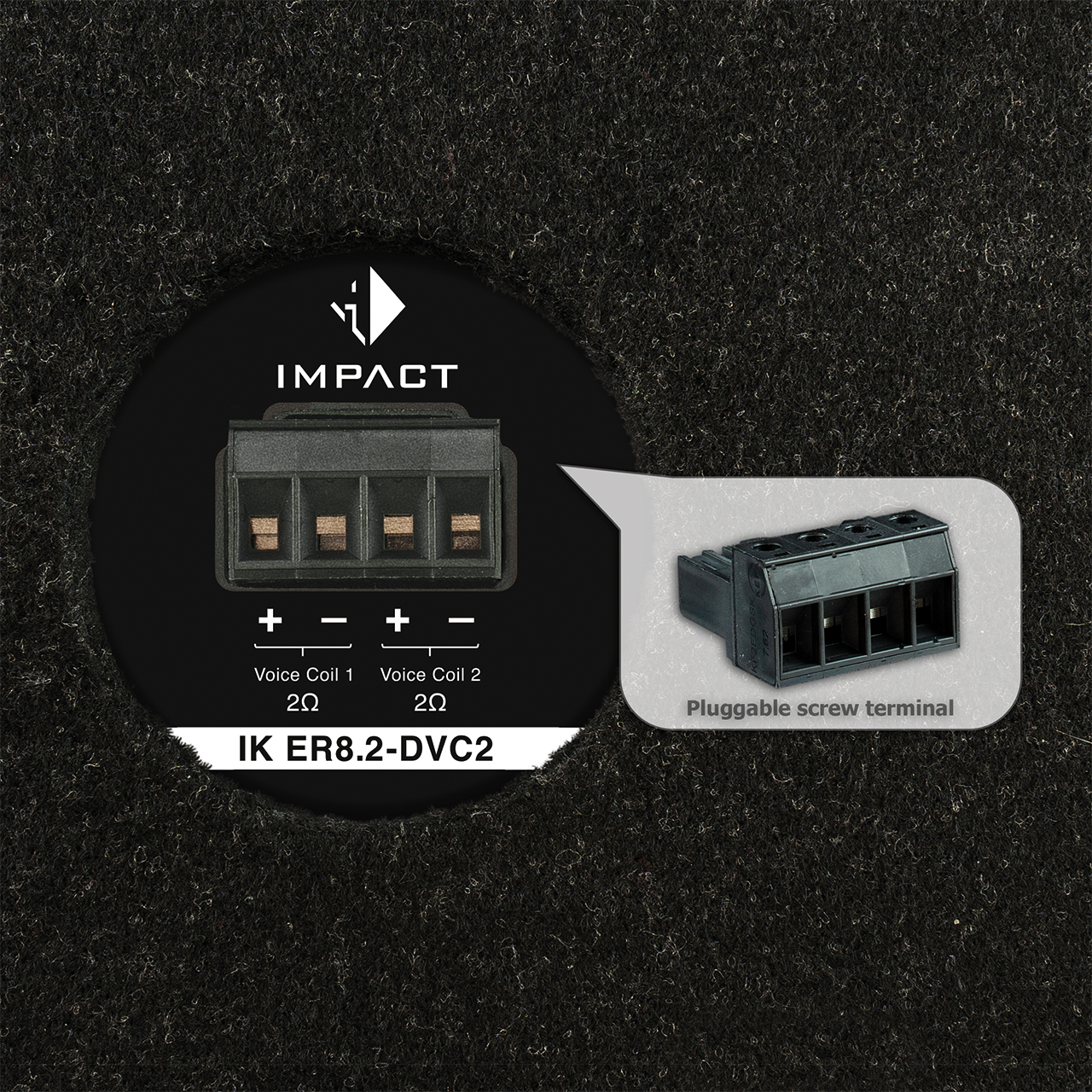

Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 41 Hz
Sensitivity
SPL
92 dB @ 2.83V / 1m
89 dB @ 1W / 1m
Dimensions (D x H) 580 x 160 mm /
22.8 x 6.3”
Integrated subwoofer chassis HELIX IK W8-SVC2
Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0
EQ filter: 60 Hz / Q = 1.0 / -1 dB
Recommended amplifier power RMS 150 - 600 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 41 Hz
Sensitivity
SPL
92 dB @ 2.83V / 1m
89 dB @ 1W / 1m
Dimensions (D x H) 580 x 160 mm /
22.8 x 6.3”
Integrated subwoofer chassis HELIX IK W8-SVC2
Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0
EQ filter: 60 Hz / Q = 1.0 / -1 dB
