Helix IK S12-SVC2 ( 1x2Ohm )

EAN: 4057204333324
IK S12-SVC2

12″ Helix flat subwoofer 1x2Ohm

Read More
239,00 €
Weight: 6.50 kg
In stock
Any questions? Contact usinfo@audioimport.fi
Description
Specifications
HELIX IK S12
Flat dimensions – deep bass
With the shallow HELIX IK S subwoofers, the realization of particularly flat and compact enclosure designs shouldn’t be a problem anymore. Its extremely low installation depth opens up new installation possibilities that do not require making any acoustic compromises at all. Additionally, thanks to the use of large voice coils and its low resonant frequency, the HELIX IK S series delivers an absolutely stunning bass performance, which is in no way inferior to larger dimensioned woofers.

Smart down to the very last detail
The enormously stiff sandwich paper cone in conjunction with our heavy-duty drive system easily converts amplifier power into powerful sound pressure without any compression effects, while simultaneously demonstrating finesse when it comes to more subtle beats. A special highlight: the magnet system has a threaded hole on the back and thus allows the woofer to be fixed to the back panel of the enclosure. Since every millimeter of depth counts in flat constructions, enclosure vibrations are effectively reduced – even with thin walls.

Flexible connection
Designed as a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) variant, you can find the right low bass specialist for any amplifier configuration to get the maximum performance out of it.

″All inclusive″ for self-made enthusiasts

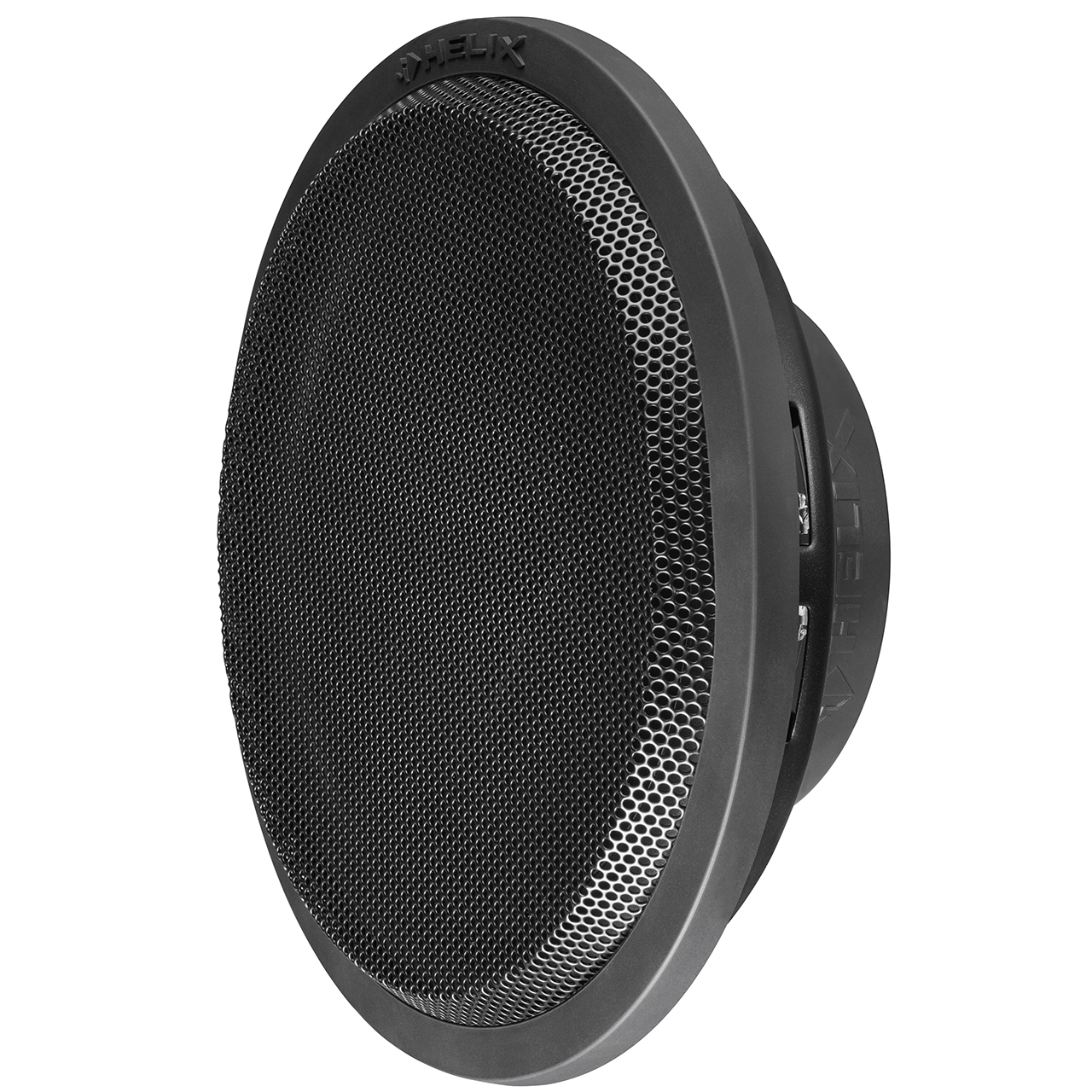

In addition to the high-quality connection terminal with gold-plated screw terminals, a solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency or DSP settings in our technical data sheet.

Features

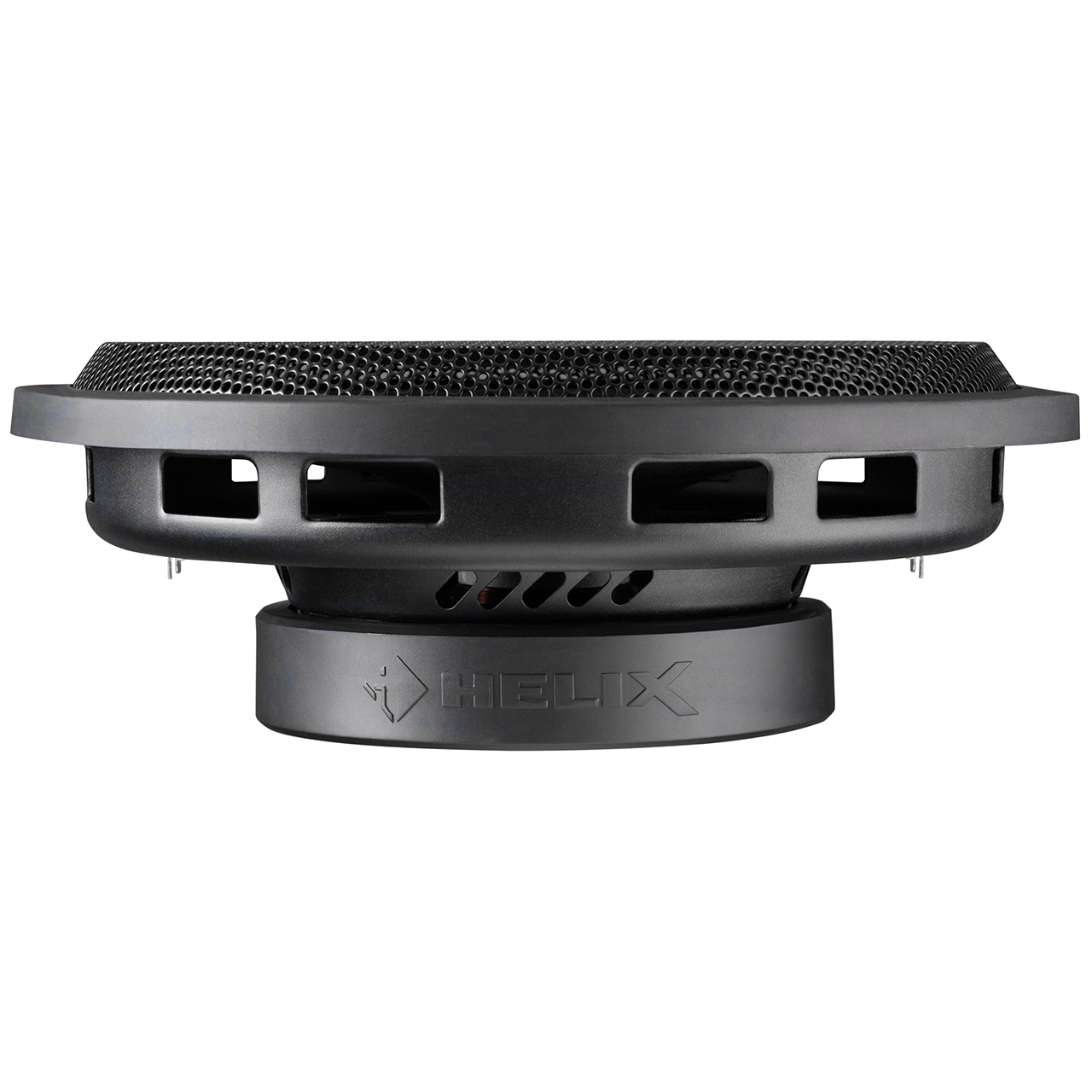

Chassis with particularly low installation depth
optimized for compact and shallow enclosure constructions
1 x 2 Ohms dual voice coil for flexible system configuration
Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations

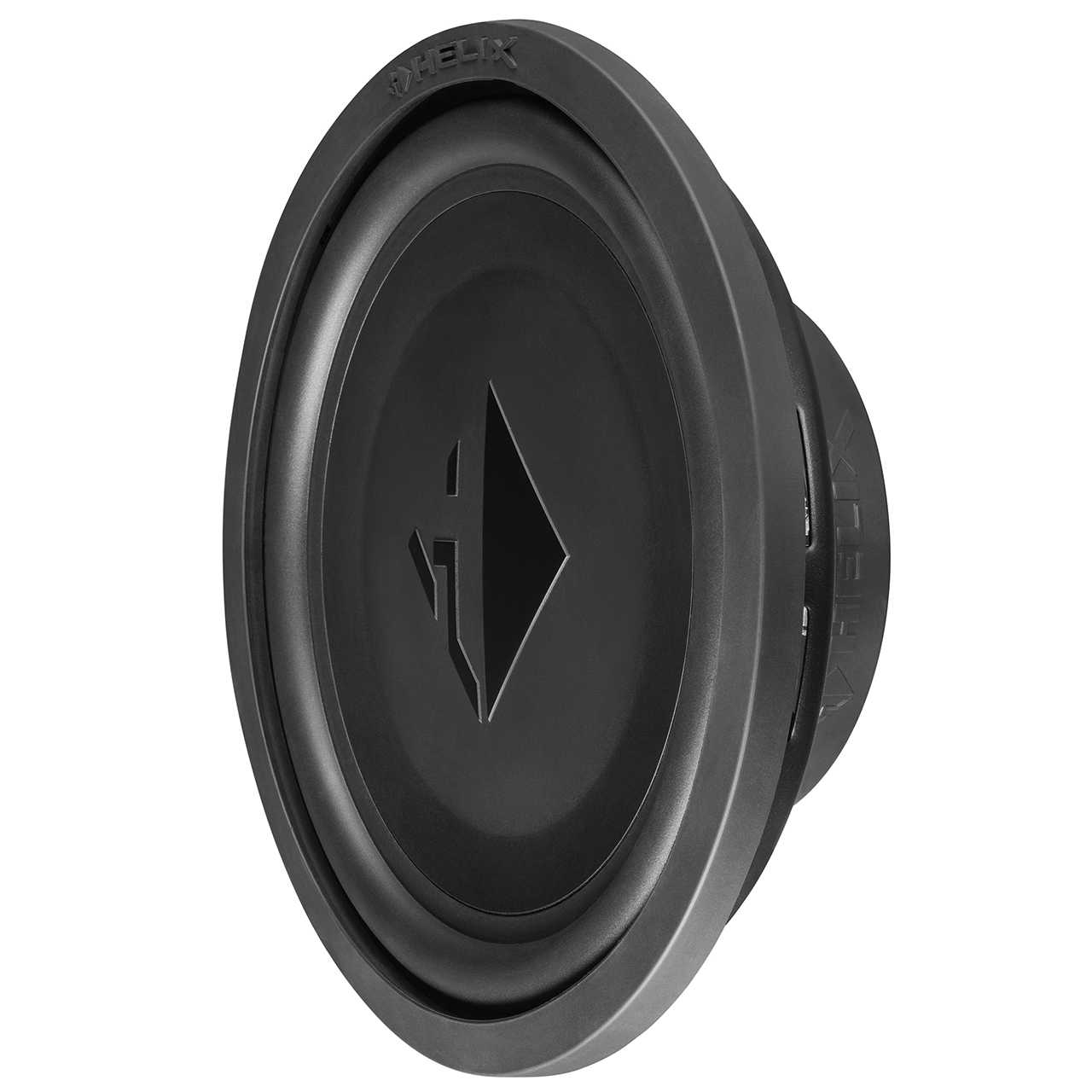

Extremely stiff sandwich paper cone
Long-excursion rubber surround for highest mechanical rating
Rugged magnet cover with HELIX lettering for perfect magnet protection
Enclosure connection terminal, grille and gasket included in delivery
Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 1 x 2 Ω
Resonance frequency Fs 36 Hz
Mechanical Q factor Qms 5.41
Electrical Q factor Qes 0.52
Total Q factor Qts 0.48
Compliance Cms 95 μm/N
Equivalent air volume Vas 40 L
Force factor B*I 17.2 Tm
Sensitivity SPL 91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m
Cone area Sd 523 cm²
Moving mass Mms 220 g
Cone material Sandwich paper cone
Mechanical resistance Rms 7.9 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44″
Installation diameter ø 276.8 mm / 10.90″
Installation depth 95.5 mm / 3.76″

Recommended enclosure volumes

Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 35 Hz cut-off frequency and Q = 1.5
additional EQ filter 75 Hz / Q = 1.5 / -3 dB

Vented box
Net volume 40 L
Port diameter ø 100 mm / 3.94″
Port area 78 cm²
Port length 32 cm / 12.6″
Port tuning frequency Fb 36 Hz
Lower limiting frequency (-3dB) 37 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 36 Hz cut-off frequency and Q = 1.0
additional EQ filter 75 Hz / Q = 0.7 / -2 dB

Scope of delivery
1 x Subwoofer HELIX IK S12-DVC2
1x Grille
1 x Gasket
1x Enclosure connecting terminal
1 x Data sheet
