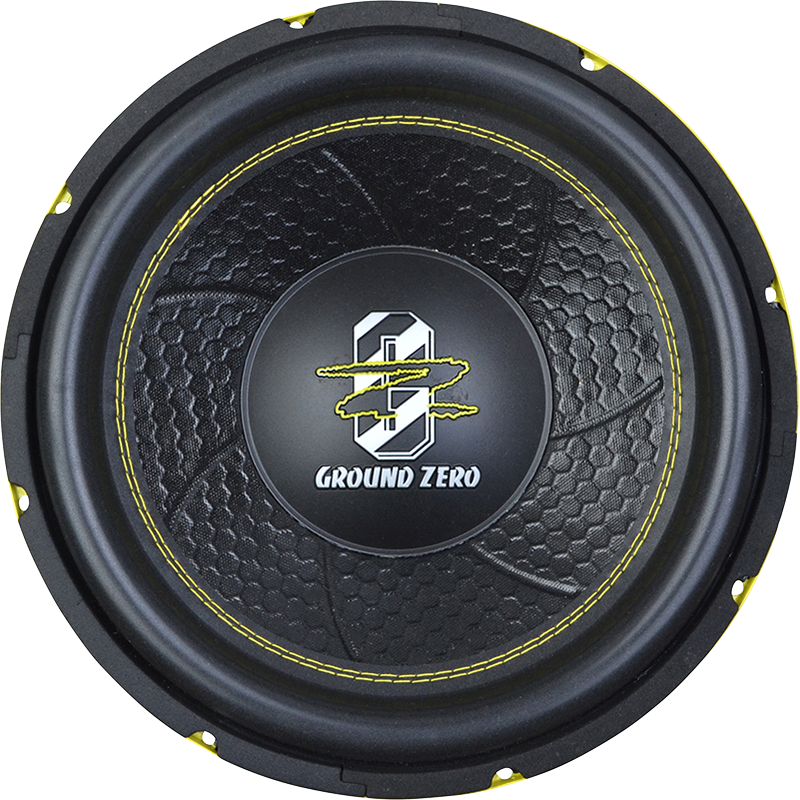

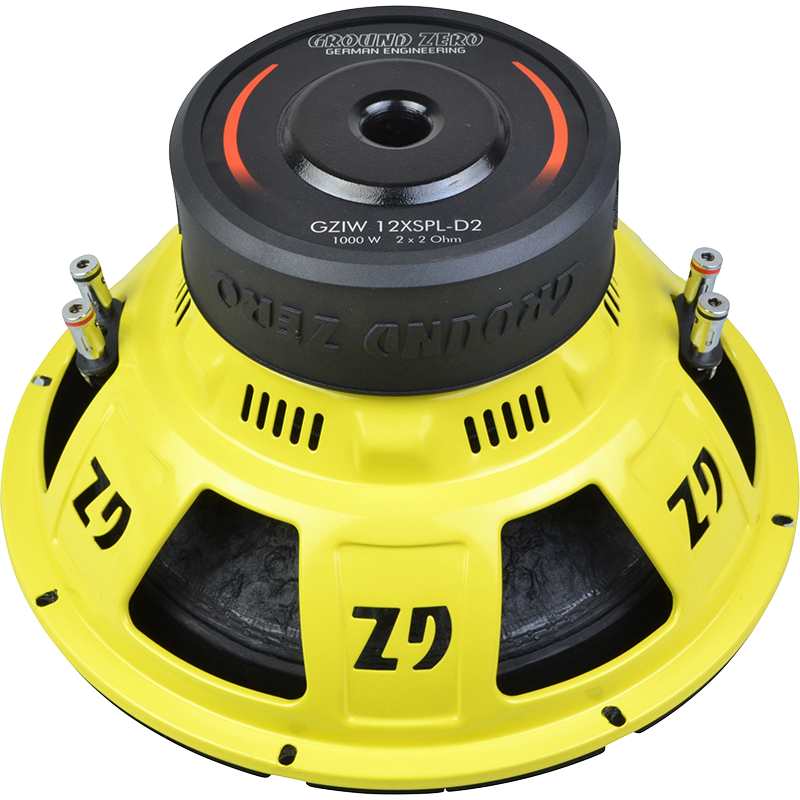

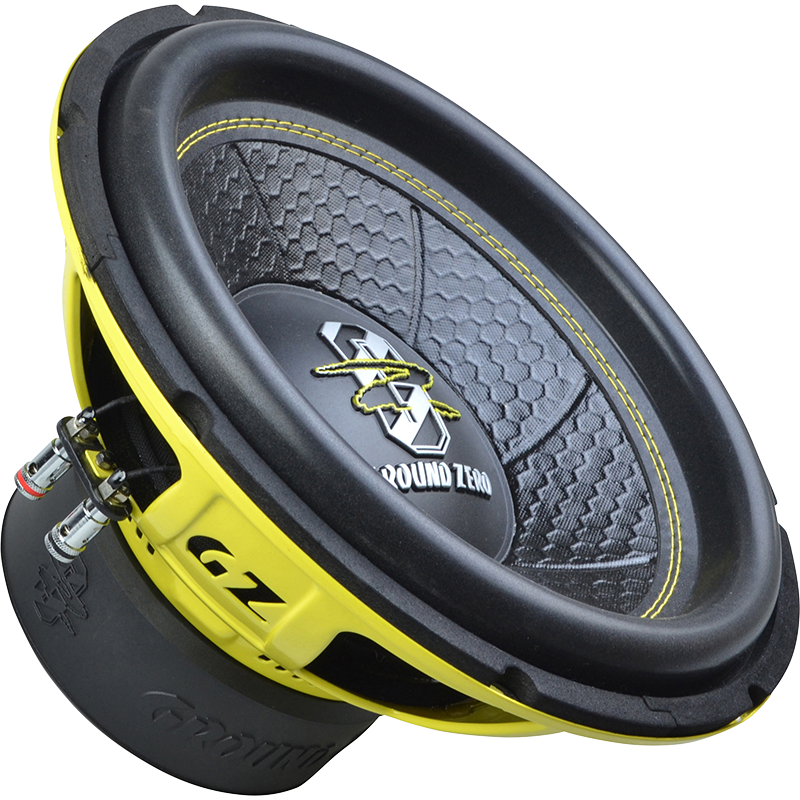

Ground Zero GZIW 12XSPL-D2
EAN: 4037072023664
GZIW 12XSPL-D2
12″
XSPL-subwoofer
1000W
2.5″ voice coil
Read More
159,00 €
Description
Specifications
Manuals
12″ High-power XSPL subwoofer
Klippel optimized
New reinforced paper cone with 3D honeycomp structure
2.5″ copper voice coil
High-roll sandwich surround
progressive 2-layer spider
Push terminals
Don´t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Klippel optimized
New reinforced paper cone with 3D honeycomp structure
2.5″ copper voice coil
High-roll sandwich surround
progressive 2-layer spider
Push terminals
Don´t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
- 12″ XSPL Subwoofer
- Progressive 2-layer spider
- Voice coil 63 mm / 2.5″
- Impedance 2 x 2 Ohm
- Re 4.33 Ohm
- Fs 32,5 Hz
- Qms 10.76
- Qes 0.79
- Qts 0.73
- Vas 40.4 L
- Le 2.48 mH
- Mms 231 gr
- Bl 15.9
- Xmax 34 mm / 1.34″
- Effiency ( SPL 1w / 1m )
- Power handling ( SPL ) 1000 Watts
- Rec. amplifier power 500 - 1000 Watts
- Outer diameter 310 mm / 12.2″
- Mounting cut out 285 mm / 11.22″
- Mounting depth 162 mm / 6.38″
Recommended enclosures:
- Vented 45L net
- Port 10cm / 4″, length 21cm
- Bandpass ( 4th order ) 25L net sealed / 40L net vented
- Port 10cm / 4″, length 11cm
- Tuning frequency Fb 57 Hz
-Bandwith 35 - 100 Hz.
- Progressive 2-layer spider
- Voice coil 63 mm / 2.5″
- Impedance 2 x 2 Ohm
- Re 4.33 Ohm
- Fs 32,5 Hz
- Qms 10.76
- Qes 0.79
- Qts 0.73
- Vas 40.4 L
- Le 2.48 mH
- Mms 231 gr
- Bl 15.9
- Xmax 34 mm / 1.34″
- Effiency ( SPL 1w / 1m )
- Power handling ( SPL ) 1000 Watts
- Rec. amplifier power 500 - 1000 Watts
- Outer diameter 310 mm / 12.2″
- Mounting cut out 285 mm / 11.22″
- Mounting depth 162 mm / 6.38″
Recommended enclosures:
- Vented 45L net
- Port 10cm / 4″, length 21cm
- Bandpass ( 4th order ) 25L net sealed / 40L net vented
- Port 10cm / 4″, length 11cm
- Tuning frequency Fb 57 Hz
-Bandwith 35 - 100 Hz.
