DD Audio 9912B D0.5 ESP

DD9912B-D0.5 ESP

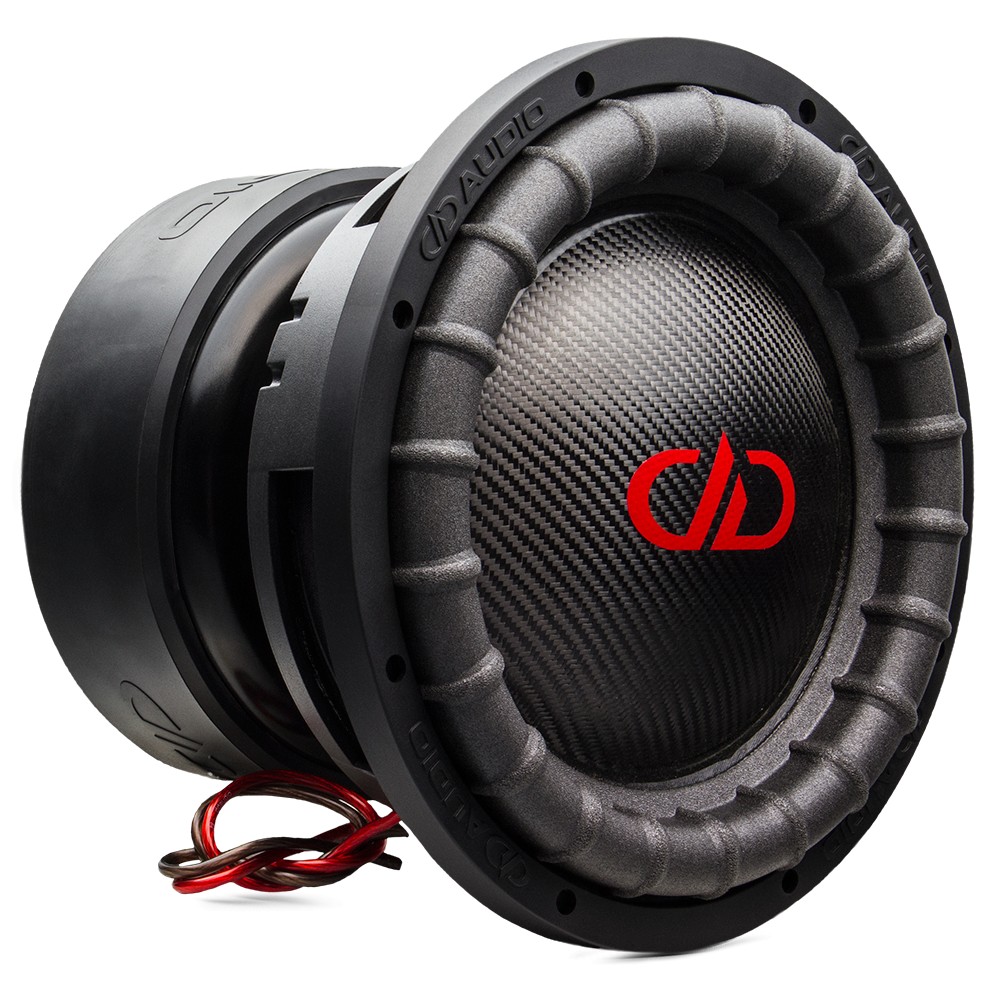

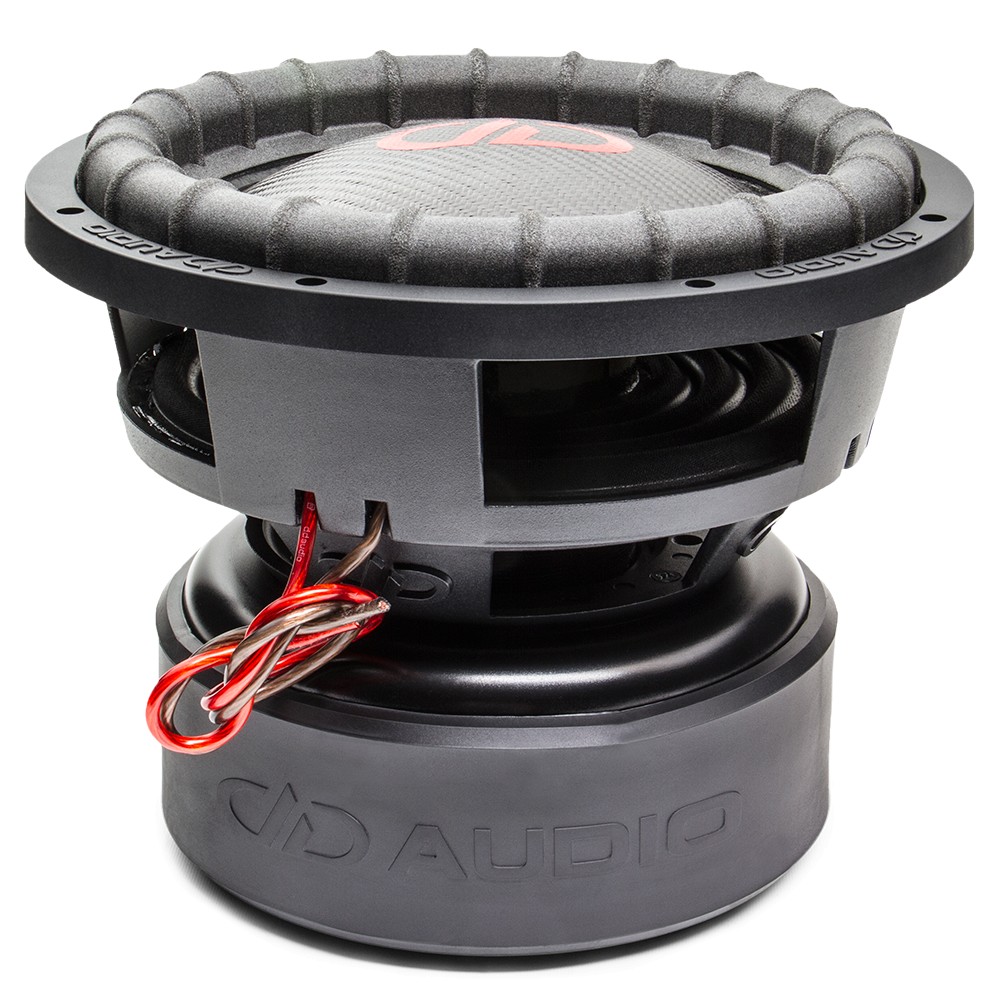

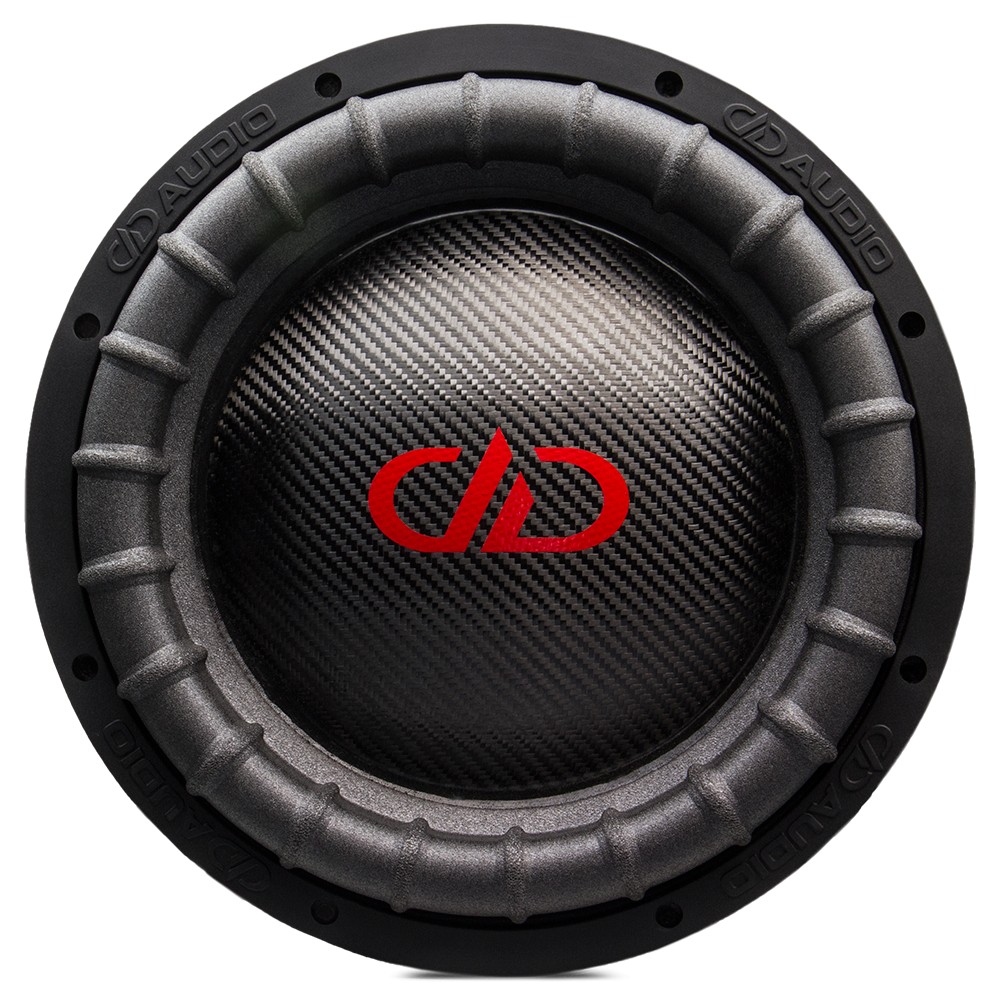

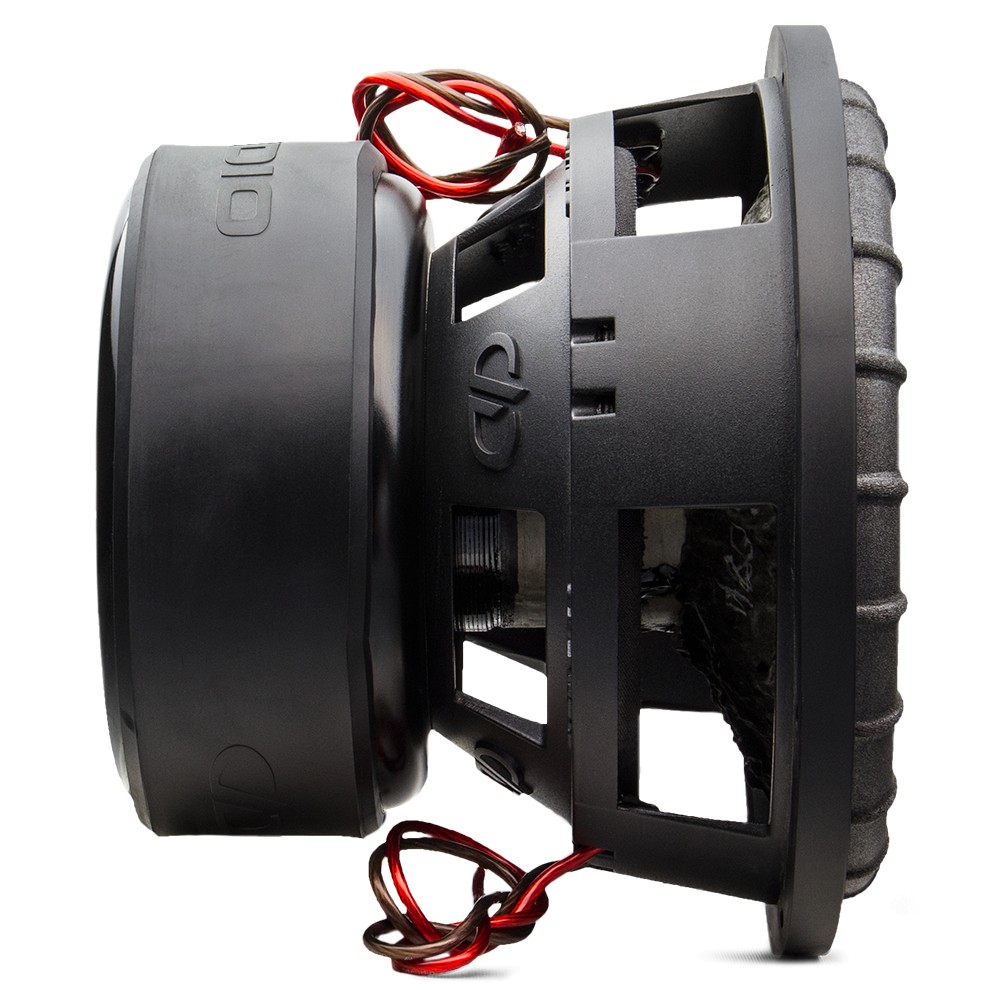

DD Audio 12″ ESP-subwoofer with 4″ voice coil

Read More
1 290,00 €
Weight: 0.00 kg
Back order
Any questions? Contact usinfo@audioimport.fi
Description
Specifications
The 9900s are the go to subwoofers for the demanding bassaholic with a profound interest in physics. Entertaining minds will revel in the endless system design possibilities deliverable with these precision low-frequency devices.

Originally coined The Beast, the 9900s first appeared on the market in the early 2000s. It took a brief hiatus, but now it’s back and more beastly than ever. The latest iteration was developed in response to the recent explosion in ultra-low-frequency music. These subwoofers were designed to provide long-term power handling, with accuracy, and high excursion capabilities. It’s been optimized for a 1500 – 2500 watt power band with the ability able to handle bursts of up to 10,000 watts. One look at the 9900 motor and you see why we call it the beast. It boasts 3 inches of magnet cross-section, over a 10″ OD, and weighs in at 70 pounds (motor only). The traditionally tight DD magnet gap drives a 4″ flat wound aluminum voice coil to a peak excursion in excess of 3 inches while keeping enough turns in the gap to maintain power and control.

The 9900 Series features our Evolution Subwoofer Package (ESP). ESP equipped drivers sport larger diameter suspensions and deeper frames than standard subs and exclusive surround and cone designs. ESP subs are truly built to maximize performance in their designated size class.

The 9900 Series comes standard with an oversized dry finish black composite dust cap, red logo, and treated pulp cone, but it can be optioned out with alternative composite dust caps, composite cones, powder coated frames, supercharging, and a multitude of logo options to give your sub a personalized look and/or added performance for a specific application.
-15″ subwoofer
- cast frame
- 2 x 0.5 ohm voicecoil
- magnet weight 31,7 kg
- 4″ voice coil diameter
- driver displacement: 8,8 liter
- recommended ported enclosure 50-80 liters ( NET )
- power handling 2500 W RMS
- peak power handling 10 000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0,466
- Fs: 37,01 Hz
- Vas: 26,16 liters
- mounting depth 247 mm
- cutout diameter 310 mm.
