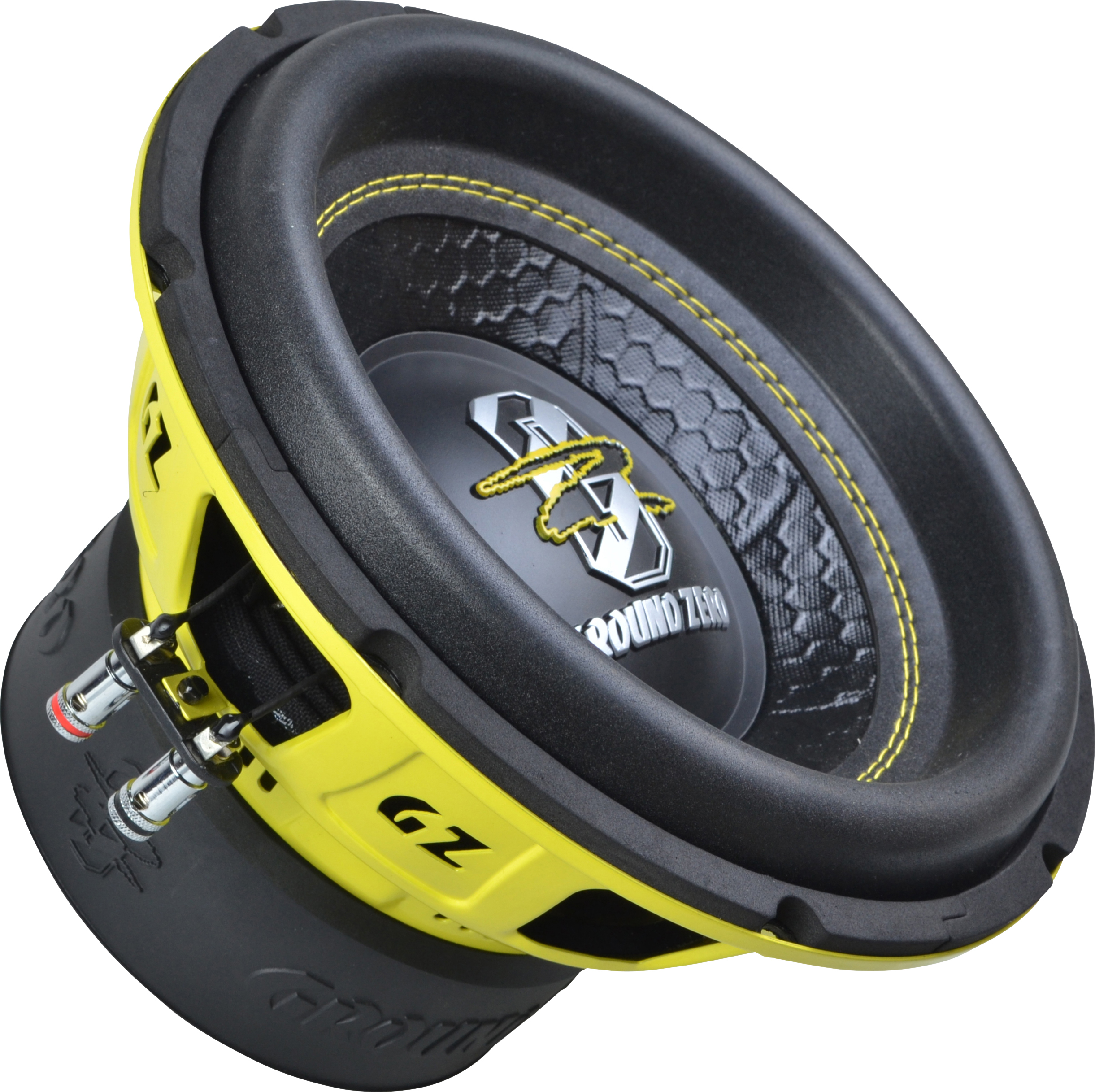

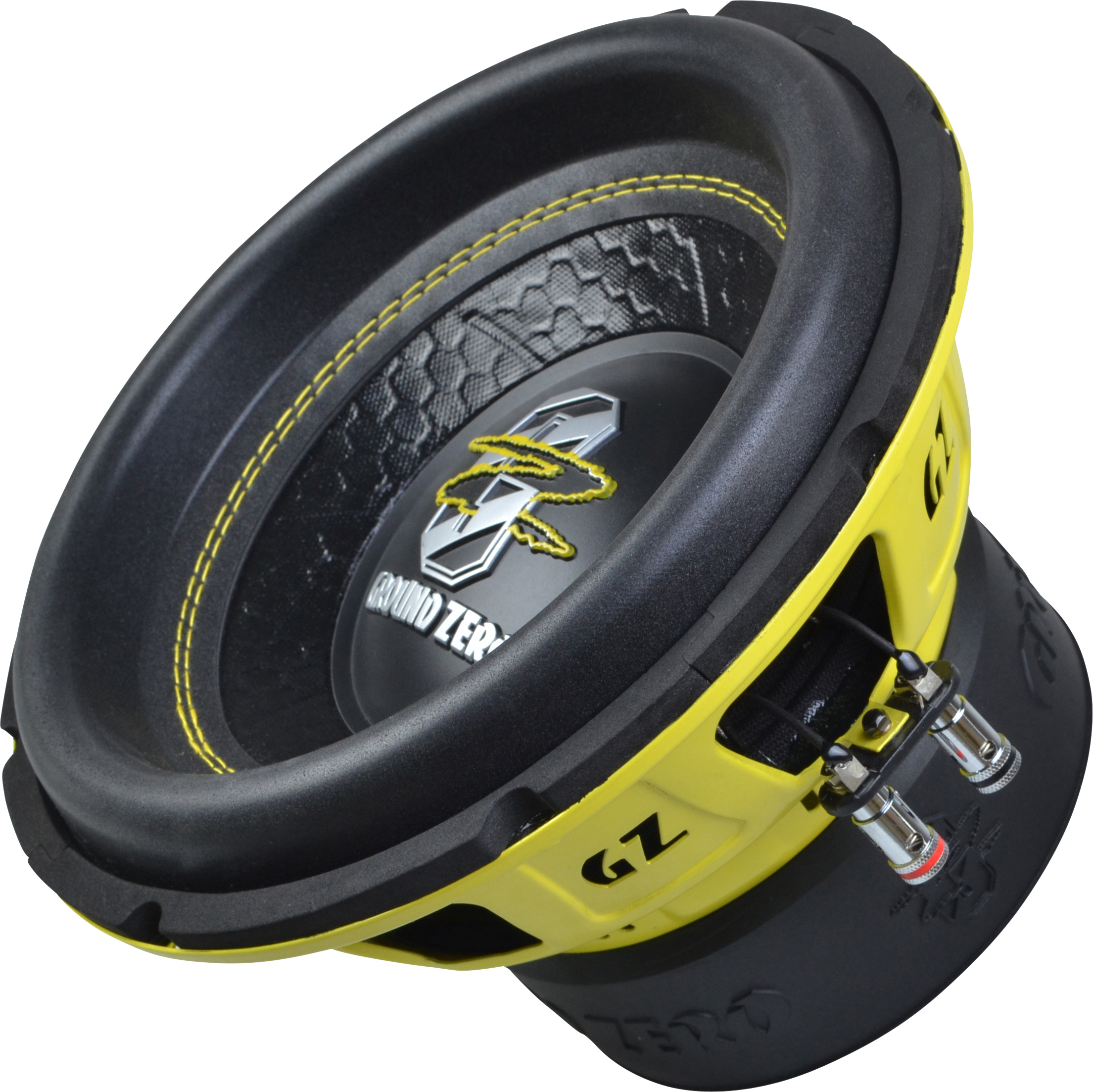

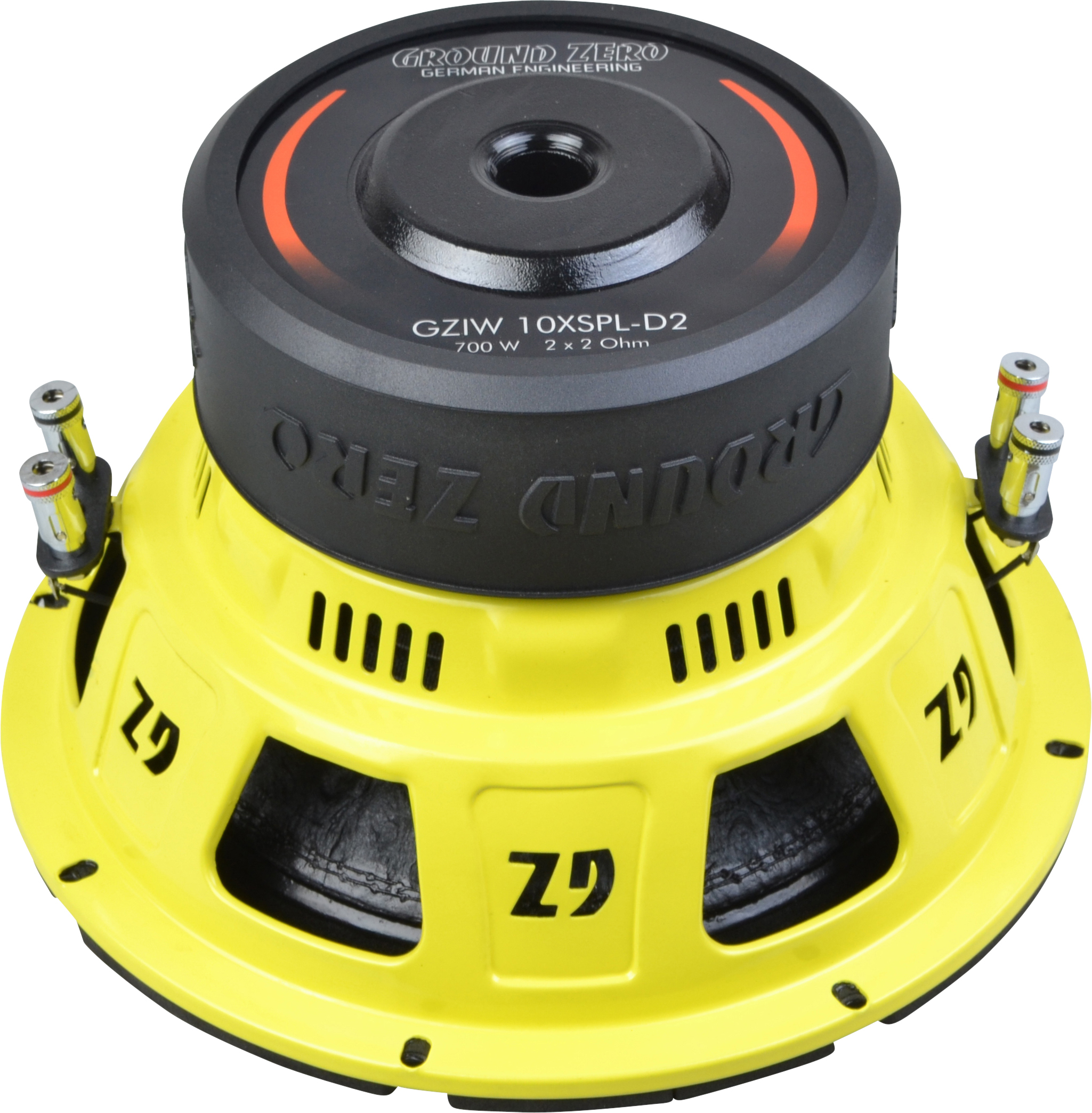

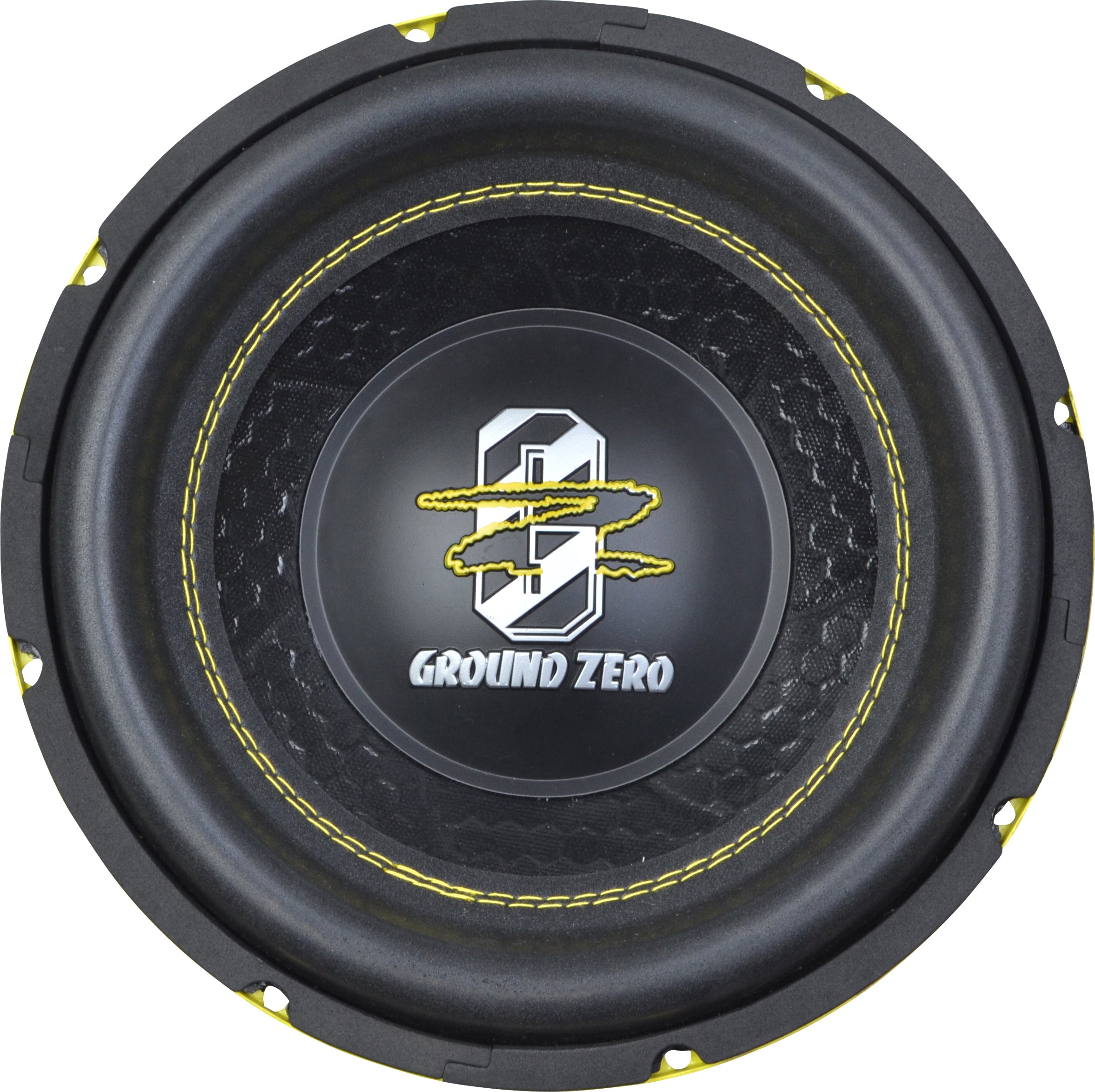

Ground Zero GZIW 10XSPL-D2
EAN: 4037072023657
GZIW 10XSPL-D2
10″
SPL-subwoofer
700W
2.5″ voice coil
Read More
149,00 €
Description
Specifications
Manuals
High power 10″ SPL-subwoofer
Klippel optimized
Reinforced paper cone with 3D honeycomb structure
2.5″ copper voice coil
High-roll sandwich surround
Progressive 2-layer spider
Push terminals
Don´t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Klippel optimized
Reinforced paper cone with 3D honeycomb structure
2.5″ copper voice coil
High-roll sandwich surround
Progressive 2-layer spider
Push terminals
Don´t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Voice coil: 63mm / 2.5″
Impedance: 2x2 Ohm
Re: 3.94 Ohm
Fs: 36.2 Hz
Qms: 10.5
Qes: 0.65
Qts: 0.61
Vas: 15.4l / 0.54 cu.ft.
Le: 2.96 mH
Mms: 205.4 gr
Bl 17.0
Xmax: 32mm / 1.26″
Efficienty (SPL 1w/1m): 84dB
Power handling: 700w
Rec. amplifier power: 400-700w
Outer diameter: 257mm / 10.12″
Mounting cut out: 230mm / 9.06″
Mounting depht: 147mm / 5.79″
Recommended enclosures:
Bassreflex / vented: 33 liter netto / 1.16 cu.ft. net
Port: 1x10cm / 1x4″
Port lenght: 19cm / 7.48″
Frequency: 39Hz
Bandpass (4th order): 15 liter netto / 0.53 cu.ft. net sealed
25 liter netto / 0.88 cu.ft. net vented
Port: 1x10cm / 1x4″
Port lenght: 25cm / 9.84″
Tuning frequency: 55Hz
Bandwidith (-3dB): 35-88Hz.
Impedance: 2x2 Ohm
Re: 3.94 Ohm
Fs: 36.2 Hz
Qms: 10.5
Qes: 0.65
Qts: 0.61
Vas: 15.4l / 0.54 cu.ft.
Le: 2.96 mH
Mms: 205.4 gr
Bl 17.0
Xmax: 32mm / 1.26″
Efficienty (SPL 1w/1m): 84dB
Power handling: 700w
Rec. amplifier power: 400-700w
Outer diameter: 257mm / 10.12″
Mounting cut out: 230mm / 9.06″
Mounting depht: 147mm / 5.79″
Recommended enclosures:
Bassreflex / vented: 33 liter netto / 1.16 cu.ft. net
Port: 1x10cm / 1x4″
Port lenght: 19cm / 7.48″
Frequency: 39Hz
Bandpass (4th order): 15 liter netto / 0.53 cu.ft. net sealed
25 liter netto / 0.88 cu.ft. net vented
Port: 1x10cm / 1x4″
Port lenght: 25cm / 9.84″
Tuning frequency: 55Hz
Bandwidith (-3dB): 35-88Hz.
