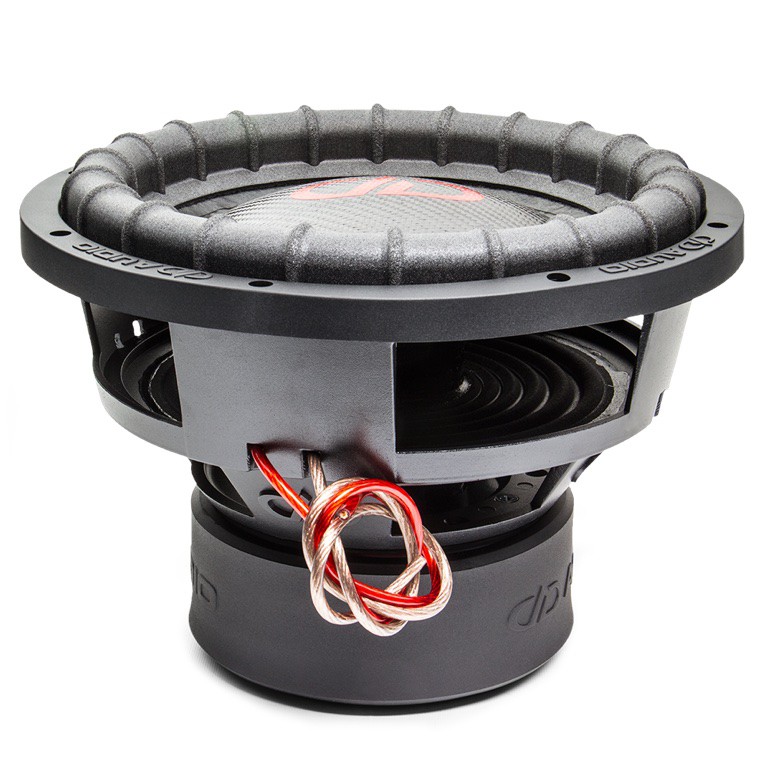

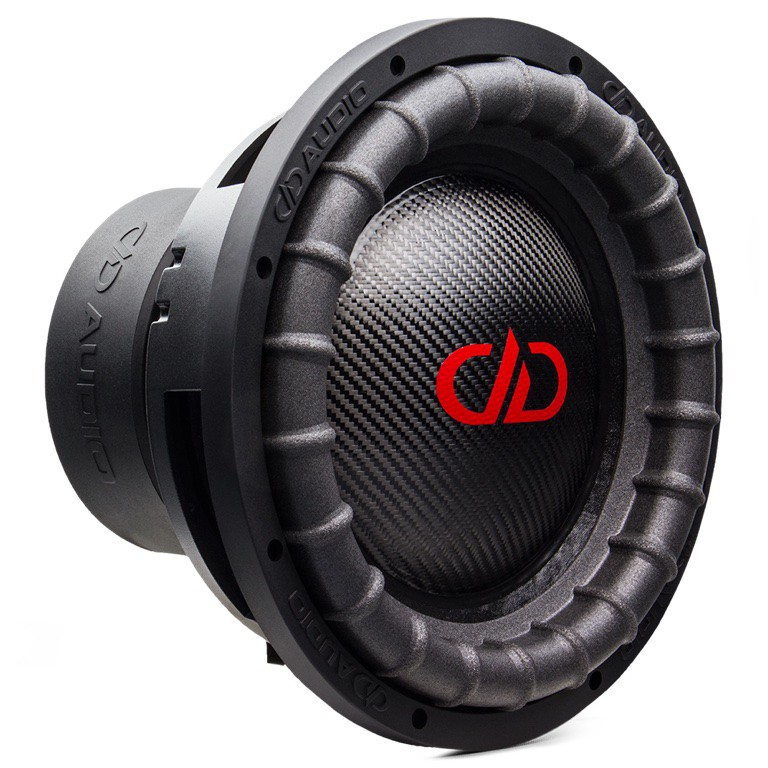

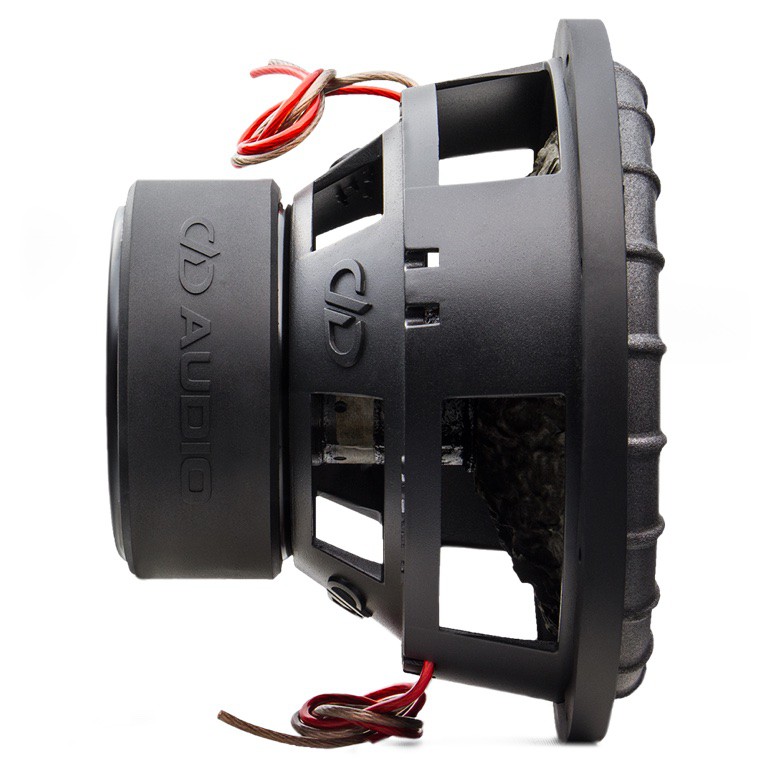

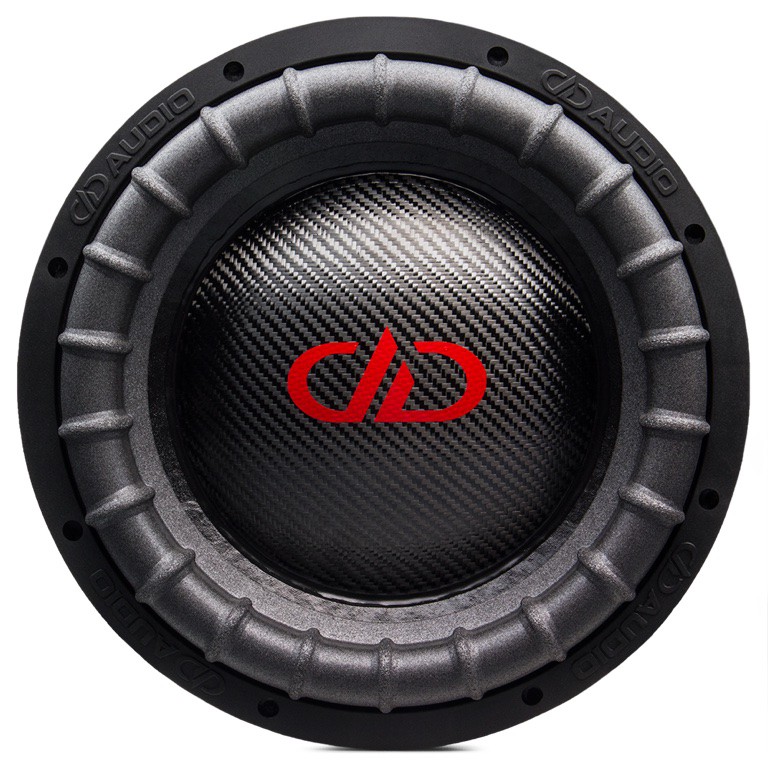

DD Audio 3010 D2 HiDef ESP 10″
DD3010-D2
10″
HiDef ESP Subwoofer
800W
2 x 2 Ohm
Read More
599,00 €
Description
Specifications
The 3000 Series subwoofers feature SFB cones, which have unprecedented rigidity and low moving mass, driven by a high precision 240 oz magnet motor, machined, to give you that particular DD sound in a closed case. The 3000 series includes the Evolution subwoofer package (ESP) sporting a deeper frame than standard sub and an exclusive design with surround and cone. ESP divers are built to maximize performance in the recommended size class.
MODEL 3010 (ESP)
Driver Size 10″
Watts RMS 400 - 800
Peak Power N/A
VCD 3
Impedance D2
Piston Dia - in 9 1/4
Fs - Hz 29.61
Qms 4.580
Qes 0.425
Qts 0.389
Vas - liters 27.665
Xmech - mm 60
Xmax - mm 17
Frame OD - in 11 7/16
Frame OD w/Gasket - in 11 9/16
Mounting Diameter - in 10 3/16
Mounting Depth - in 7 7/16
Motor Diameter - in 7 9/16
Motor Depth - in 3 1/4
Woofer Displacement - cu ft 0.15
Shipping Weight - lbs 36
Sealed Enclosure - cu ft 0.4 - 0.8
Ported Enclosure - cu ft 1.25 - 1.5
