GZ Entry SPL 4x6,5 inc
GZ Entry SPL 4x6,5 inc
2 x GZIC 165.2SPL
GZIA 2.240
Read More
set
399,00 €
Description
Specifications

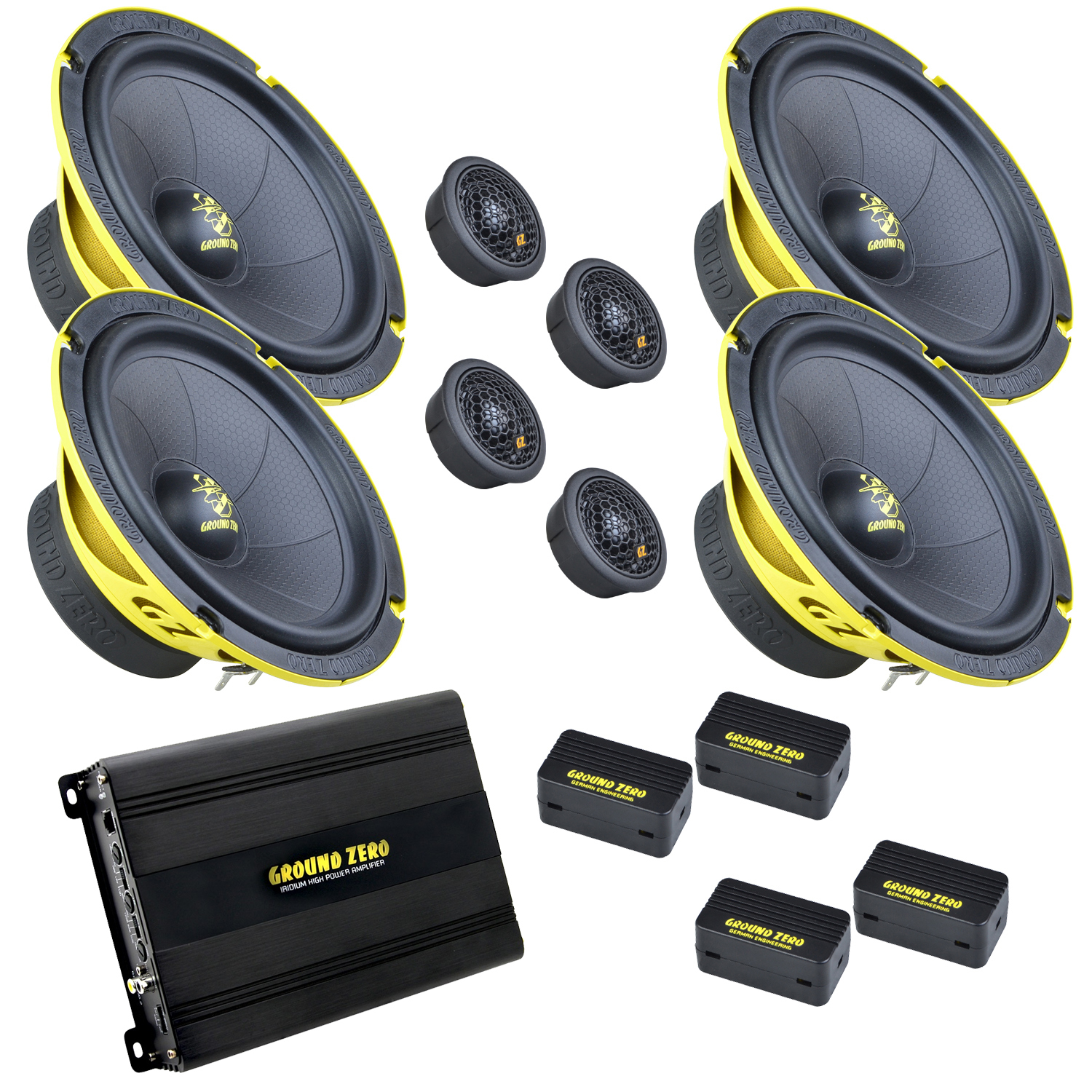

GZ Entry SPL 4x6,5 inc includes 2pcs of GZIC 165.2SPL speaker kits and GZIA 2.240 amplifier.

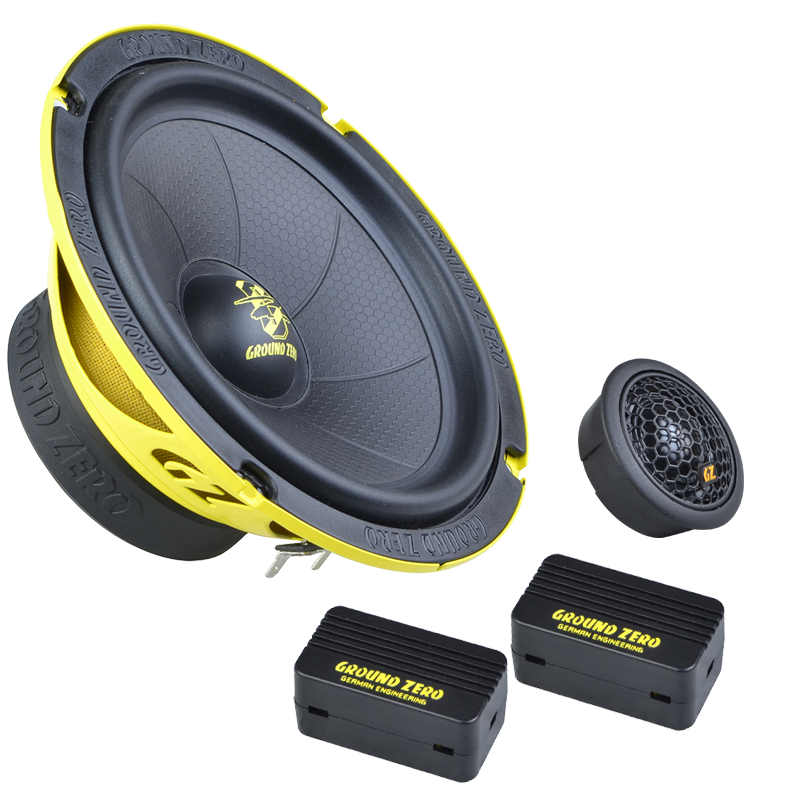

GZIC 165.2SPL:
GROUND ZERO introduced the new IRIDIUM series component loudspeakers with a particularly shaped HQPP cone with 3-D honeycomb structure. Expanding the line-up for the fans of SPL levels, the GZ engineers created a high-power capable component speaker system including the high-roll IRIDIUM GZIK 165SPL midwoofer (available separately, as well) and combined it with the GZCT 25M tweeter known from the COMPETITION line. Pointing out its main purpose, the components have been highlighted with yellow color accents, letting everyone know about the GZ SPL affiliation.

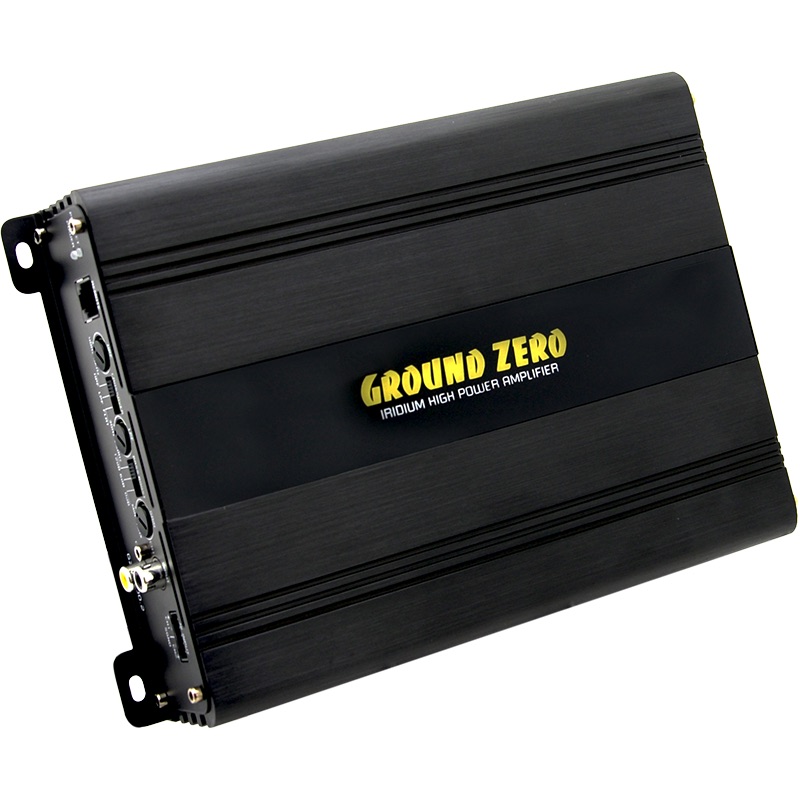

GZIA 2.240:
Iridium amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.
GZIC 165.2SPL:
GROUND ZERO introduced the new IRIDIUM series component loudspeakers with a particularly shaped HQPP cone with 3-D honeycomb structure. Expanding the line-up for the fans of SPL levels, the GZ engineers created a high-power capable component speaker system including the high-roll IRIDIUM GZIK 165SPL midwoofer (available separately, as well) and combined it with the GZCT 25M tweeter known from the COMPETITION line. Pointing out its main purpose, the components have been highlighted with yellow color accents, letting everyone know about the GZ SPL affiliation.
GZIA 2.240:
Iridium amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.
GZIC 165.2SPL:
Model
2-way SPL component speakers
Diameter
165 mm / 6.50″
Power Handling (RMS/max.)
120 / 200 Watts
Impedance
3 ohms
Efficiency
89 dB
Frequency Response
45 Hz – 20 kHz
Tweeter
25 mm /1 ″ mylar dome
Membran Layout
HQPP cone with 3D structure
Mounting Ø
142.5 mm / 5.61″
Mounting Depth
68 mm / 2.68″
Crossover
12 dB/oct – high pass filter
Crossover Frequency
5000 Hz.
GZIA 2.240:
- 2-channel high quality class A/B amplifier
- Channels: 2
- Output Power (@ 4Ω):2x 150 Watts RMS ( stereo mode )
- Output Power (@ 2Ω):2x 240 Watts RMS ( stereo mode )
- Output Power (@ 4Ω):1x 480 Watts RMS ( bridge mode )
- Frequency response: 10 Hz – 30 kHz (± 3 dB)
- Low pass filter: 30 Hz – 250 Hz (12 dB/oct)
- High pass filter: 40 Hz – 3000 Hz (12 dB/oct)
- Total harmonic distortion(THD+N): 0.02%
- Damping factor: 150
- Input sensitivity: 200 mV – 6 V
- Signal to noise ratio (SNR): 101 dB
Dimensions (W x L x H)
192 x 49 x 284/312 mm / 7.56 x 1.93 x 11.18/12.28 “
Model
2-way SPL component speakers
Diameter
165 mm / 6.50″
Power Handling (RMS/max.)
120 / 200 Watts
Impedance
3 ohms
Efficiency
89 dB
Frequency Response
45 Hz – 20 kHz
Tweeter
25 mm /1 ″ mylar dome
Membran Layout
HQPP cone with 3D structure
Mounting Ø
142.5 mm / 5.61″
Mounting Depth
68 mm / 2.68″
Crossover
12 dB/oct – high pass filter
Crossover Frequency
5000 Hz.
GZIA 2.240:
- 2-channel high quality class A/B amplifier
- Channels: 2
- Output Power (@ 4Ω):2x 150 Watts RMS ( stereo mode )
- Output Power (@ 2Ω):2x 240 Watts RMS ( stereo mode )
- Output Power (@ 4Ω):1x 480 Watts RMS ( bridge mode )
- Frequency response: 10 Hz – 30 kHz (± 3 dB)
- Low pass filter: 30 Hz – 250 Hz (12 dB/oct)
- High pass filter: 40 Hz – 3000 Hz (12 dB/oct)
- Total harmonic distortion(THD+N): 0.02%
- Damping factor: 150
- Input sensitivity: 200 mV – 6 V
- Signal to noise ratio (SNR): 101 dB
Dimensions (W x L x H)
192 x 49 x 284/312 mm / 7.56 x 1.93 x 11.18/12.28 “
