Helix S 62C.2
EAN: 4057204322120
S 62C.2
S-series separate system 6.5″
Read More
set
239,00 €
Description
Specifications
Manuals
Highest sound quality
With the S-series loudspeakers each ride becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, accurate mids and crystal-clear highs.
Classy design

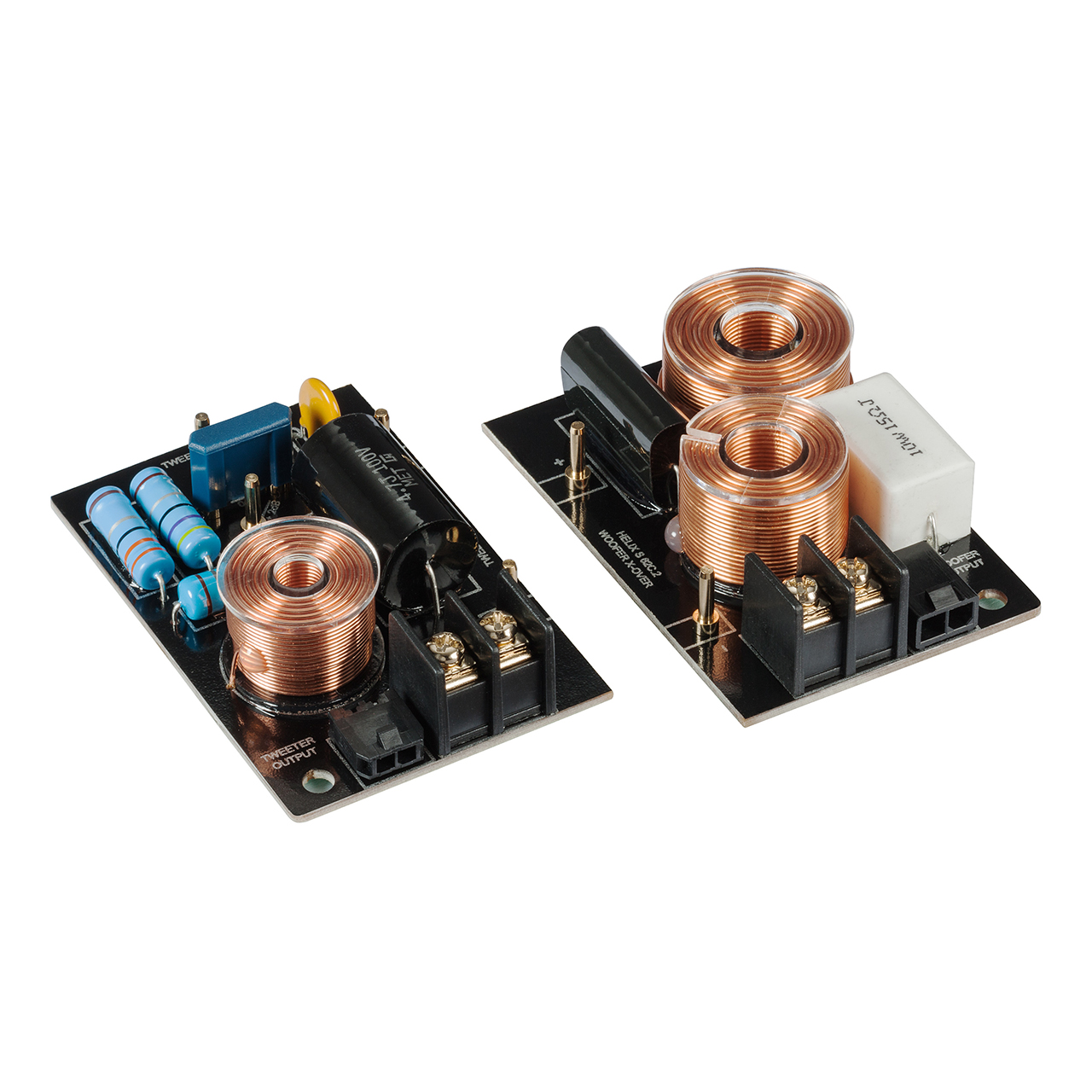

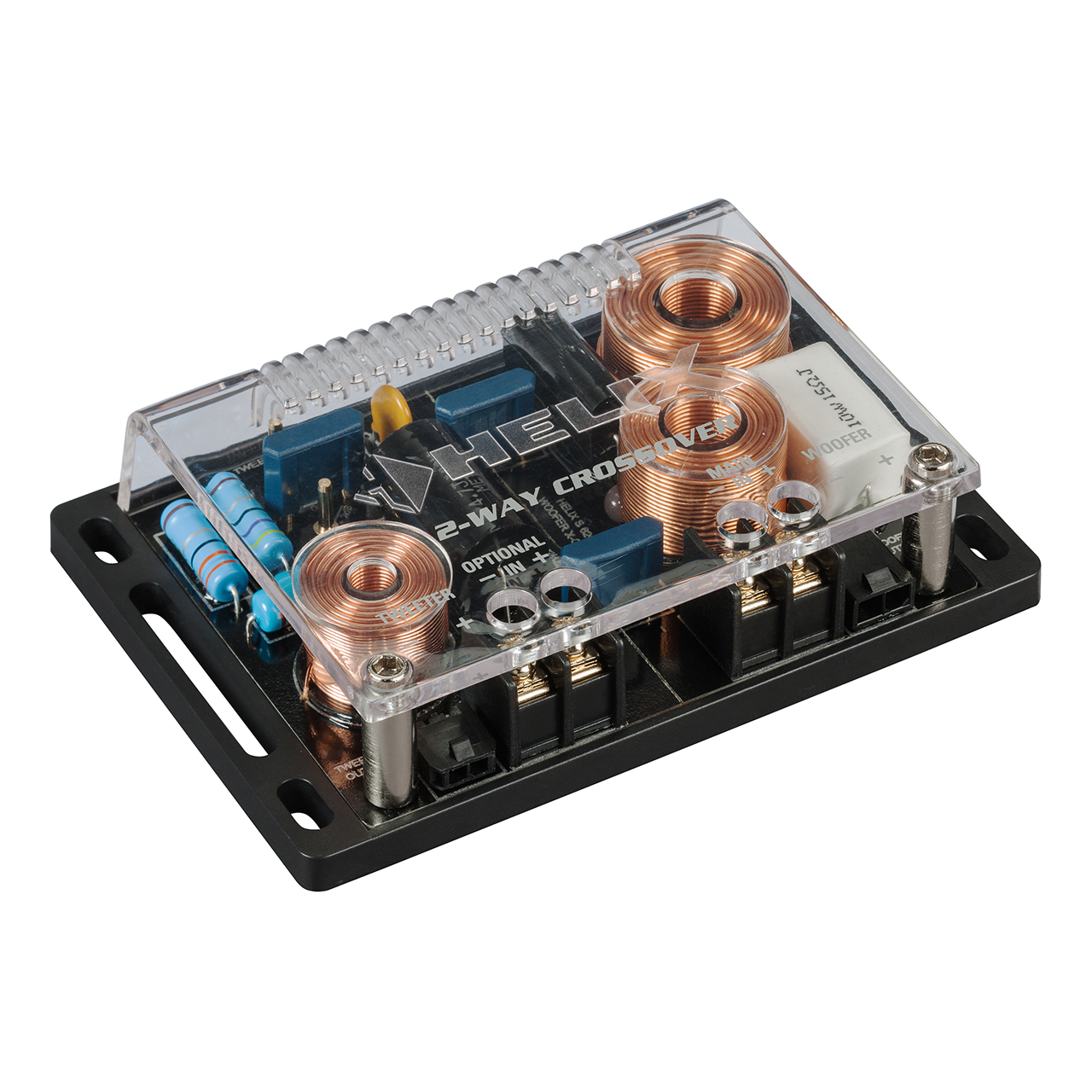

In addition to the excellent sound characteristics, the S 62C.2 also impresses with its timeless elegant design. Especially the transparent ″Flex-Crossover″ with its high-quality components and the noble aluminum housing of the tweeter make this system a real feast for the eyes.
Easy integration
The sophisticated design with low installation depths, a removable housing of the tweeter and the very compact and innovative ″Flex-Crossover″ offer much more freedom in terms of connectivity and installation – even in particularly limited space. Additionally, it provides an easy cabling, thanks to Plug & Play connections between the individual components.
With the S-series loudspeakers each ride becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, accurate mids and crystal-clear highs.
Classy design
In addition to the excellent sound characteristics, the S 62C.2 also impresses with its timeless elegant design. Especially the transparent ″Flex-Crossover″ with its high-quality components and the noble aluminum housing of the tweeter make this system a real feast for the eyes.
Easy integration
The sophisticated design with low installation depths, a removable housing of the tweeter and the very compact and innovative ″Flex-Crossover″ offer much more freedom in terms of connectivity and installation – even in particularly limited space. Additionally, it provides an easy cabling, thanks to Plug & Play connections between the individual components.
Power RMS / max.100 / 200 Watts
Frequency response45 Hz - 25,000 Hz
Impedance4 Ω
Efficiency 1 W / 1 m90 dB
Cone materialTW: Coated silk dome
M:
W: Basalt-fiber-paper compund

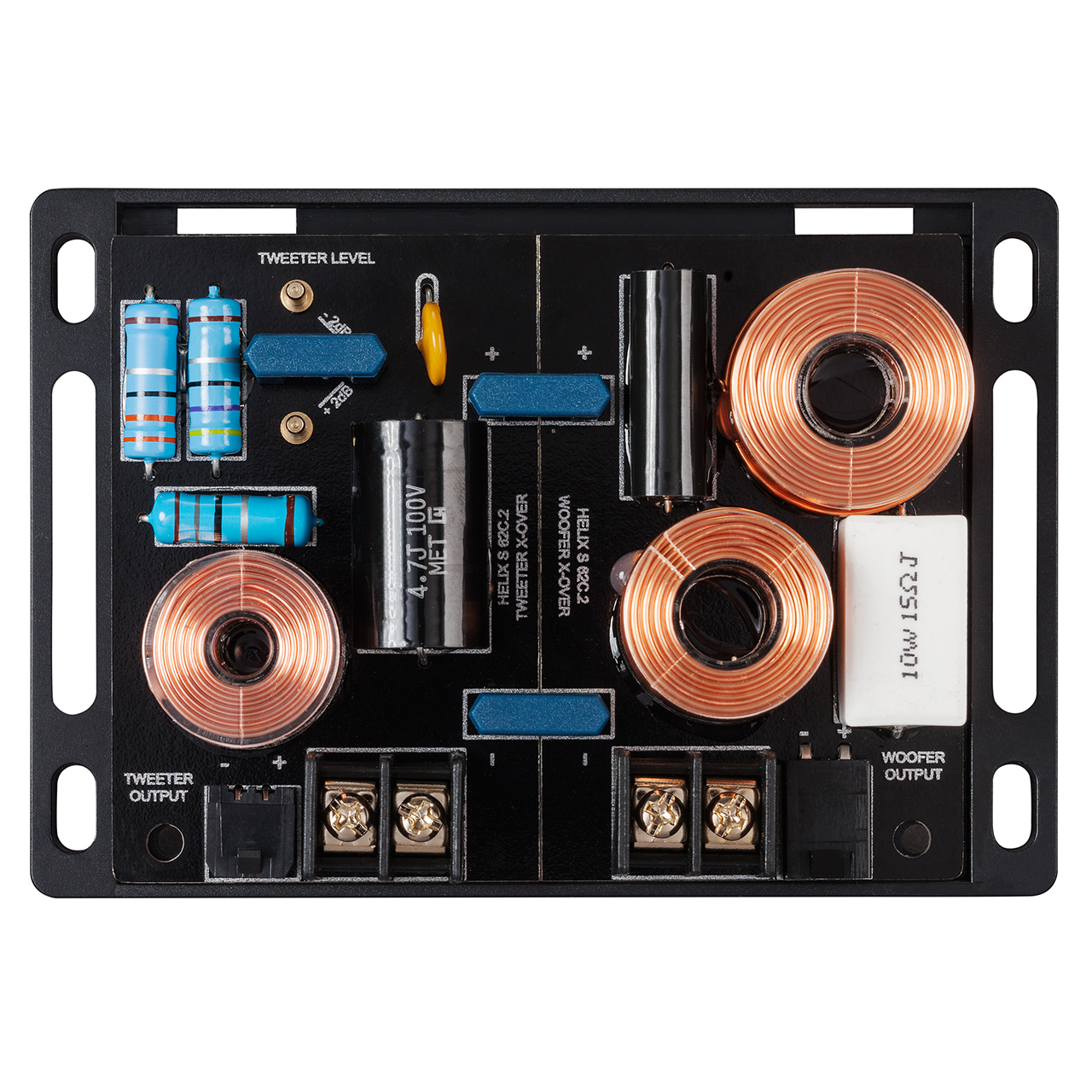

Crossover6/12 dB with bandstop filter, tweeter protection and tweeter level adjustment
Outer diameterTW: 51 mm / 2.0″
M: -
W: 165 mm / 6.50″
Installation diameterTW: 45 mm / 1.77″
M: -
W: 143 mm / 5.63″
Installation depthTW: 14 mm / 0.55″
M: -
W: 65 mm / 2.56″
Dimensions crossover112 x 77.5 x 27 mm / 4.41 x 3.05 x 1.06″

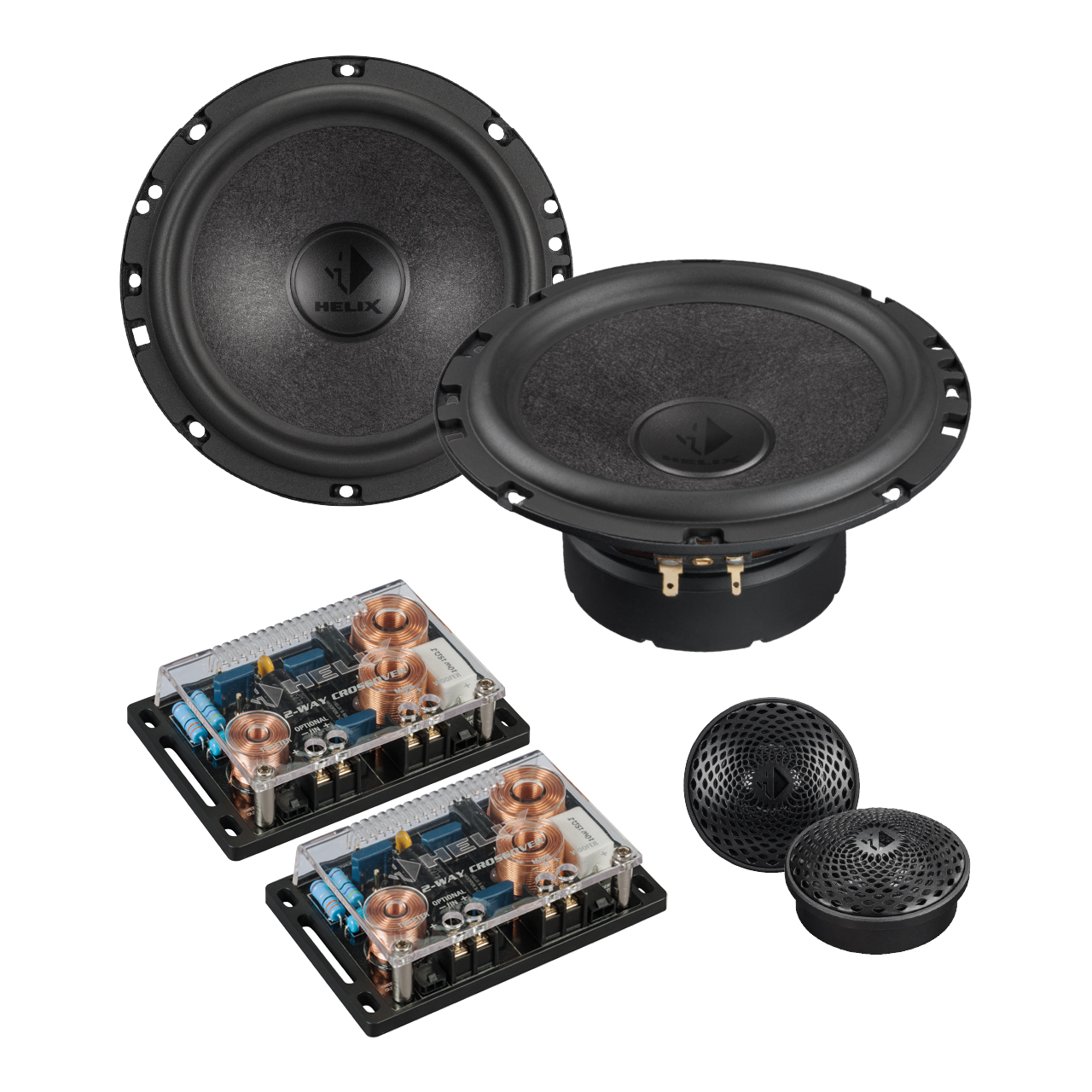

Scope of delivery:

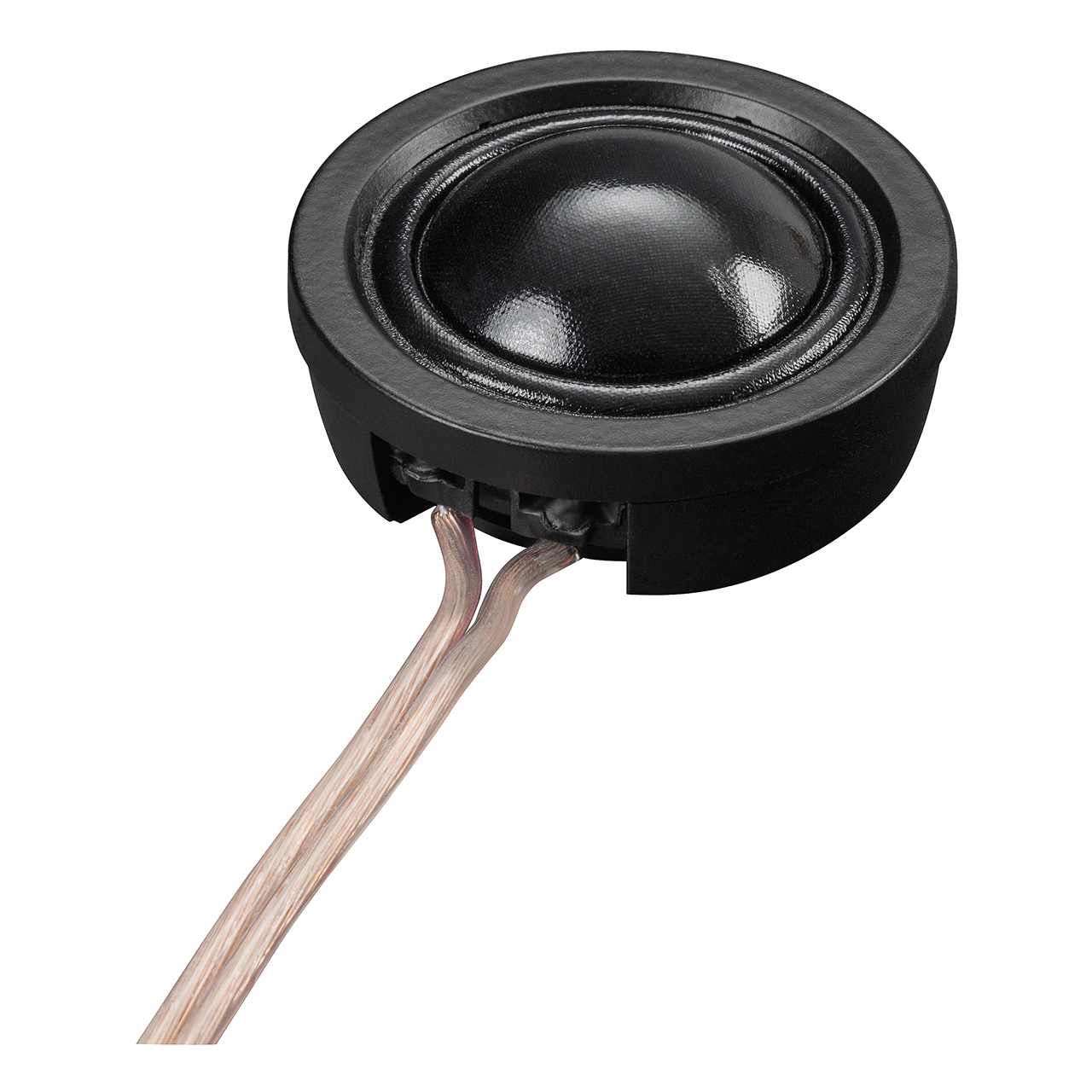

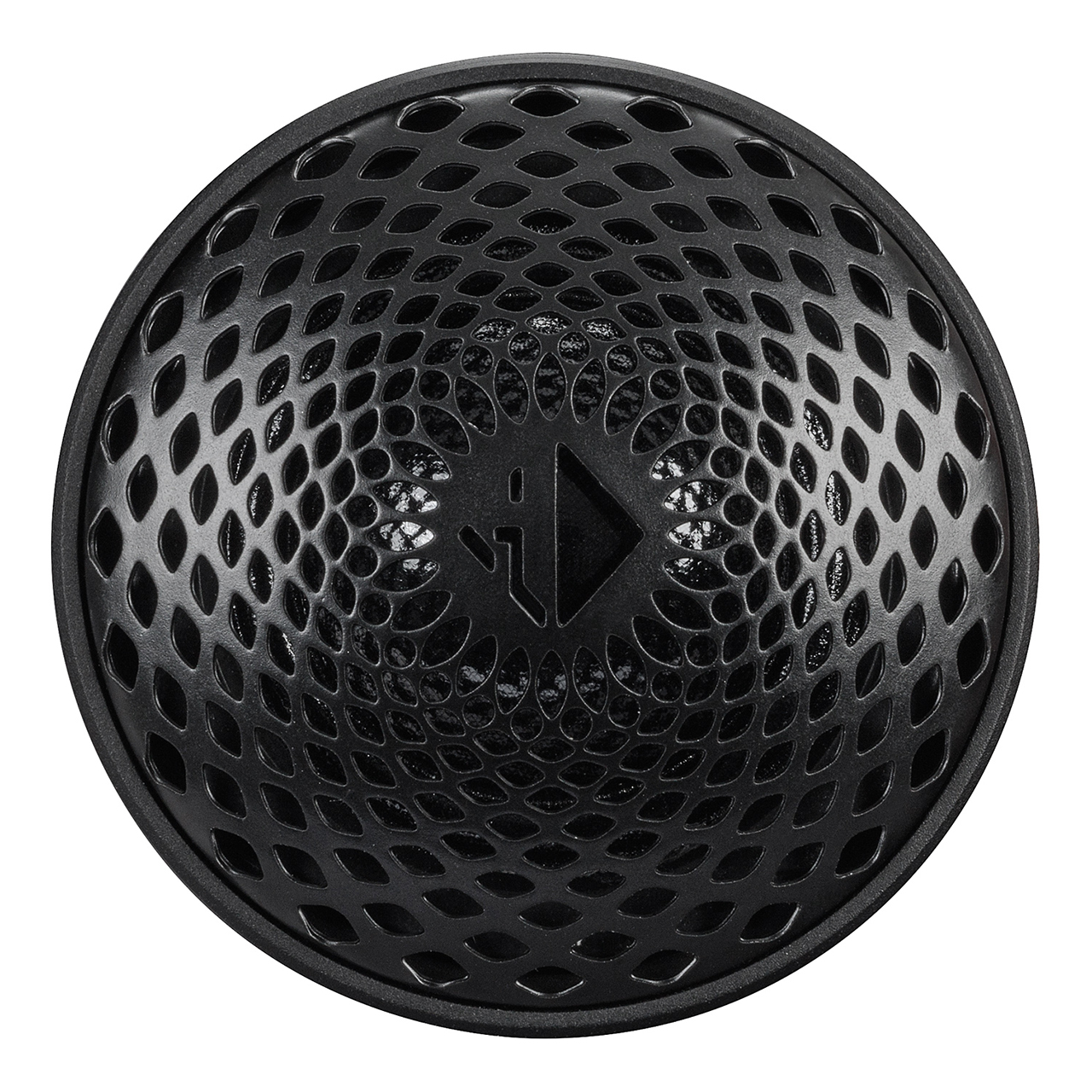

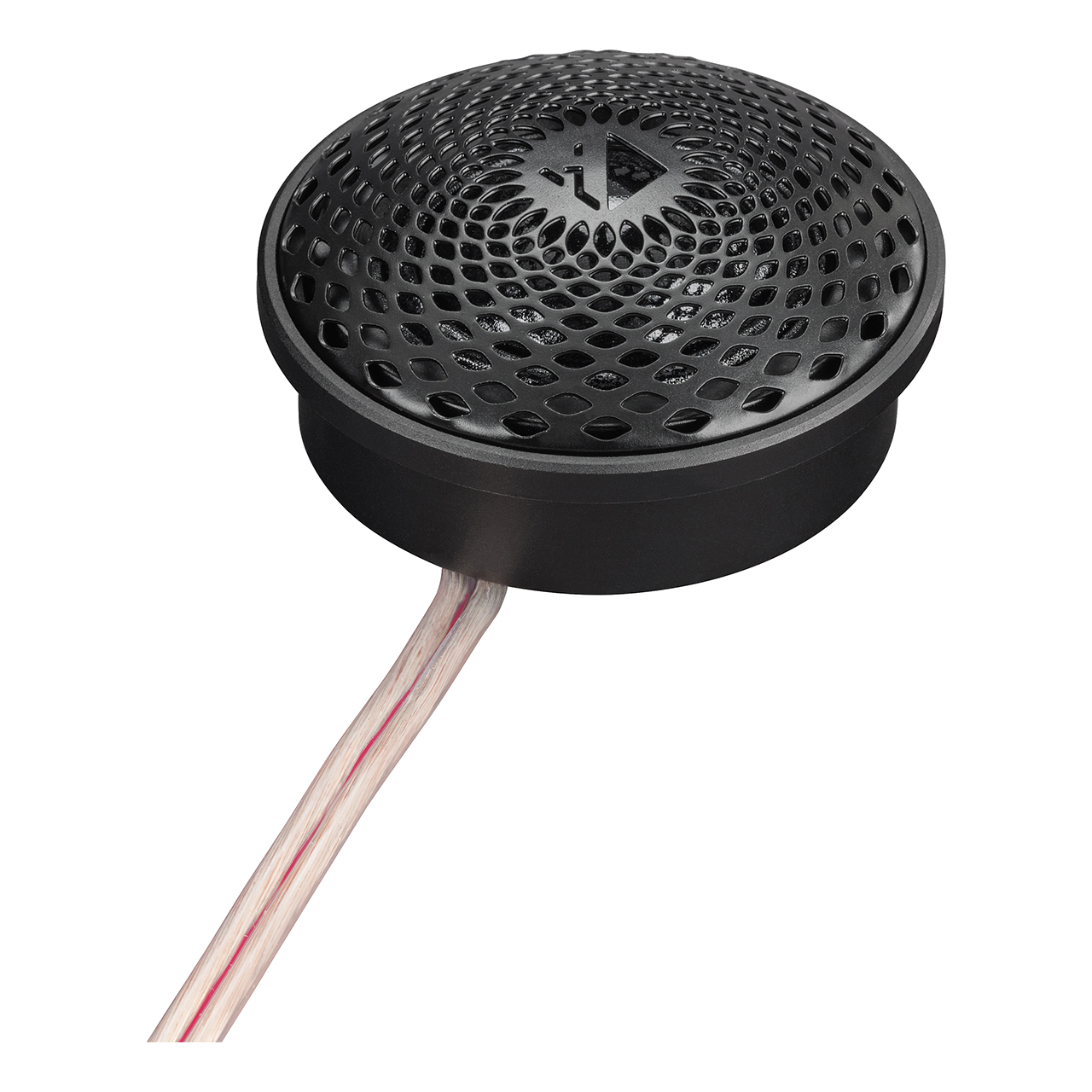

2 x Tweeter HELIX S 1T incl. mounting material

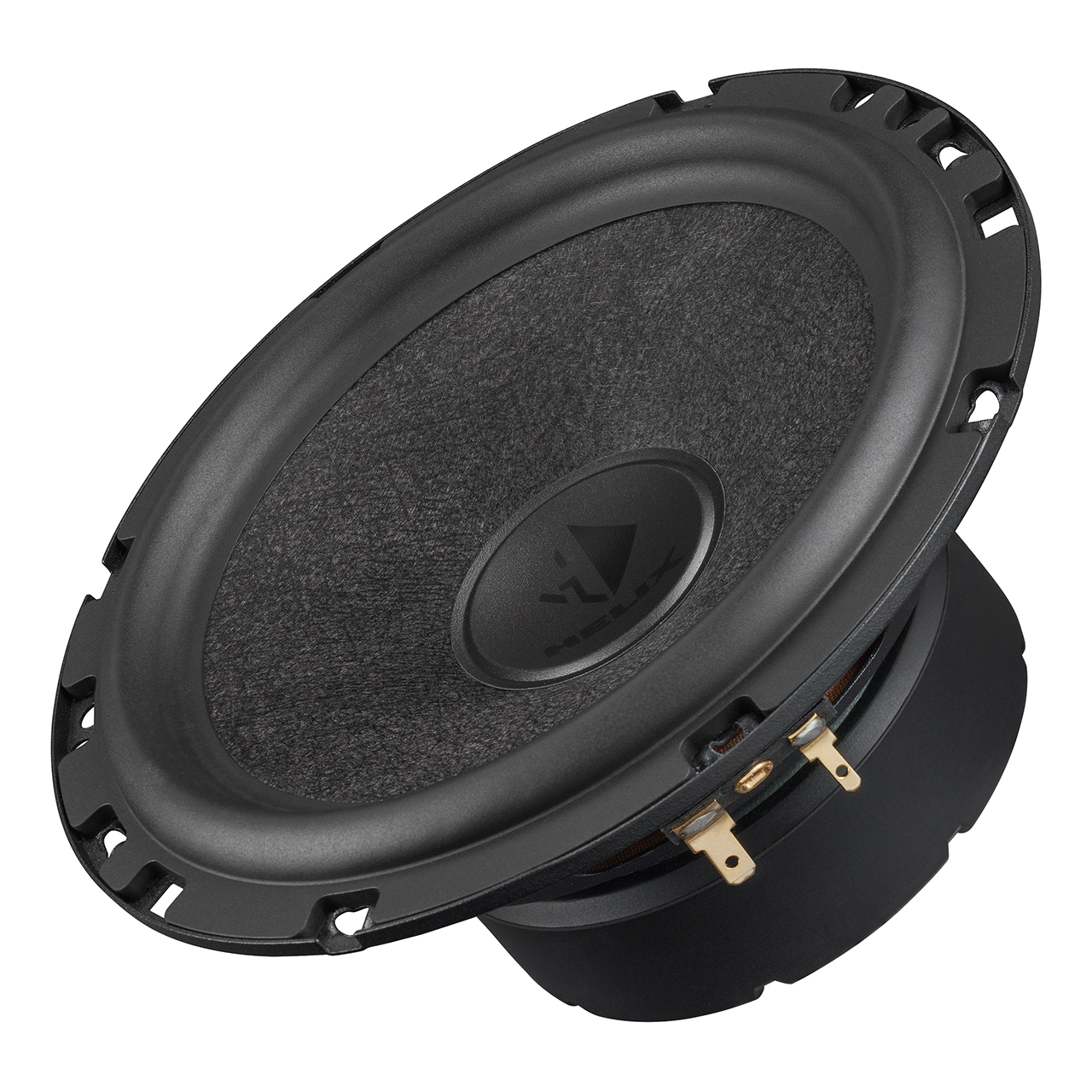

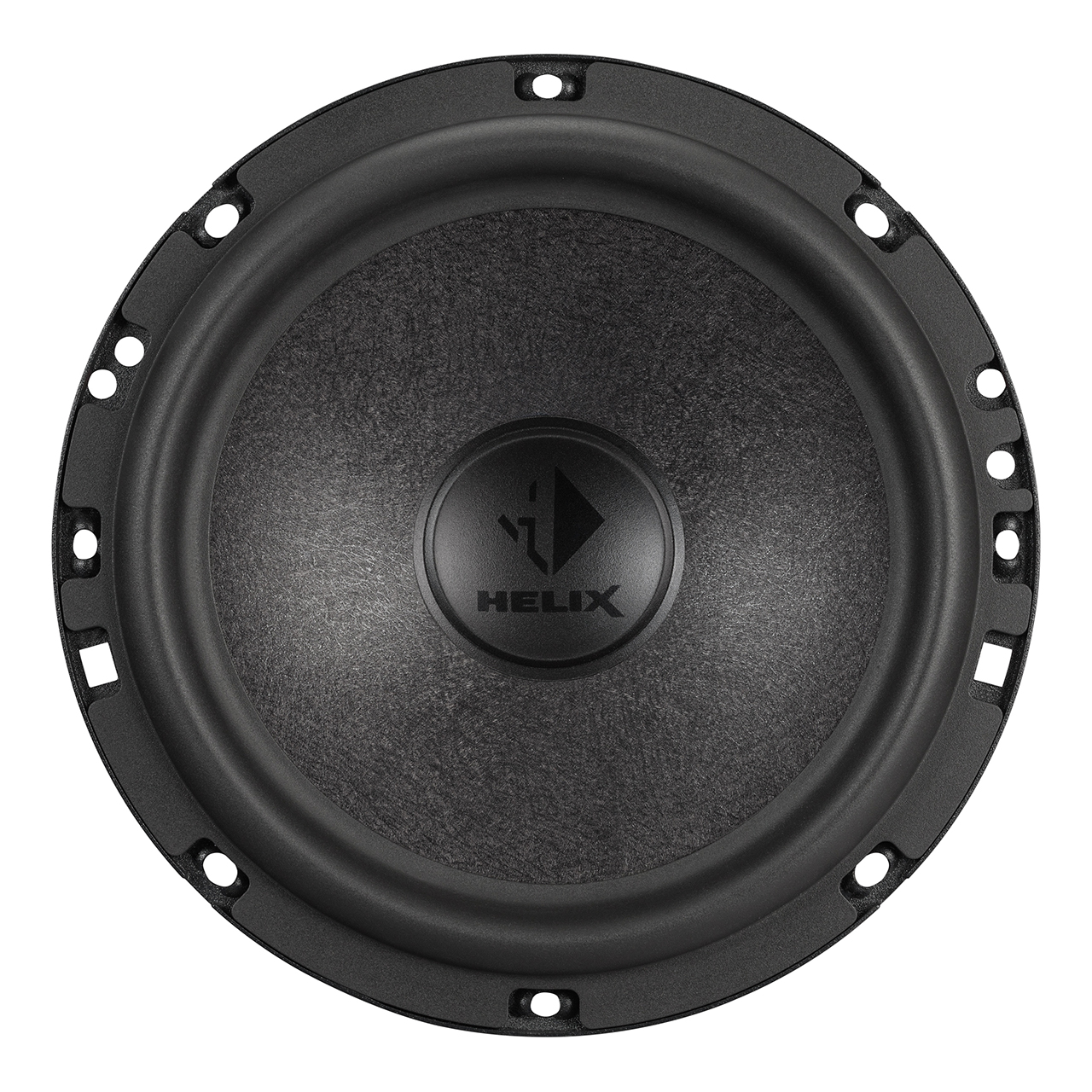

2 x Woofer HELIX S 6B
2 x Flex-Crossover
4 x Foam sheet
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern.
Frequency response45 Hz - 25,000 Hz
Impedance4 Ω
Efficiency 1 W / 1 m90 dB
Cone materialTW: Coated silk dome
M:
W: Basalt-fiber-paper compund
Crossover6/12 dB with bandstop filter, tweeter protection and tweeter level adjustment
Outer diameterTW: 51 mm / 2.0″
M: -
W: 165 mm / 6.50″
Installation diameterTW: 45 mm / 1.77″
M: -
W: 143 mm / 5.63″
Installation depthTW: 14 mm / 0.55″
M: -
W: 65 mm / 2.56″
Dimensions crossover112 x 77.5 x 27 mm / 4.41 x 3.05 x 1.06″
Scope of delivery:
2 x Tweeter HELIX S 1T incl. mounting material
2 x Woofer HELIX S 6B
2 x Flex-Crossover
4 x Foam sheet
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern.
