Helix CFMK100 BMW.1 ( BMW )
EAN: 4057204323585
CFMK100 BMW.1

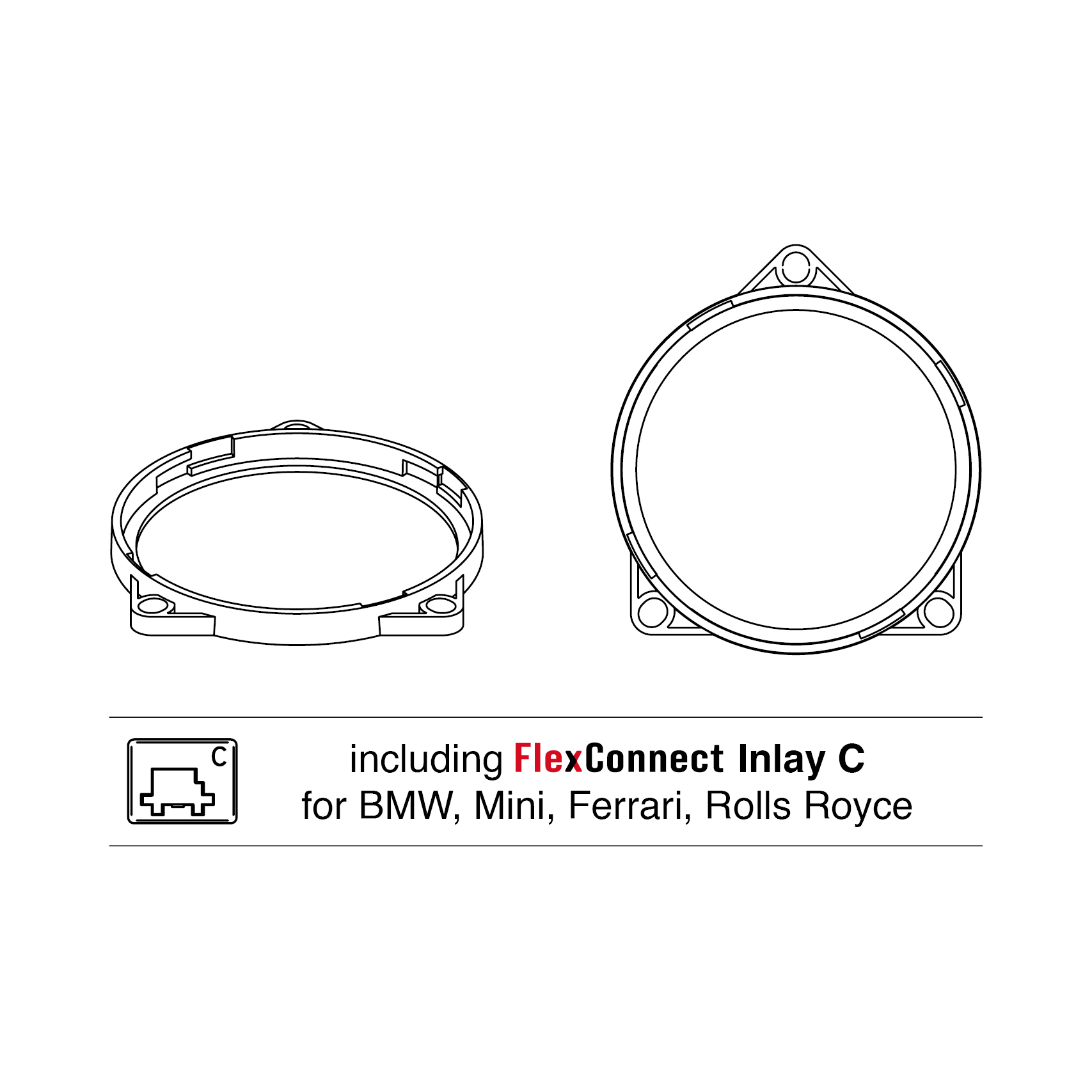

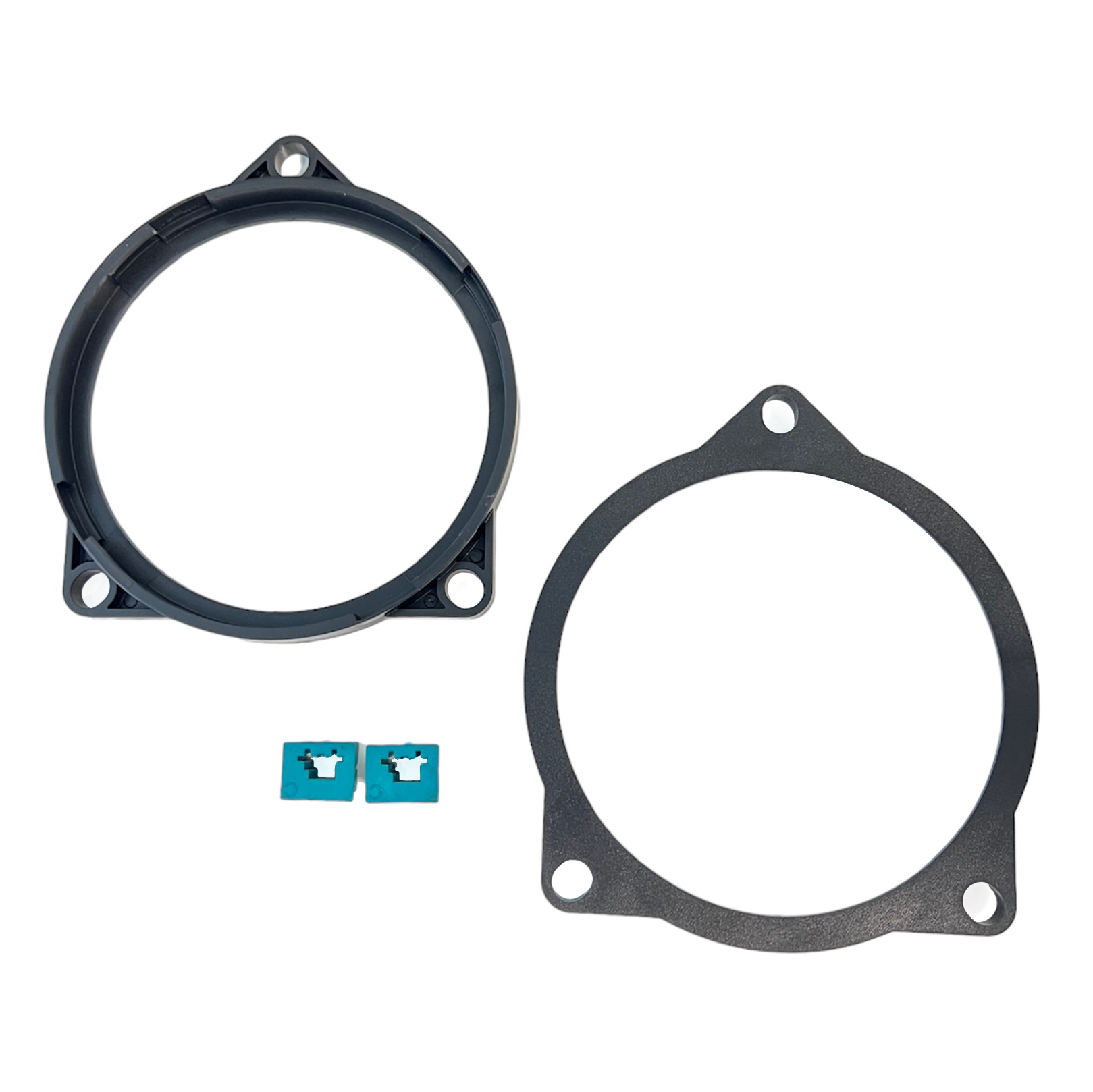

FlexMount100 adapters for COMPOSE series midrange.
Read More
pair
19,99 €
Description
Specifications
FlexMount is our patented mounting system, based on specially developed adaptor rings. With just one turn, your universal 4″ / 100 mm HELIX COMPOSE midrange speaker with FlexMount100 technology becomes car-specific, allowing an easy and acoustically optimized installation in the original mounting position of the vehicle. Features Vehicle-specific adapter ring for a professional and acoustically optimized integration of the 4” / 100 mm HELIX COMPOSE midrange with FlexMount100 Technology in the original mounting location of the vehicle Easy installation and secure fixation of the midrange in the adaptor ring thanks to patented bayonet lock Including gaskets to prevent acoustic short circuits
Compatibility
Speaker:
Ci7 M100FM-S3
Ci3 M100FM-S3
Ci3 K100.2FM-S3
Ci3 C100-2FM-S3
Car models:
BMW 1-series (E81) 05/2007 - 07/2012 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E81) 05/2007 - 07/2012 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E82) 10/2007 - 10/2013 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E82) 10/2007 - 10/2013 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E87) 03/2007 - 06/2011 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E87) 03/2007 - 06/2011 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E88) 04/2004 - 06/2011 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E88) 04/2004 - 06/2011 with HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F20) 06/2011 - 08/2019 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F20) 06/2011 - 08/2019 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F21) 07/2012 - 08/2019 with standard sound system
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F21) 07/2012 - 08/2019 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F40) 08/2019 -- with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-serie (F52) 08/2019 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F22/F23) 03/2015 - 07/2021 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F22/F23) 03/2015 - 07/2021 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F44) 01/2020 -- with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie E90 01/2005 - 08/2011 m/Standard Sound System
Front/Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E90 01/2005 - 08/2011 with HIFI Sound System (676) or Harman/Kardon Surround System
Front: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E91 01/2005 - 08/2011 with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E93 01/2005 - 08/2011 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F30 10/2011 - 03/2019 with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie F31 05/2012 - 03/2019 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F31 05/2012 - 03/2019 with HIFI Sound System (676) or Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F34 03/2013 - 03/2019 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie F34 03/2013 - 03/2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F35 07/2012 - 03/2019 with HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F35 07/2012 - 03/2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie G20 03/2019 --, m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series G20 03/2019 --, w/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie G20 03/2019 --, m/Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series G21 03/2019 --, m/HIFI Sound System (676) or Harman/Kardon Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/Harman/Kardon Surround System
Bak: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Senter: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 with Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 w/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 m/Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series F10/F11/F18 01/2010 - 01/2017 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-serie F10/F11/F18 01/2010 - 01/2017 m/Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series G30/G31/G38 02/2017 -- m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series G30/G31/G38 02/2017 -- m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series E63 09/2003 - 08/2010 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series E64 02/2004 - 06/2010 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series F12/F13 03/2011 - 01/2018 m/HIFI Sound System (676), HIFI Professional, Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series Gran Turismo G32 06/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series E65/E66/E67/E68 08/2001 - 08/2008 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series F01/F02/F03/F04 11/2008 - 09/2015 m/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series F01/F02/F03/F04 11/2008 - 09/2015 with HIFI Professional or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series G11/G12 10/2015 - 06/2019 with HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-serie G11/G12 10/2015 -- m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 8-series G14/G15/G16 01/2019 -- with HIFI Sound System (676), or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW i8 I12 01/2013 - 2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 E84 10/2009 - 05/2015 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 E84 10/2009 - 05/2015 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 F48/F49 06/2015 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X2 F39 03/2018 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 E83 01/2004 - 08/2010 m/Standard Sound System, HIFI Sound System (676) or HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 F25 01/2010 - 08/2017 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 F25 01/2010 - 08/2017 m/HIFI Professional
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 G01 08/2017 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X4 01/2014 - 03/2018 m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X4 G02 (F98) 03/2018 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 E70 08/2006 - 08/2013 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 E70 08/2006 - 08/2013 m/HIFI Sound System (676), or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 F15 08/2013 - 07/2018 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 F15 08/2013 - 07/2018 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 G05 11/2018 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 F16 01/2014 - 10/2019 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 F16 01/2014 - 10/2019 m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 G06 11/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X7 G07 03/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW Z4 E89 01/2009 - 2016 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW Z4 E89 01/2009 - 2016 with HIFI Sound System (676) or HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Ferrari 812 (F152M) 03/2017 --m/Standard Soundsystem or JBL Sound System
Dashbord: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Ferrari 812 (F152M) 03/2017 --m/Harman Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Mini Countryman R60 09/2010 - 09/2016 m/Standard Soundsystem or Harman/Kardon
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Mini Countryman F60 09/2016 -- m/Standard Soundsystem or Harman/Kardon
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Porsche 911 (991) 09/2011 - 12/2015 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 911 (991 mk2) 12/2015 - 12/2019 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 911 (992) 01/2020 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 718 Boxster (982) 01/2016 -- m/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 92A/958 05/2010 - 06/2014 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 92A/958 FL 06/2014 - 08/2017 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 9YA/536 08/2017 -- with standard sound system, BOSE sound system, Burmester sound system or MIB3
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayman 981C 01/2013 - 04/2016 m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 718 Cayman (982) 04/2016 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Macan 95B 01/2014 - 05/2017 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Macan 95B FL 05/2017 -- m/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (970) 09/2009 - 06/2013 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (970 FL) 06/2013 - 06/2016 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971) 06/2016 - 08/2020 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971 FL) 08/2020 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971 FL) 08/2020 -- m/MIB3
Front: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/Standard Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/BOSE Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Surround: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/MIB3
Rear: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Scope of delivery
2 x FlexMount100 adaptor ring
2 x Gasket
2 x FlexConnect inlay C
Speaker:
Ci7 M100FM-S3
Ci3 M100FM-S3
Ci3 K100.2FM-S3
Ci3 C100-2FM-S3
Car models:
BMW 1-series (E81) 05/2007 - 07/2012 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E81) 05/2007 - 07/2012 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E82) 10/2007 - 10/2013 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E82) 10/2007 - 10/2013 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E87) 03/2007 - 06/2011 with Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E87) 03/2007 - 06/2011 with HIFI Sound System (676) or HIFI Professional
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E88) 04/2004 - 06/2011 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (E88) 04/2004 - 06/2011 with HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F20) 06/2011 - 08/2019 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F20) 06/2011 - 08/2019 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F21) 07/2012 - 08/2019 with standard sound system
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F21) 07/2012 - 08/2019 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-series (F40) 08/2019 -- with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 1-serie (F52) 08/2019 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F22/F23) 03/2015 - 07/2021 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F22/F23) 03/2015 - 07/2021 m/Harman Kardon
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 2-series (F44) 01/2020 -- with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie E90 01/2005 - 08/2011 m/Standard Sound System
Front/Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E90 01/2005 - 08/2011 with HIFI Sound System (676) or Harman/Kardon Surround System
Front: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E91 01/2005 - 08/2011 with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series E93 01/2005 - 08/2011 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F30 10/2011 - 03/2019 with HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie F31 05/2012 - 03/2019 m/Standard Sound System
Rear: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F31 05/2012 - 03/2019 with HIFI Sound System (676) or Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F34 03/2013 - 03/2019 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie F34 03/2013 - 03/2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F35 07/2012 - 03/2019 with HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series F35 07/2012 - 03/2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie G20 03/2019 --, m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series G20 03/2019 --, w/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-serie G20 03/2019 --, m/Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 3-series G21 03/2019 --, m/HIFI Sound System (676) or Harman/Kardon Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series F32/F33 06/2014 - 08/2020 m/Harman/Kardon Surround System
Bak: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Senter: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/Standard Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/HIFI Sound System (676)
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 4-series G22 08/2020 -- m/Harman/Kardon Surround System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 with Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 w/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series E60/E61 07/2003 - 05/2010 m/Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series F10/F11/F18 01/2010 - 01/2017 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-serie F10/F11/F18 01/2010 - 01/2017 m/Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series G30/G31/G38 02/2017 -- m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 5-series G30/G31/G38 02/2017 -- m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series E63 09/2003 - 08/2010 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series E64 02/2004 - 06/2010 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series F12/F13 03/2011 - 01/2018 m/HIFI Sound System (676), HIFI Professional, Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 6-series Gran Turismo G32 06/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series E65/E66/E67/E68 08/2001 - 08/2008 with HIFI Sound System (676) or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series F01/F02/F03/F04 11/2008 - 09/2015 m/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series F01/F02/F03/F04 11/2008 - 09/2015 with HIFI Professional or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-series G11/G12 10/2015 - 06/2019 with HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 7-serie G11/G12 10/2015 -- m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW 8-series G14/G15/G16 01/2019 -- with HIFI Sound System (676), or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW i8 I12 01/2013 - 2019 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 E84 10/2009 - 05/2015 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 E84 10/2009 - 05/2015 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X1 F48/F49 06/2015 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X2 F39 03/2018 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 E83 01/2004 - 08/2010 m/Standard Sound System, HIFI Sound System (676) or HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 F25 01/2010 - 08/2017 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 F25 01/2010 - 08/2017 m/HIFI Professional
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X3 G01 08/2017 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X4 01/2014 - 03/2018 m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X4 G02 (F98) 03/2018 -- m/HIFI Sound System (676) or Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 E70 08/2006 - 08/2013 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 E70 08/2006 - 08/2013 m/HIFI Sound System (676), or Logic7/Performance/Premium Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 F15 08/2013 - 07/2018 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 F15 08/2013 - 07/2018 m/Harman/Kardon Surround System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X5 G05 11/2018 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/HIFI Sound System (676)
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 E71/E72 01/2008 - 01/2014 m/HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 F16 01/2014 - 10/2019 m/HIFI Sound System (676)
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 F16 01/2014 - 10/2019 m/Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X6 G06 11/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW X7 G07 03/2019 -- m/HIFI Sound System (676), Harman/Kardon Surround System or B&W Diamond Surround Sound System
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW Z4 E89 01/2009 - 2016 m/Standard Sound System
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
BMW Z4 E89 01/2009 - 2016 with HIFI Sound System (676) or HIFI Professional
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Ferrari 812 (F152M) 03/2017 --m/Standard Soundsystem or JBL Sound System
Dashbord: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Ferrari 812 (F152M) 03/2017 --m/Harman Sound System
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Mini Countryman R60 09/2010 - 09/2016 m/Standard Soundsystem or Harman/Kardon
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Mini Countryman F60 09/2016 -- m/Standard Soundsystem or Harman/Kardon
Front: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Rear: Ci3 K100.2FM-S3, Ci3 M100FM-S3 , Ci3 C100.2FM-S3 , Ci7 M100FM-S3
Porsche 911 (991) 09/2011 - 12/2015 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 911 (991 mk2) 12/2015 - 12/2019 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 911 (992) 01/2020 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 718 Boxster (982) 01/2016 -- m/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 92A/958 05/2010 - 06/2014 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 92A/958 FL 06/2014 - 08/2017 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayenne 9YA/536 08/2017 -- with standard sound system, BOSE sound system, Burmester sound system or MIB3
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Cayman 981C 01/2013 - 04/2016 m/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche 718 Cayman (982) 04/2016 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Macan 95B 01/2014 - 05/2017 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Macan 95B FL 05/2017 -- m/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (970) 09/2009 - 06/2013 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (970 FL) 06/2013 - 06/2016 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971) 06/2016 - 08/2020 with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971 FL) 08/2020 -- with standard sound system, BOSE sound system or Burmester sound system
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Panamera (971 FL) 08/2020 -- m/MIB3
Front: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/Standard Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/BOSE Soundsystem
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Surround: Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/Burmester Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Rear: Ci3 K100.2FM-S3 , Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Surround: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Porsche Taycan 12/2019 -- m/MIB3
Rear: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Scope of delivery
2 x FlexMount100 adaptor ring
2 x Gasket
2 x FlexConnect inlay C
