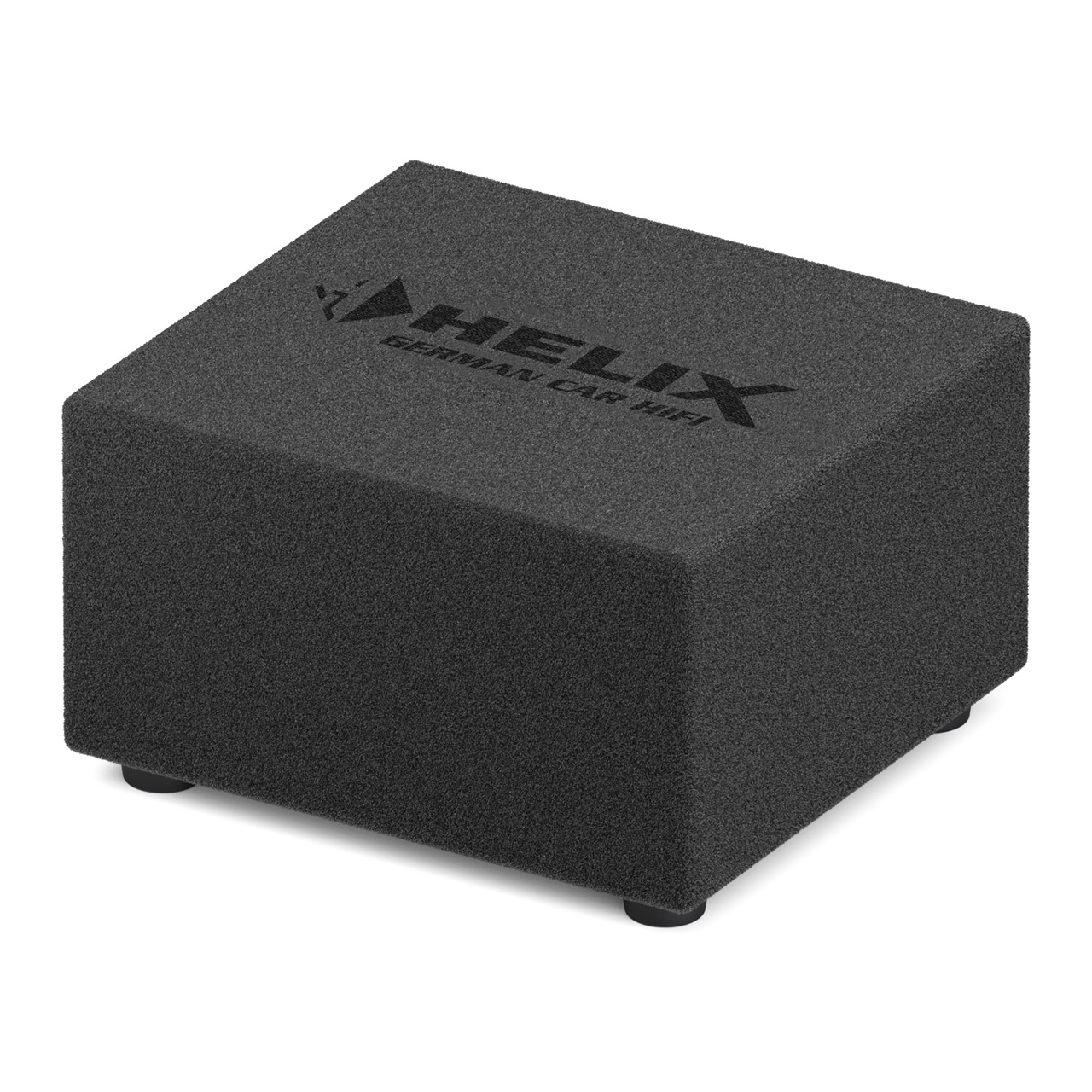

HELIX IK E8.1-SVC2
EAN: 4057204335823
IK E8.1-SVC2
8″ valmiskoteloitu subwoofer

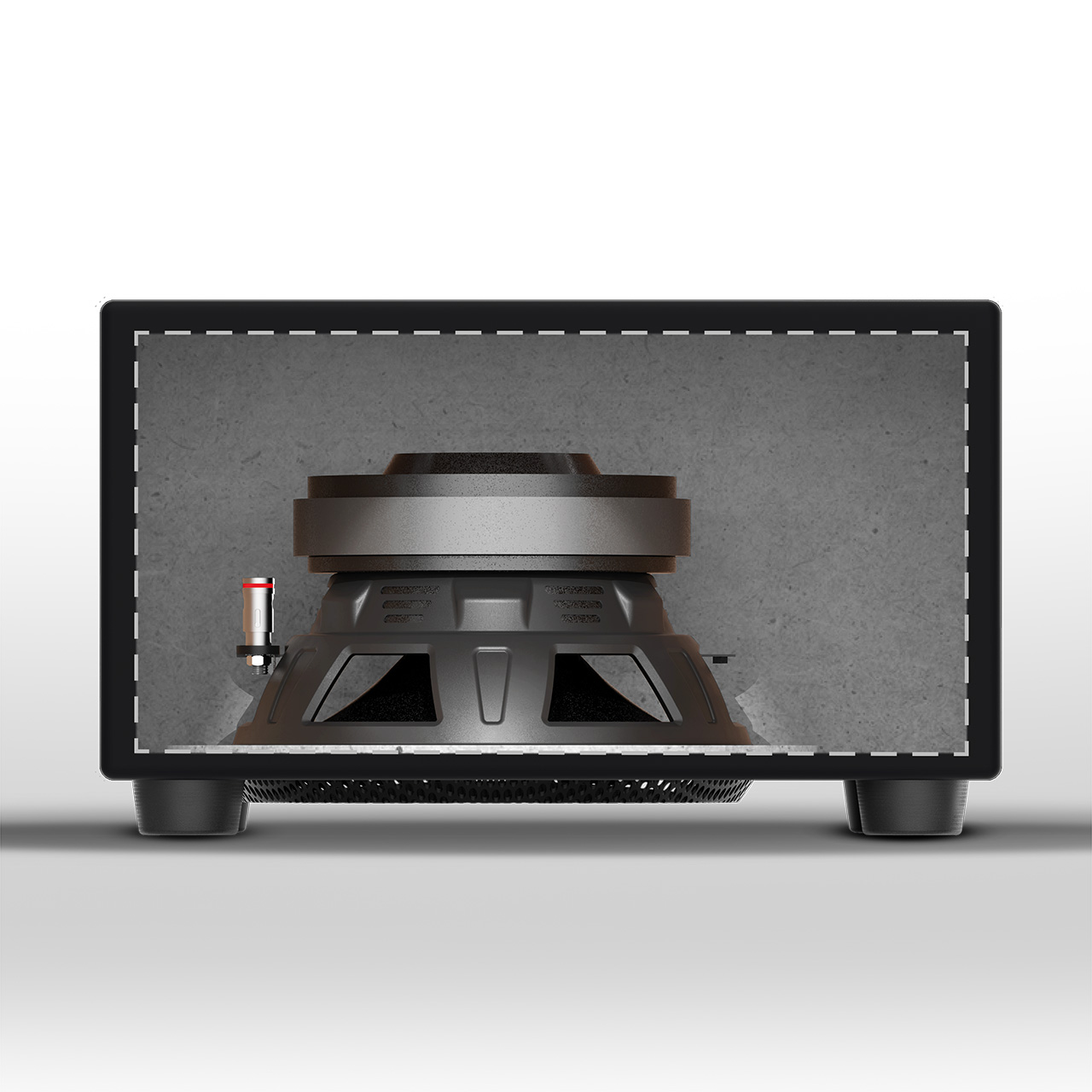

Refleksikotelo
1 x 2 Ohm
300W
Lue lisää
219,00 €
Tuotekuvaus
Tekniset tiedot
Ohjekirjat
Matchin IK -sarjan 8″ subwoofer refleksi -kotelossa on pienikokoinen ratkaisu bassontarpeeseen.
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle.
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle.
Technical data:
Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 1 x 2 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity
SPL
91 dB @ 2.83V / 1m
85 dB @ 1W / 1m
Dimensions (H x W x D)
184 x 310 x 285 mm
7.2 x 12.2 x 11.2″
Recommended DSP settings:
″Self-define″ highpass 44 Hz / Q = 1.6
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB
Scope of delivery

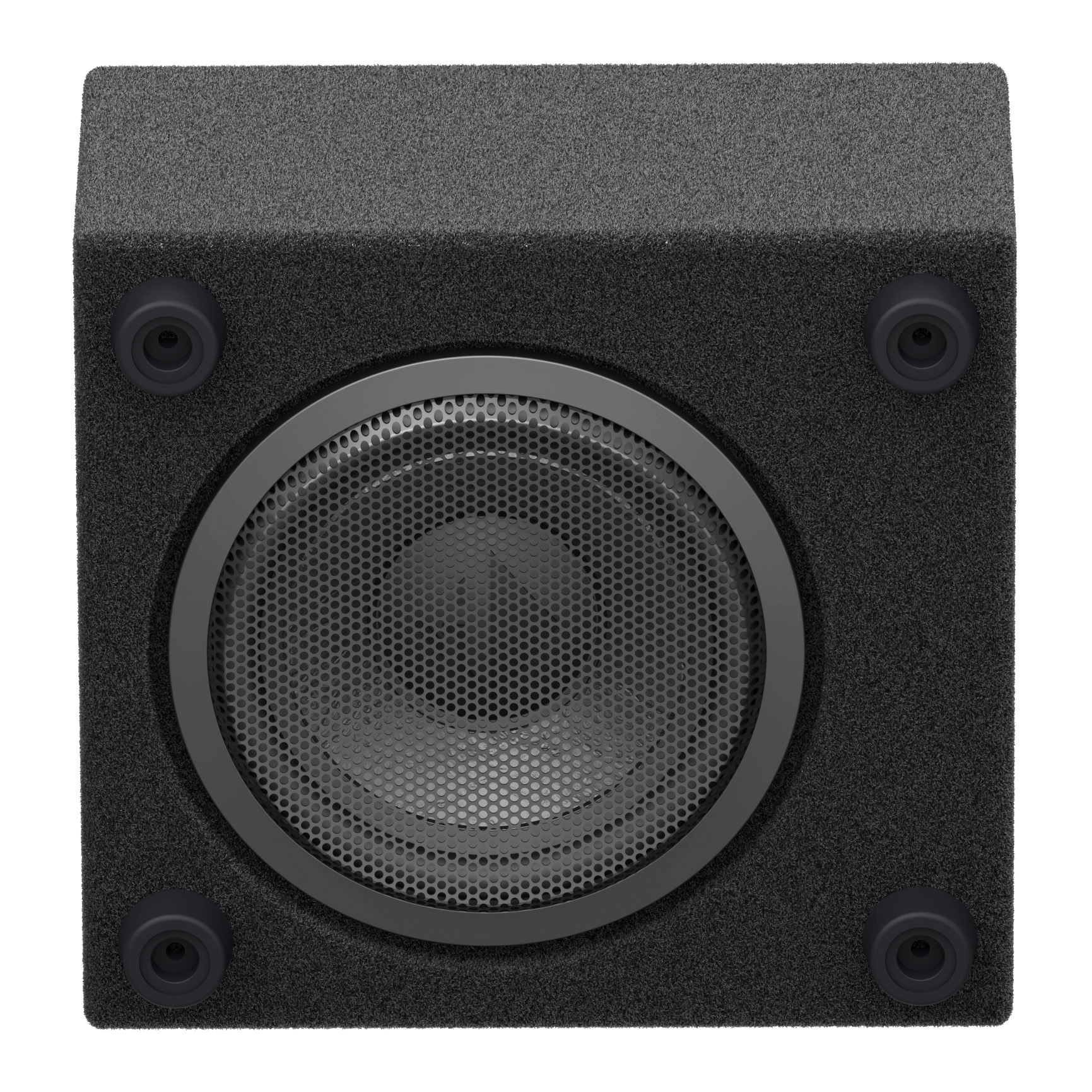

1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 1 x 2 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity
SPL
91 dB @ 2.83V / 1m
85 dB @ 1W / 1m
Dimensions (H x W x D)
184 x 310 x 285 mm
7.2 x 12.2 x 11.2″
Recommended DSP settings:
″Self-define″ highpass 44 Hz / Q = 1.6
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB
Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
