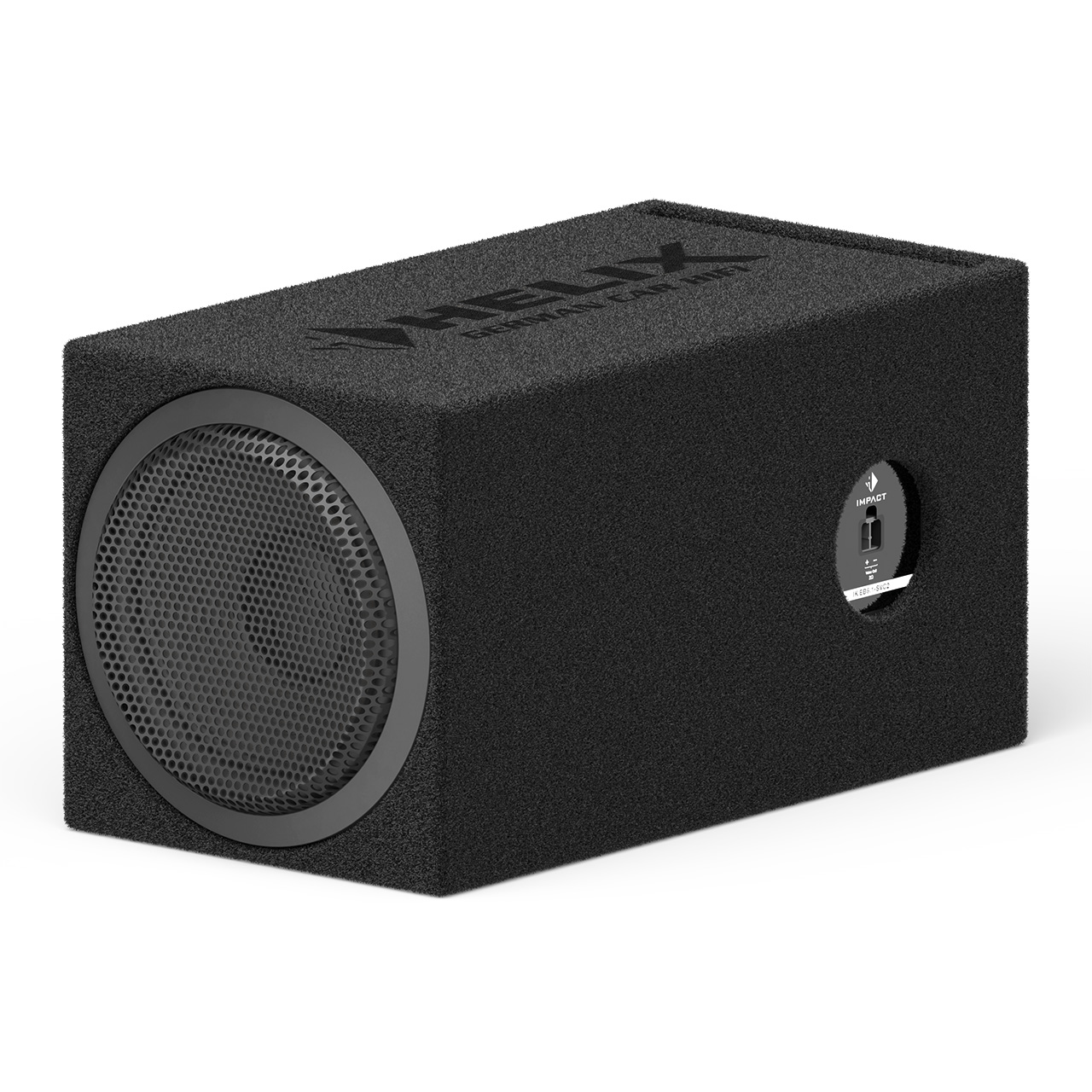

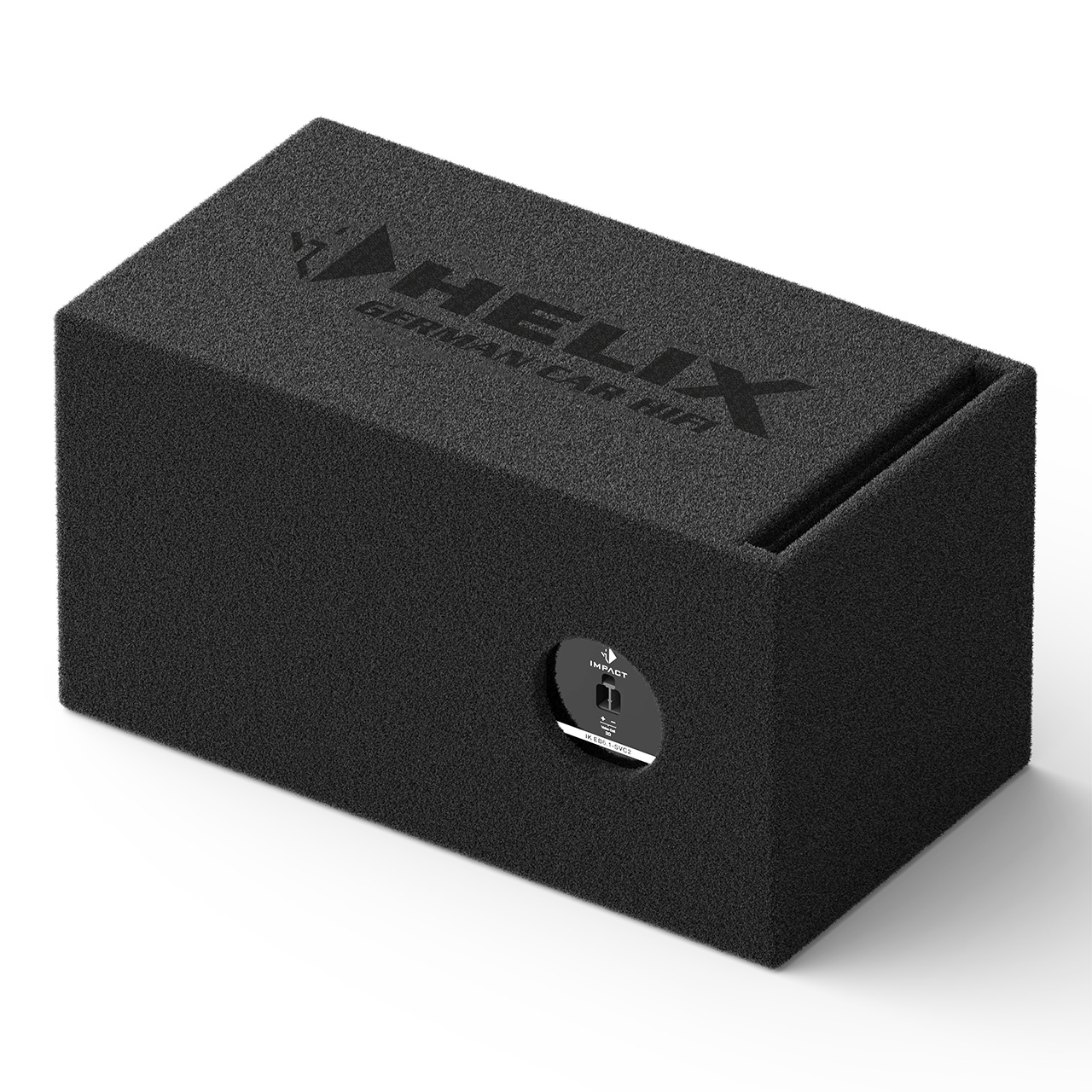

HELIX IK EB6.1-SVC2
EAN: 4057204336035
IK EB6.1-SVC2
6″ valmiskoteloitu subwoofer
Todella pienikokoinen
Refleksikotelo
1 x 2 Ohm
150W
Lue lisää
199,00 €
Tuotekuvaus
Tekniset tiedot
Ohjekirjat
Matchin IK -sarjan 6″ subwoofer refleksi -kotelossa on todella pienikokoinen ratkaisu bassontarpeeseen.
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle.
Sopii pieneenkin tavaratilaan tai vaikka pakettiauton penkin alle.
Technical data
Power handling RMS P 150 Watts
Recommended amplifier power RMS 75 - 150 Watts
Impedance z 1 x 2 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 48 Hz
Sensitivity SPL 92 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D) 175 x 175 x 340 mm /
6.9 x 6.9 x 13.4“
Integrated subwoofer chassis HELIX IK W6-SVC2
Recommended DSP settings ″Self-define″ highpass 40 Hz / Q = 1.0
EQ filter: 55 Hz / Q = 2.0 / -2 dB
Scope of delivery
1 x Vented enclosure subwoofer HELIX IK EB6.1-SVC2
Power handling RMS P 150 Watts
Recommended amplifier power RMS 75 - 150 Watts
Impedance z 1 x 2 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 48 Hz
Sensitivity SPL 92 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D) 175 x 175 x 340 mm /
6.9 x 6.9 x 13.4“
Integrated subwoofer chassis HELIX IK W6-SVC2
Recommended DSP settings ″Self-define″ highpass 40 Hz / Q = 1.0
EQ filter: 55 Hz / Q = 2.0 / -2 dB
Scope of delivery
1 x Vented enclosure subwoofer HELIX IK EB6.1-SVC2
