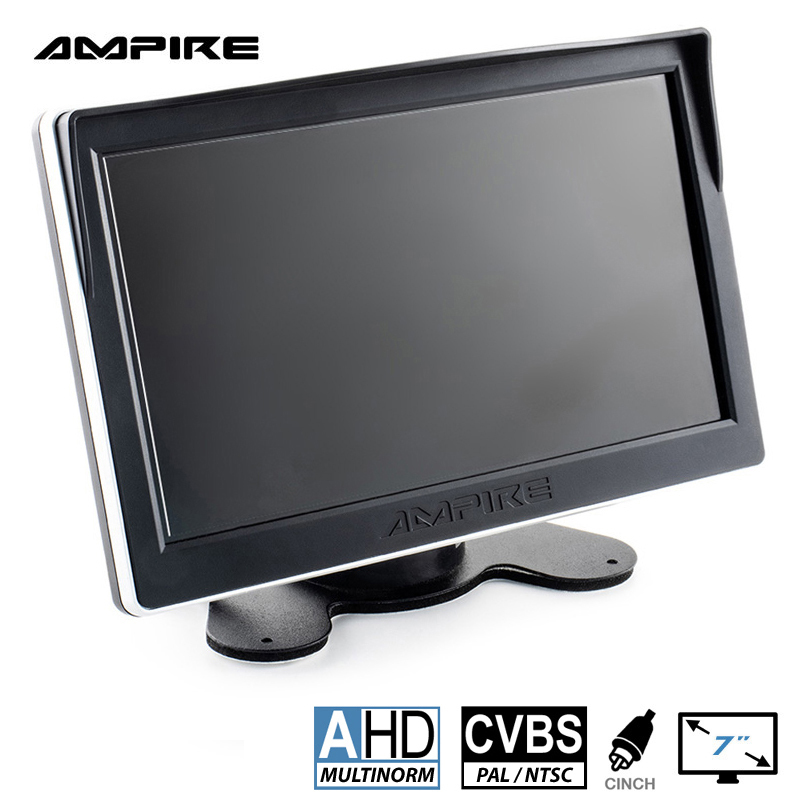

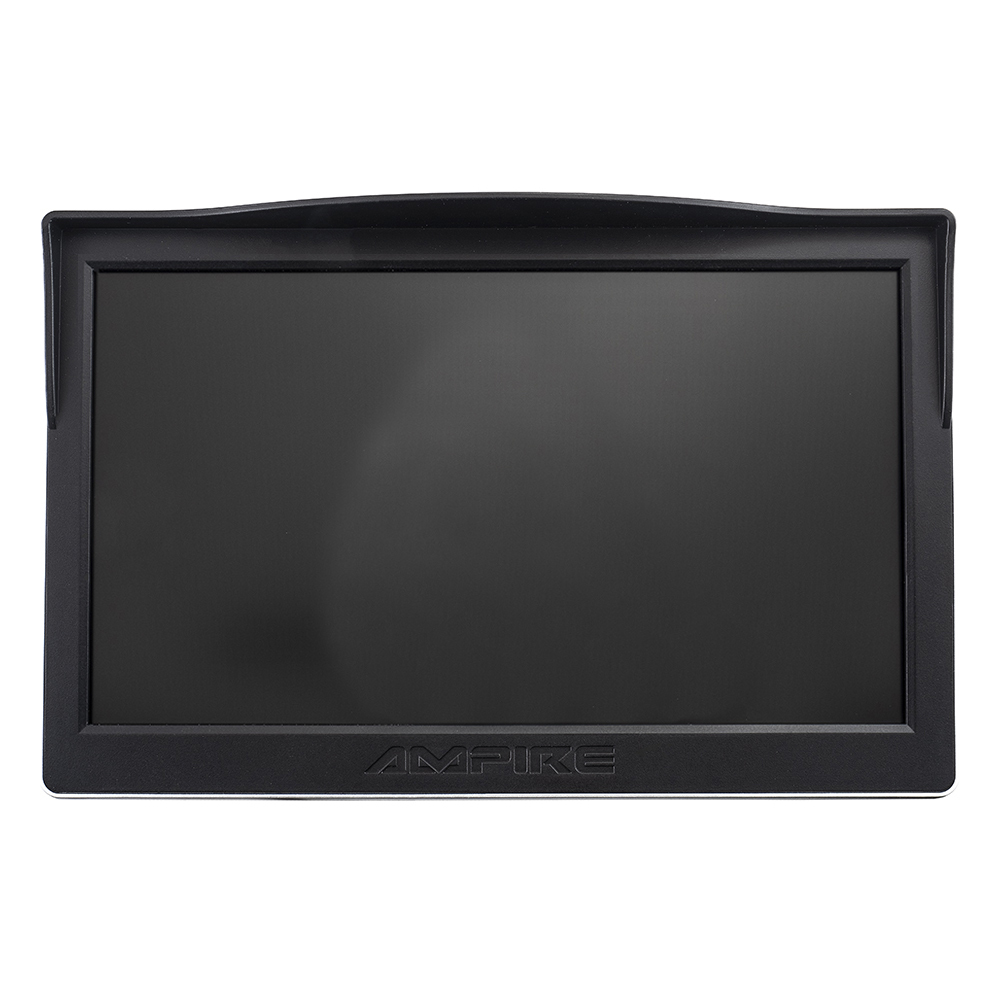

AMPIRE RVA071
RVA071
7″ näyttö
Kaksi video sisääntuloa
Resoluutio: 1024 x 600
Tukee 1080p-signaalia
Lue lisää
169,00 €
Tuotekuvaus
Tekniset tiedot
Korkearesoluutioinen 17,8 cm: n (7 ′′)TFT näyttö. Kaksi sisääntuloa, kameralle tai videosignaalille. Voit tietenkin myös kytkeä DVD-soittimen tai DVB-T-vastaanottimen videosignaalin viihdyttääkseen matkustajia ajon aikana
TECHNICAL DATA

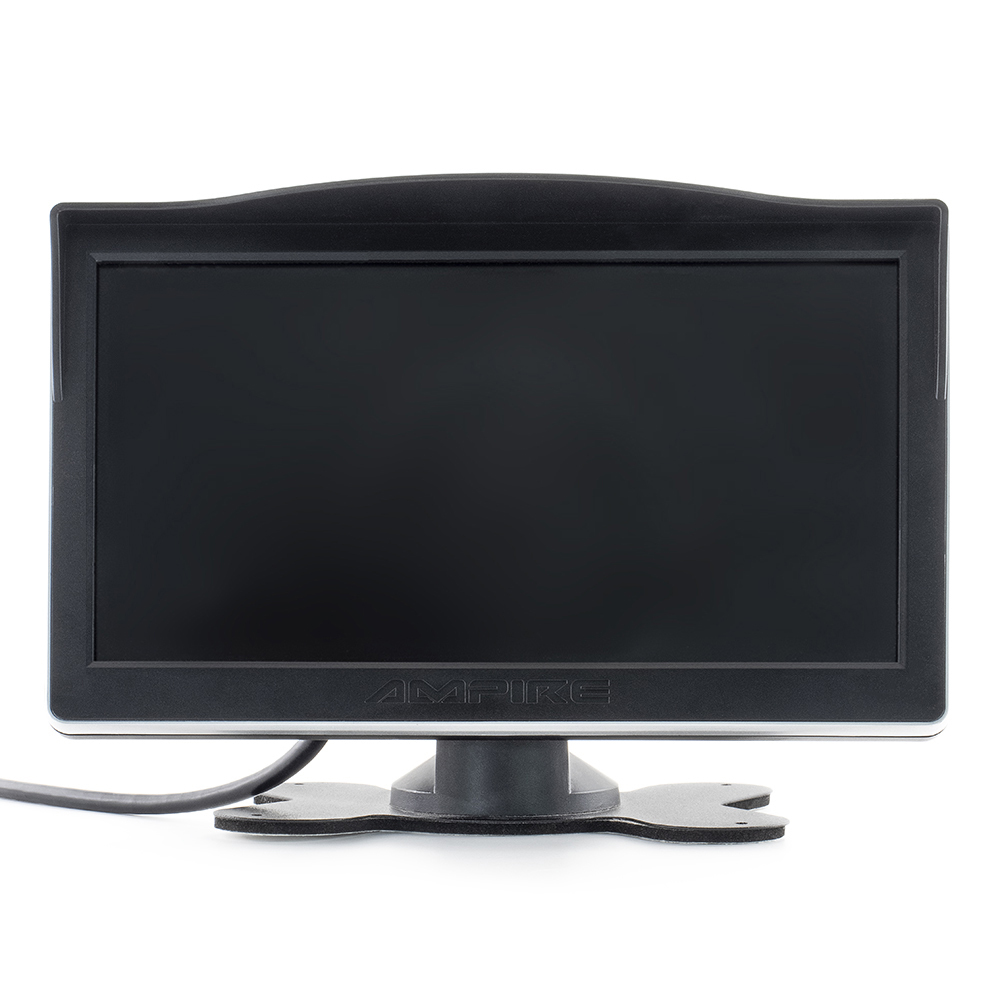

- 17.8cm (7′′) active matrix digital TFT LCD display (color)
- 2x video inputs
- AHD 720P, AHD 1080P compatible
- CVBS (FBAS) compatible
- Brightness 1000 cd/m²
- Contrast 500:1
- Viewing angle 85°/85°/85°/85° (L/R/O/U)
- LED backlight
- 16:9 screen format
- Extremely high resolution of 1024 x 600 pixels
- ON/OFF timer
- NTSC/PAL compatible

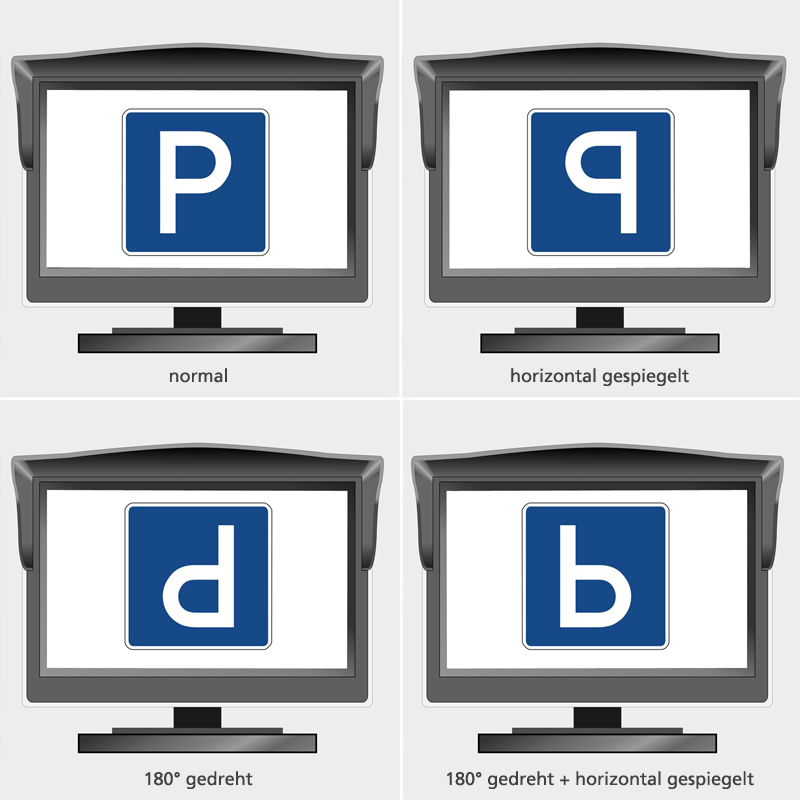

- Image reproduction normal/mirrored adjustable
- Image reproduction normal/rotated adjustable
- Guide lines adjustable/deactivatable
- 6 menu languages
- Automatic NTSC/PAL switching
- Automatic switch-on when operating voltage is applied

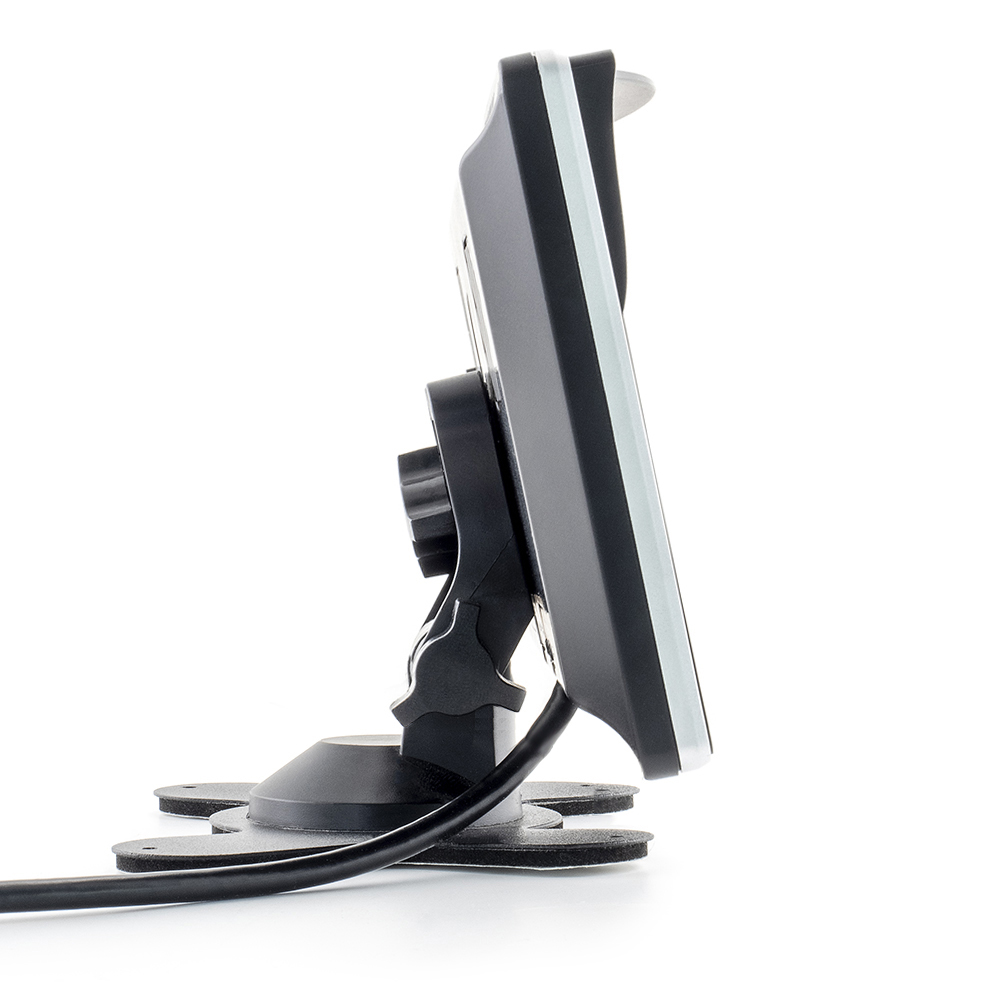

- Self-adhesive mounting base included
- Operating voltage 9-32 Volt DC
- Power consumption (on) 250mA@12VDC
- Quiescent current consumption (ignition on) 180mA@12VDC
- Operating temperature -20° to 70°C
- Storage temperature -30° to 80°C
- Dimensions 180 x 115 x 20mm
- Weight 304g
- Monitors are subject to ISO 9241-307, pixel error class II
- Protection class IP51
WIRING
- RED: Ignition 12-24 Volt DC (no continuous plus)
- BLACK: Ground

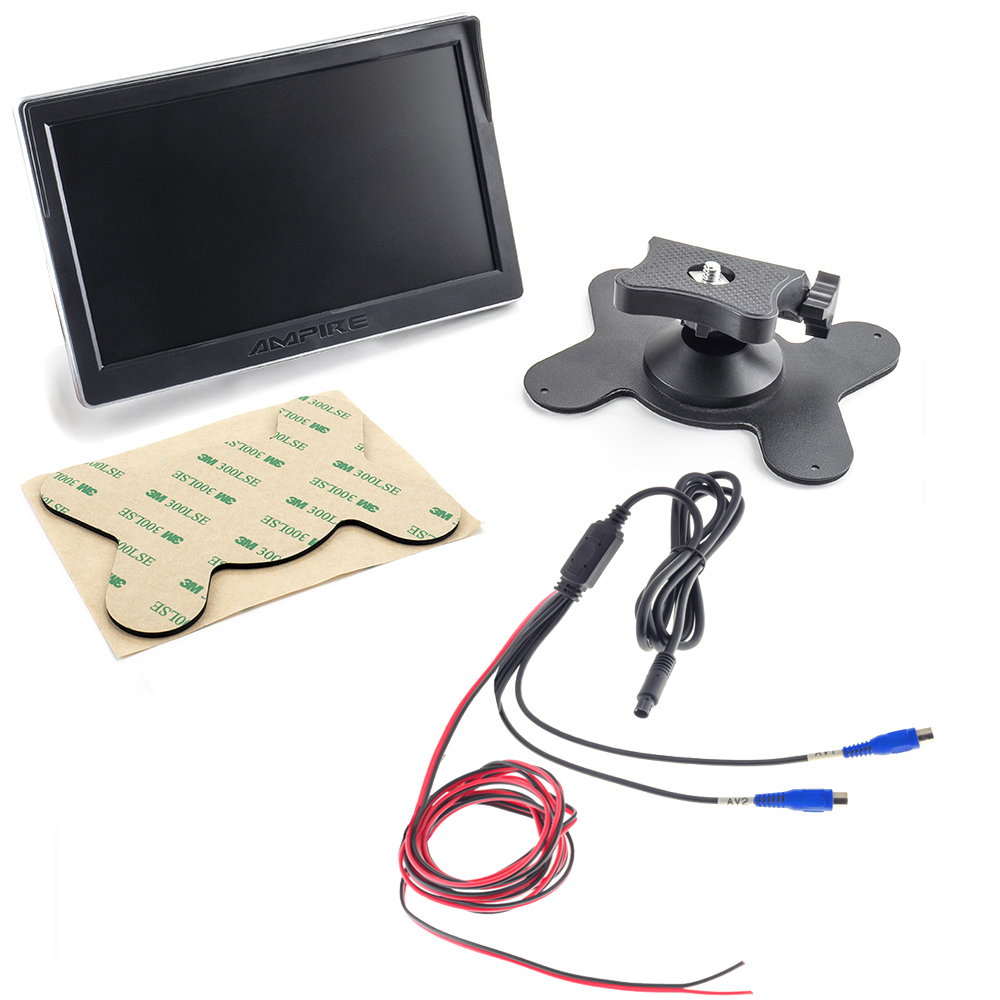

SCOPE OF SUPPLY
- 7″ (17.8cm) TFT monitor

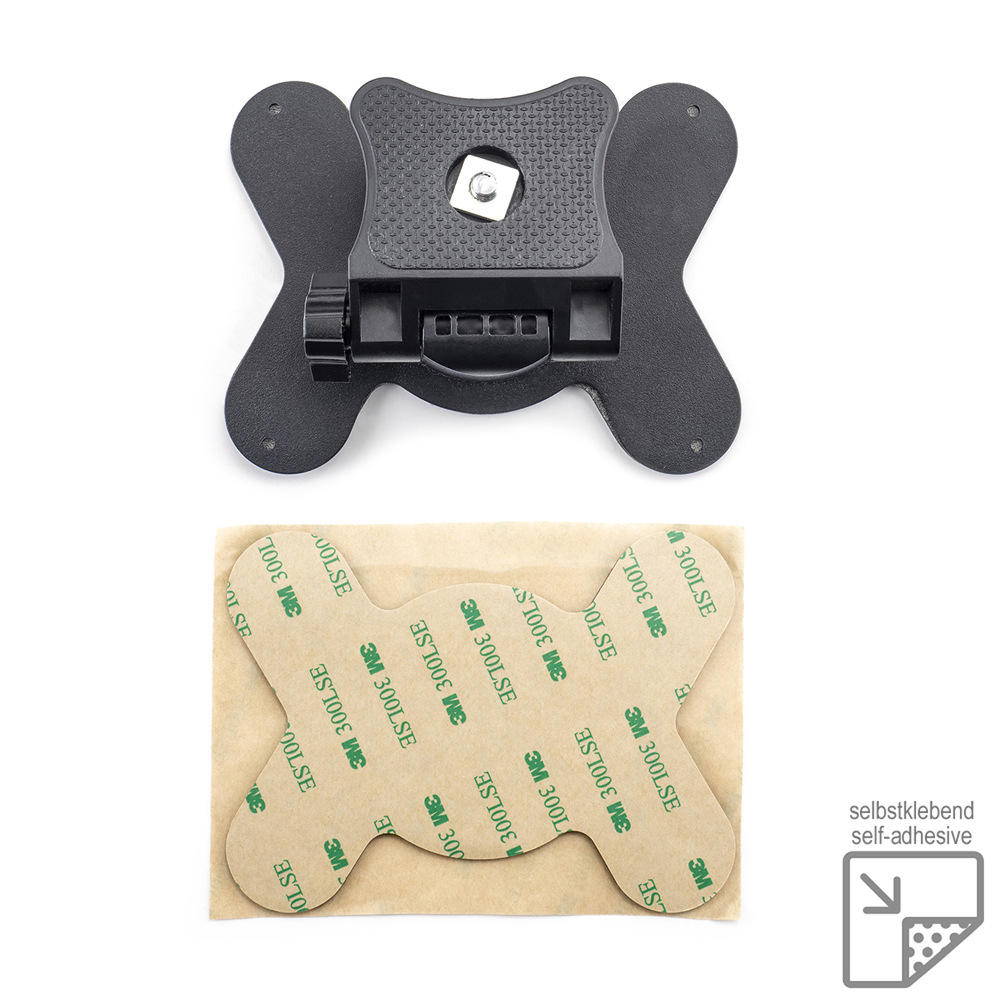

- Adhesive base mount

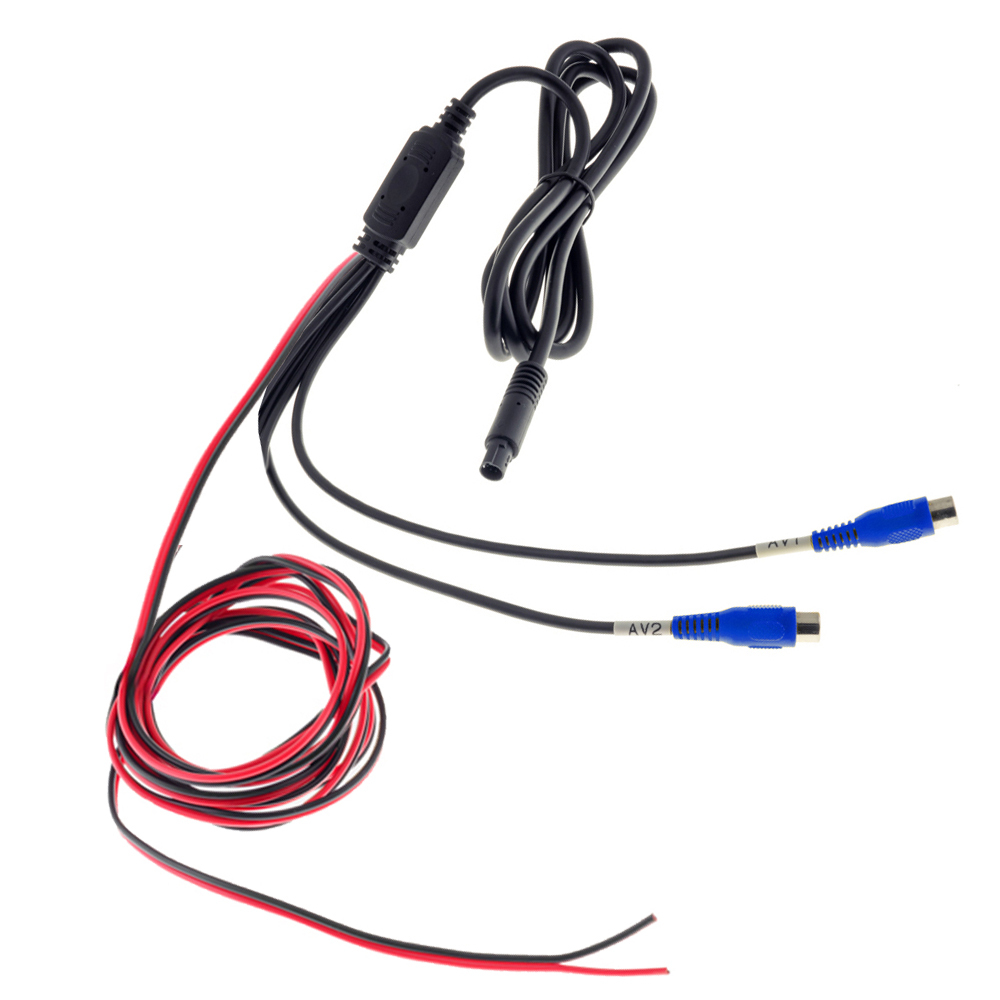

- Connection cable
